Scan Tool Output Controls

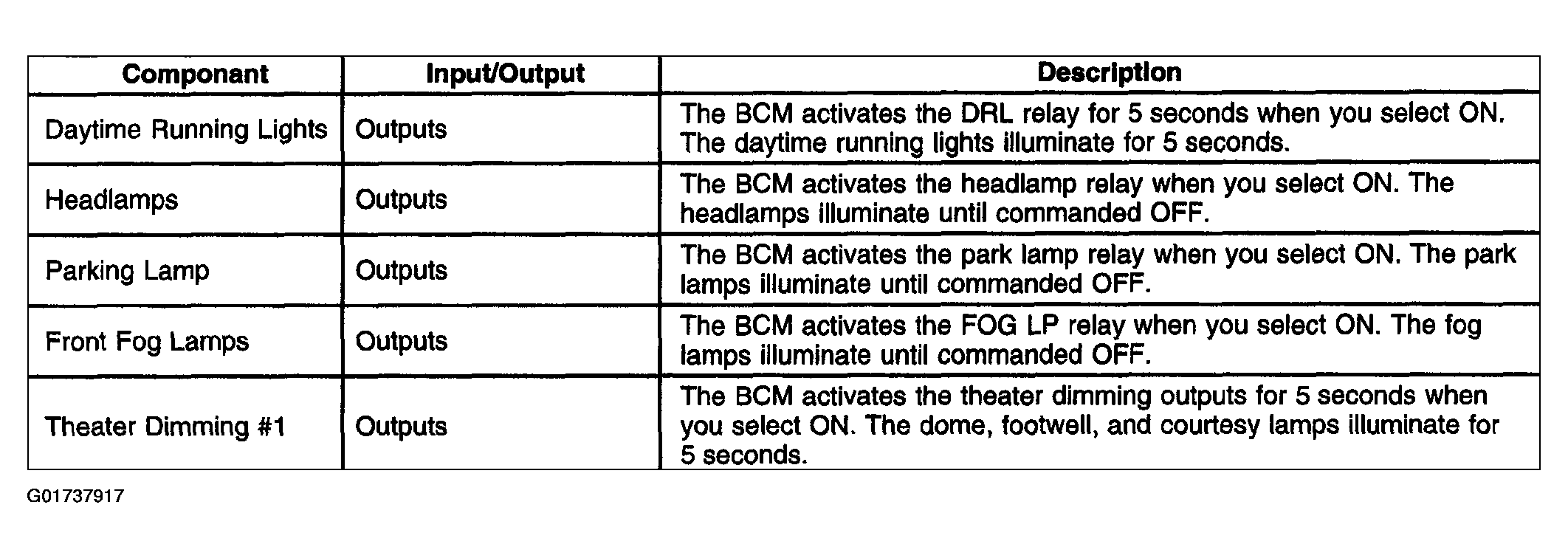

Fig 1: Body Control Module (BCM) Scan Tool Output Controls

G01737917

Courtesy of GENERAL MOTORS CORP.
