Removal Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the tilt wheel lever (4). Refer to TILT LEVER REPLACEMENT - ON VEHICLE .
  2. Remove the driver knee bolster trim panel. Refer to INSTRUMENT PANEL ACCESSORY TRIM PLATE & KNEE BOLSTER .
  3. Separate and remove the upper (1) and lower (3) steering column covers.

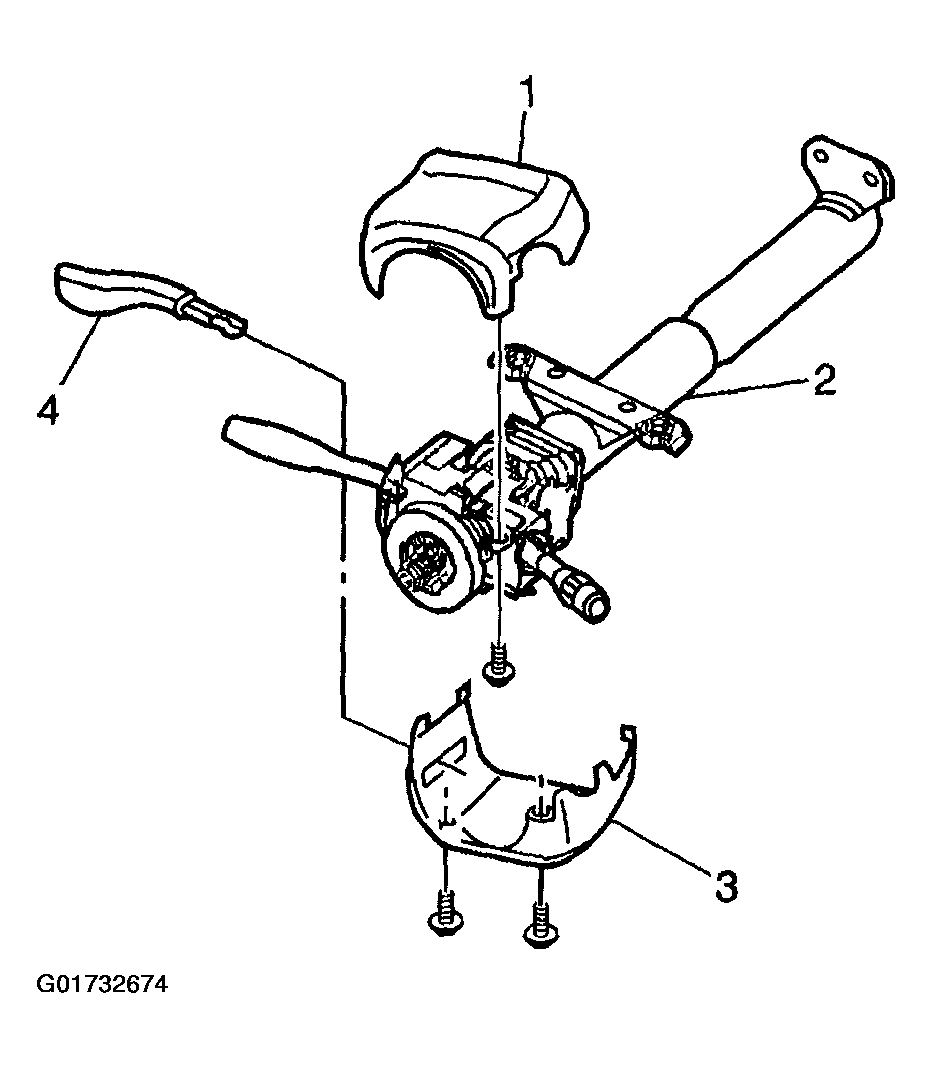

    Fig 1: Removing Tilt Wheel Lever & Steering Column Covers
    G01732674Courtesy of GENERAL MOTORS CORP.
  4. Disconnect the electrical connector from the wiring harness.
  5. Release the upper and lower retaining clips and slide the wiper/washer switch from the steering column lock module.

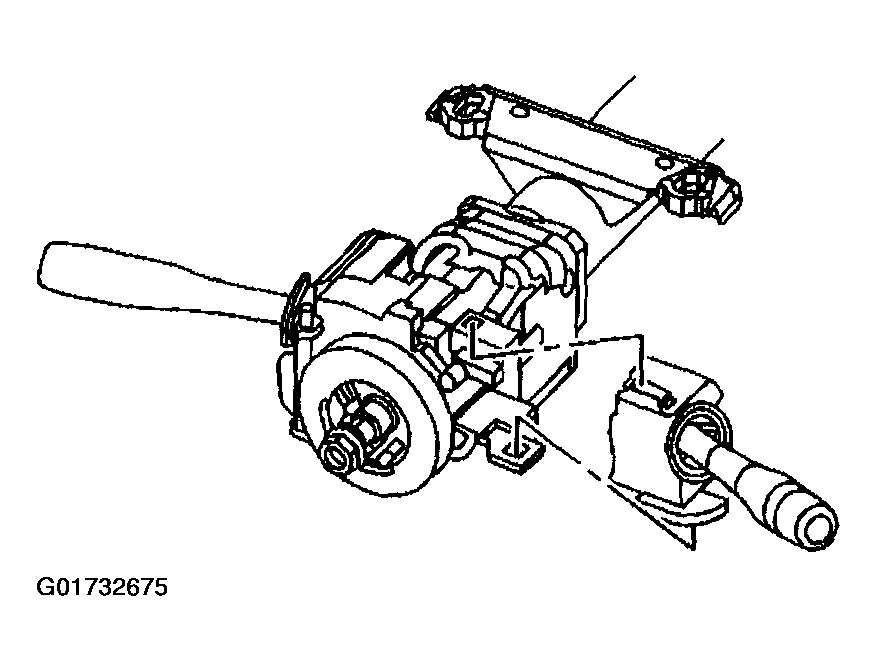

    Fig 2: Removing Wiper/Washer Switch
    G01732675Courtesy of GENERAL MOTORS CORP.
