Removal Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the washer solvent container. Refer to Washer Solvent Container Replacement .
  2. Disconnect the washer solvent level sensor electrical connector.

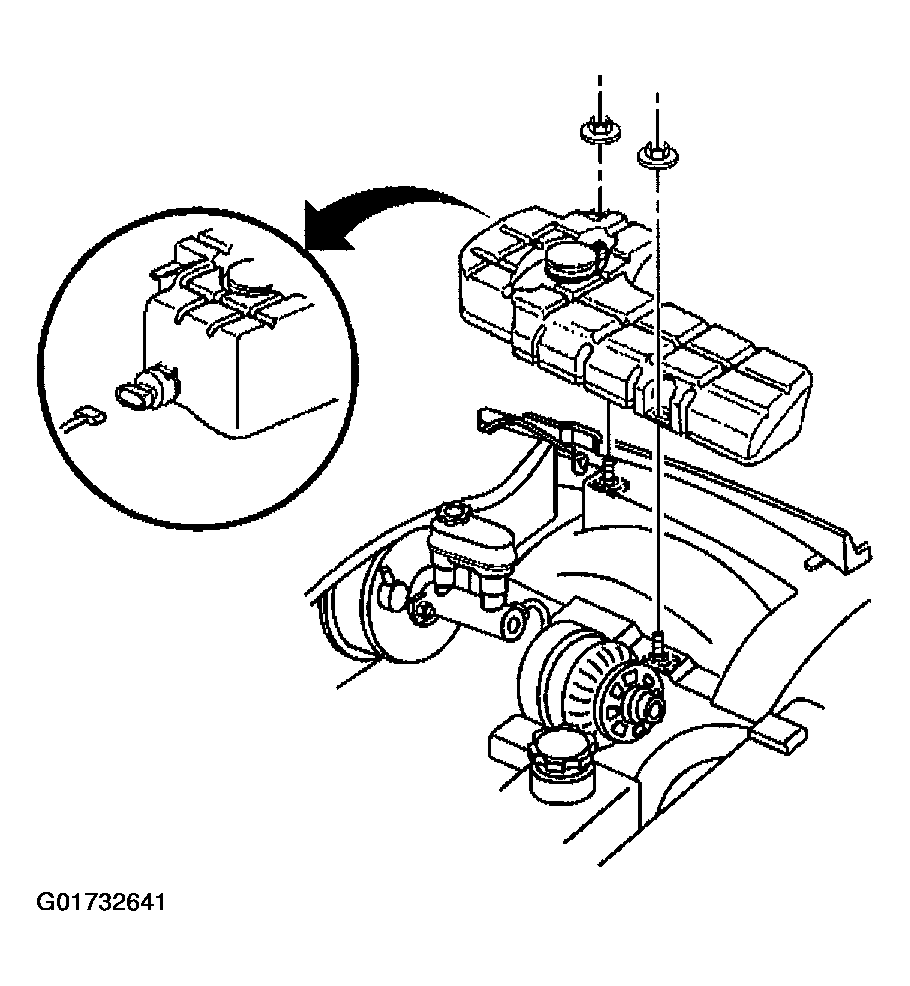

    Fig 1: Removing Washer Solvent Container & Electrical Connector
    G01732641Courtesy of GENERAL MOTORS CORP.
  3. Using a small flat-bladed tool, remove the washer solvent level sensor from the washer solvent container.
    Fig 2: Removing Washer Solvent Level Sensor
    G01732642Courtesy of GENERAL MOTORS CORP.
