Removal Procedure

WARNING: This page is about a different car, the 2005 Saturn L300. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the storage compartment. Refer to Compartment Replacement - Instrument Panel (I/P) in Instrument Panel, Gages, and Console.
    2. Fig 1: Removing Retainer From Heater Outlet Assembly On Right Side To Remove Outlet
    GM897891Courtesy of GENERAL MOTORS CORP.
  2. Remove the right side heater duct retainer.
  3. Remove the right side heater duct.

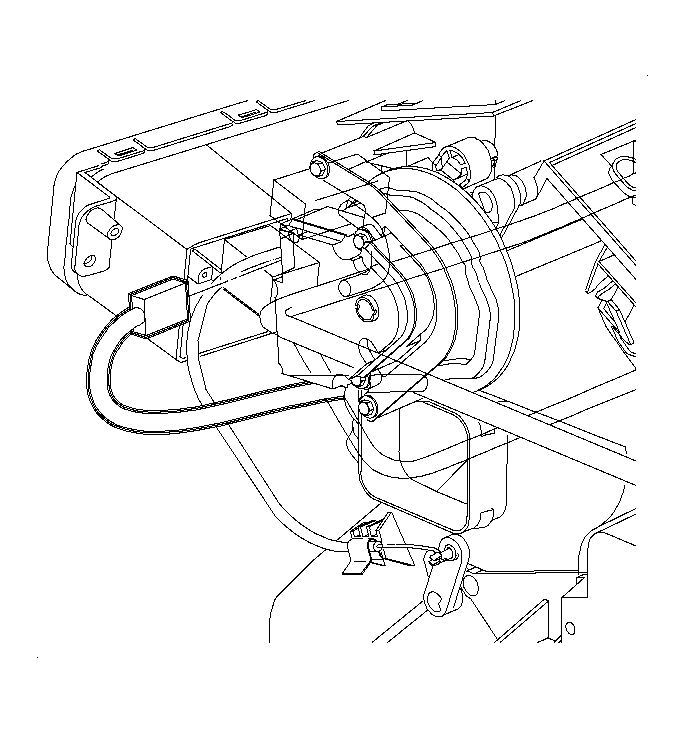

    4. Fig 2: Removing/Installing Mode Actuator Electrical Connector
    GM892662Courtesy of GENERAL MOTORS CORP.
  4. Disconnect the electrical connector from the mode actuator.
    5. Fig 3: Removing/Installing Mode Actuator
    GM892670Courtesy of GENERAL MOTORS CORP.
  5. Remove the mode actuator screws.
  6. Remove the mode actuator.
    7. Fig 4: Removing/Installing Mode Cam
    GM892694Courtesy of GENERAL MOTORS CORP.
  7. Remove the mode cam.
