Steering Wheel & Column Component Views

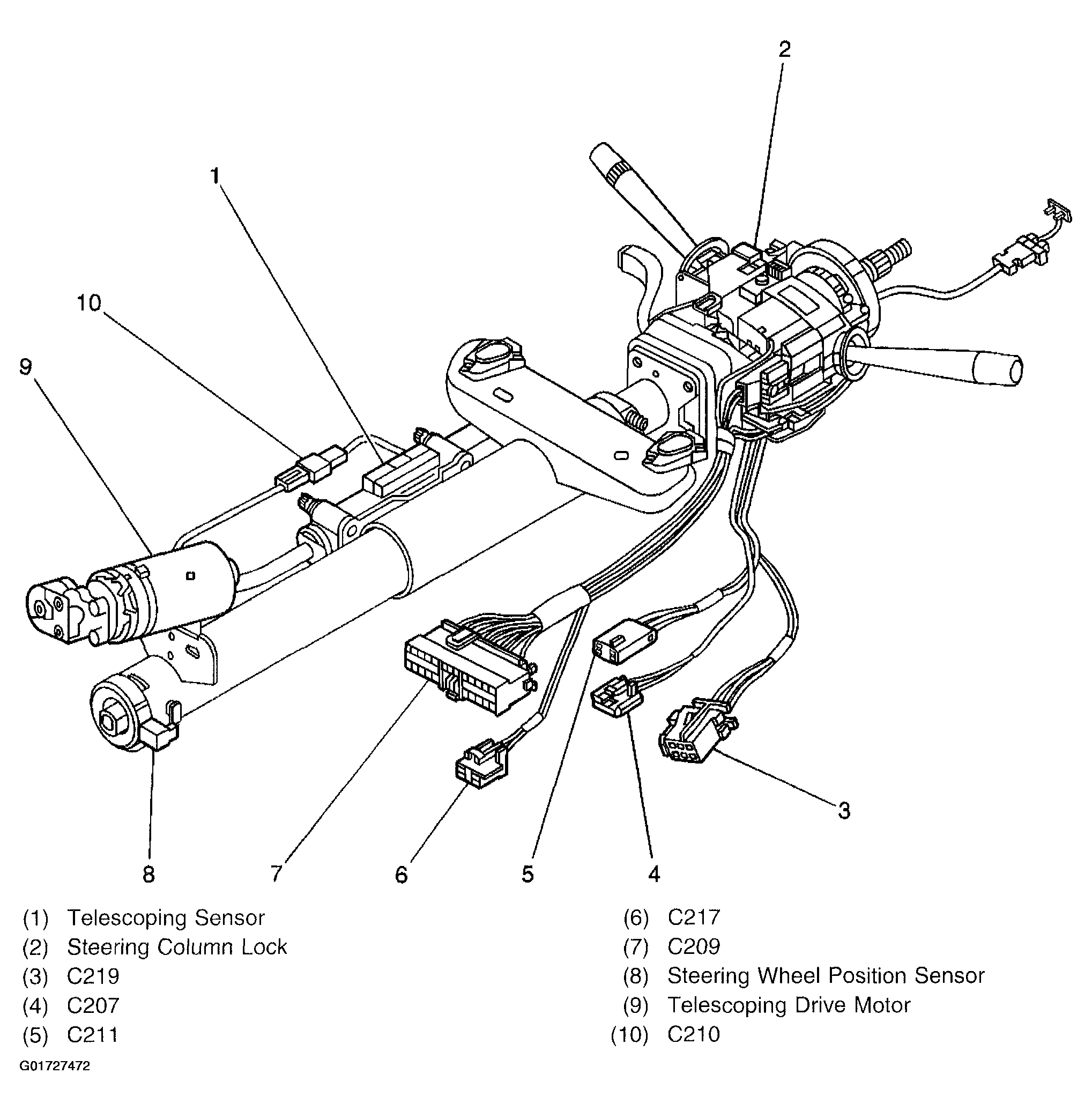

Fig 1: Steering Column
G01727472Courtesy of GENERAL MOTORS CORP.
Fig 2: Under RH Side of Dash
G01727473Courtesy of GENERAL MOTORS CORP.

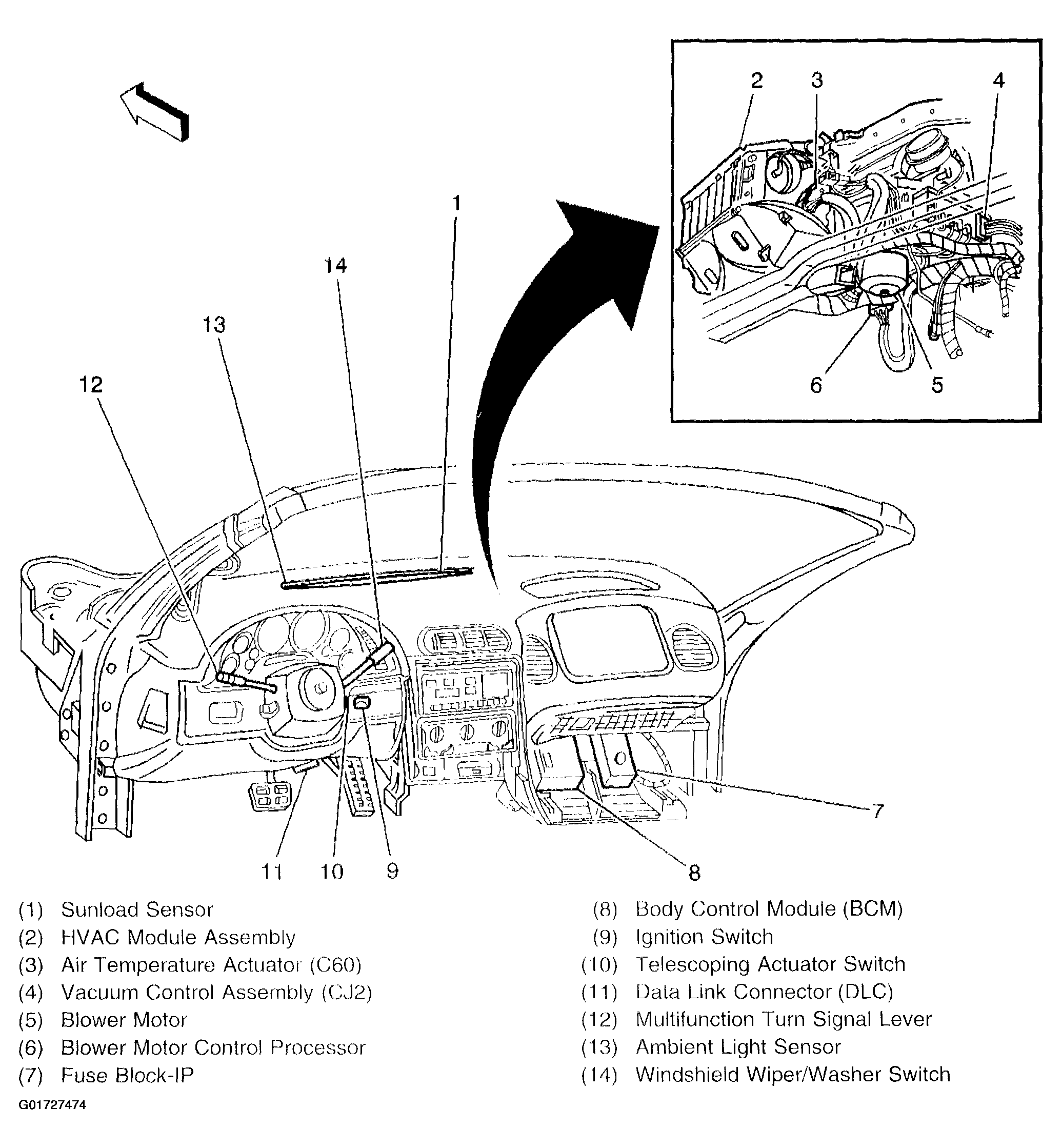

Fig 3: Instrument Panel
G01727474Courtesy of GENERAL MOTORS CORP.
