Steering Column Disassembled View (Telescoping)

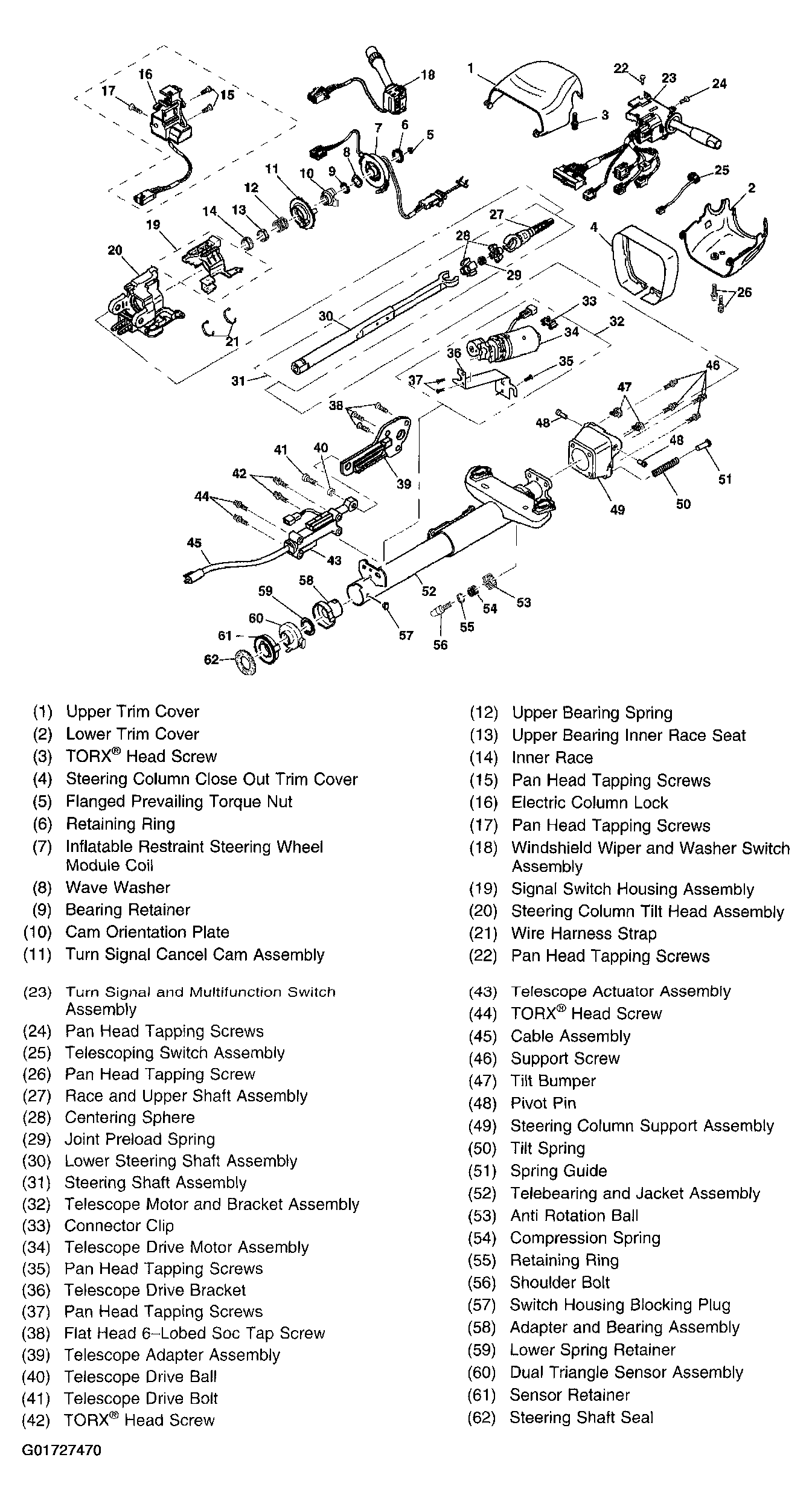

Fig 1: Telescoping Steering Column

G01727470

Courtesy of GENERAL MOTORS CORP.
