Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front floor console. Refer to CONSOLE REPLACEMENT - FRONT FLOOR in Instrument Panel, Gages and Console.
  2. Disconnect the shift control bulb/socket from the shift control.
  3. Remove the bulb from the socket.

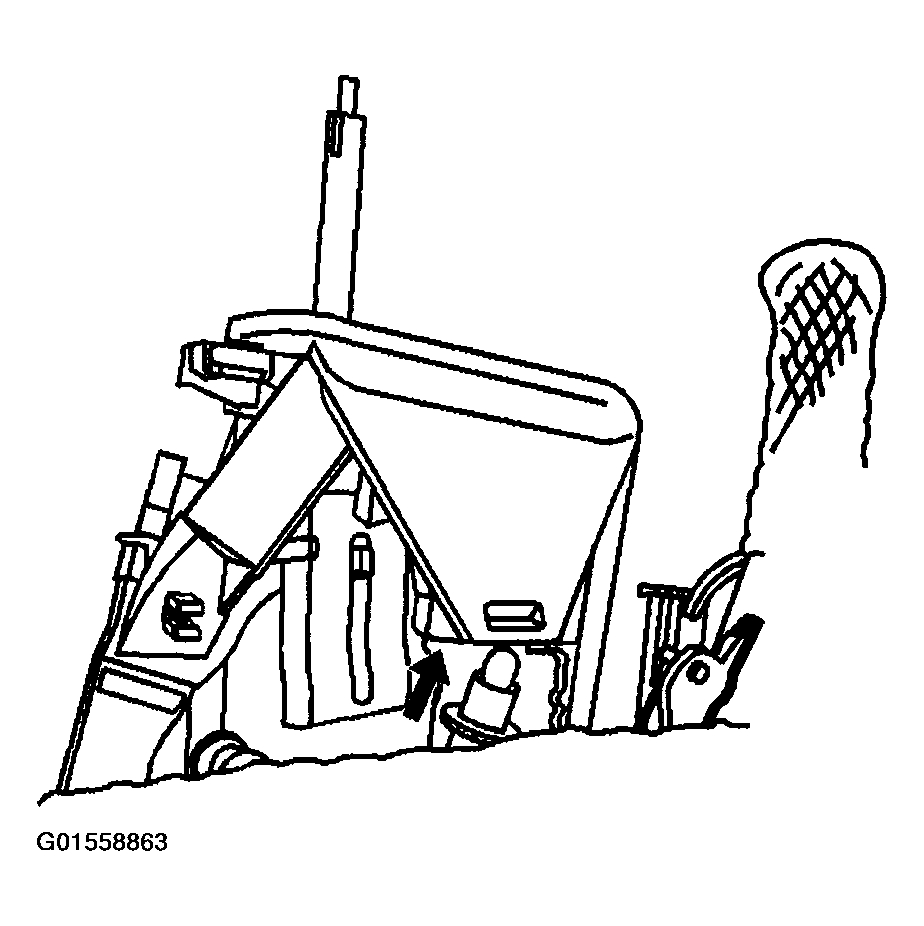

    Fig 1: Removing Bulb From Socket
    G01558863Courtesy of GENERAL MOTORS CORP.
