Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the bulb to the socket.
  2. Connect the shift control bulb/socket to the shift control.
  3. Install the front floor console. Refer to CONSOLE REPLACEMENT - FRONT FLOOR in Instrument Panel, Gages and Console.

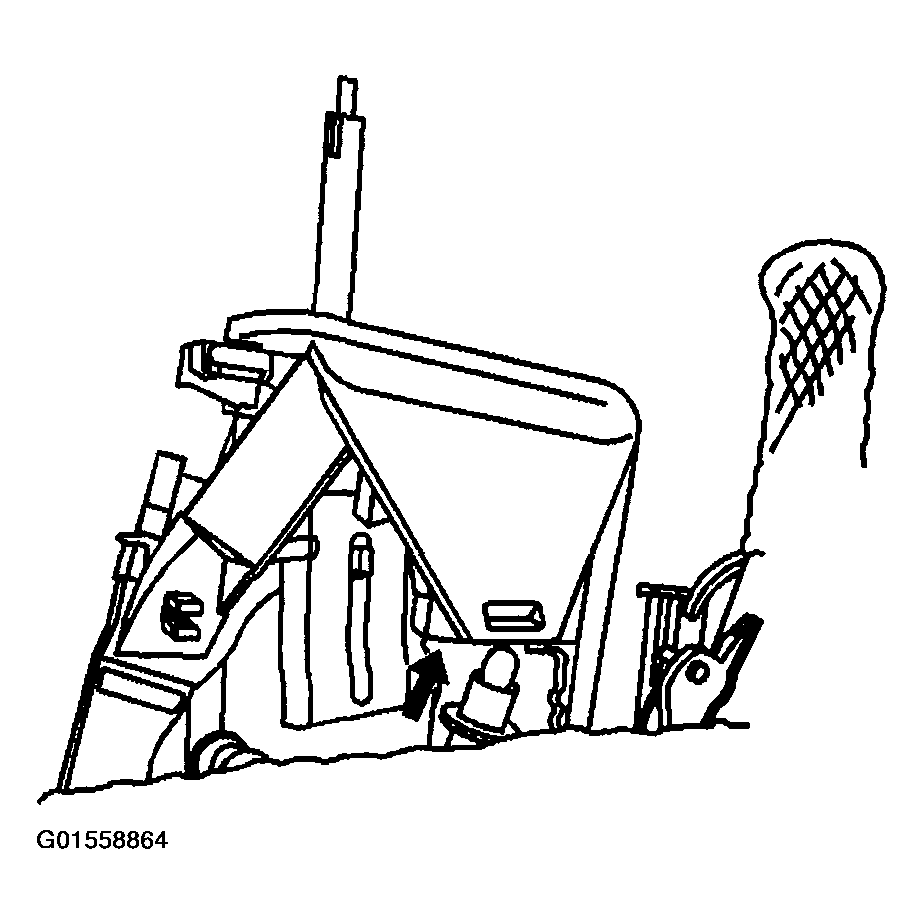

    Fig 1: Installing Bulb To Socket
    G01558864Courtesy of GENERAL MOTORS CORP.
