Transmission Reassembly: Notes
NOTE:

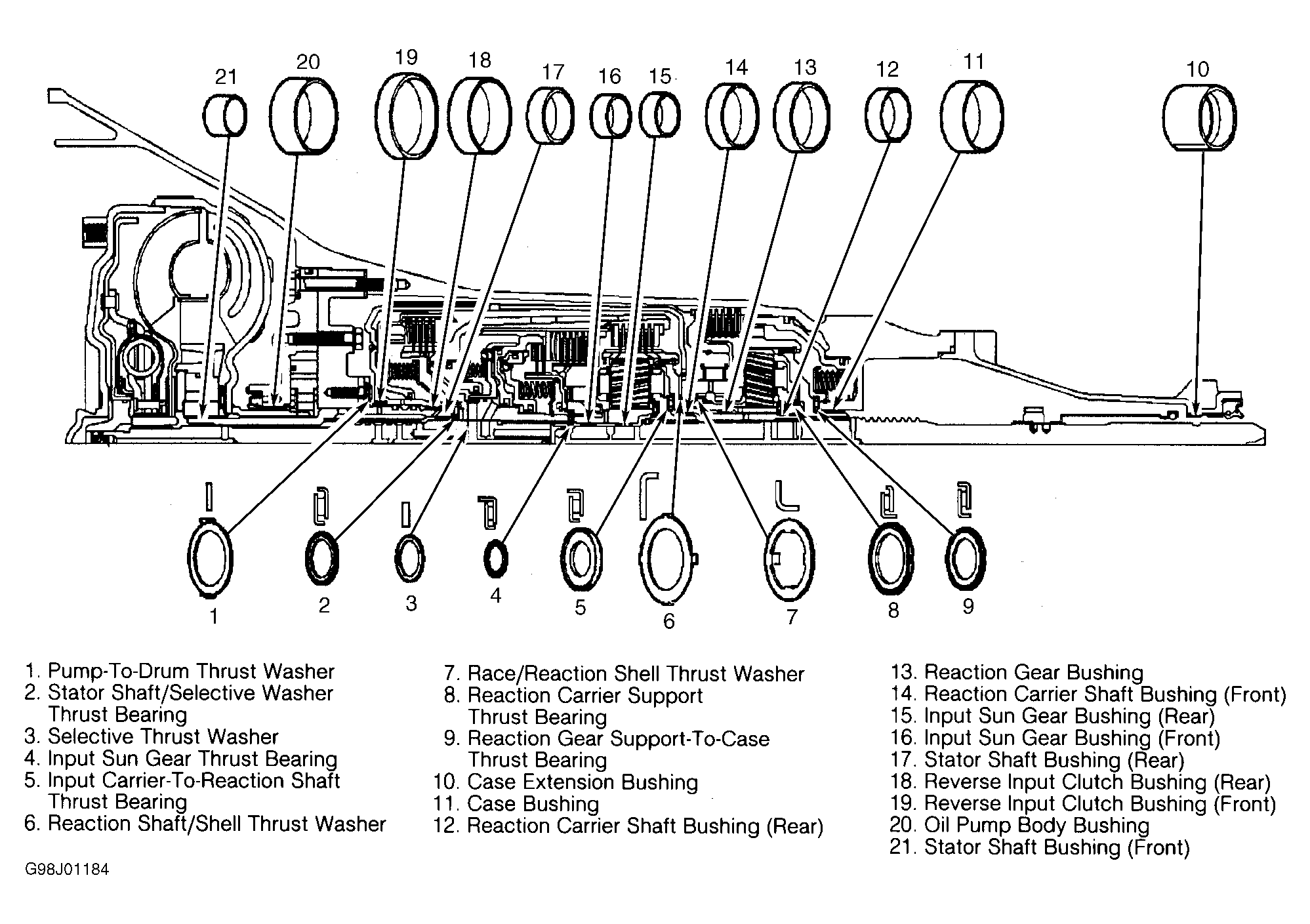

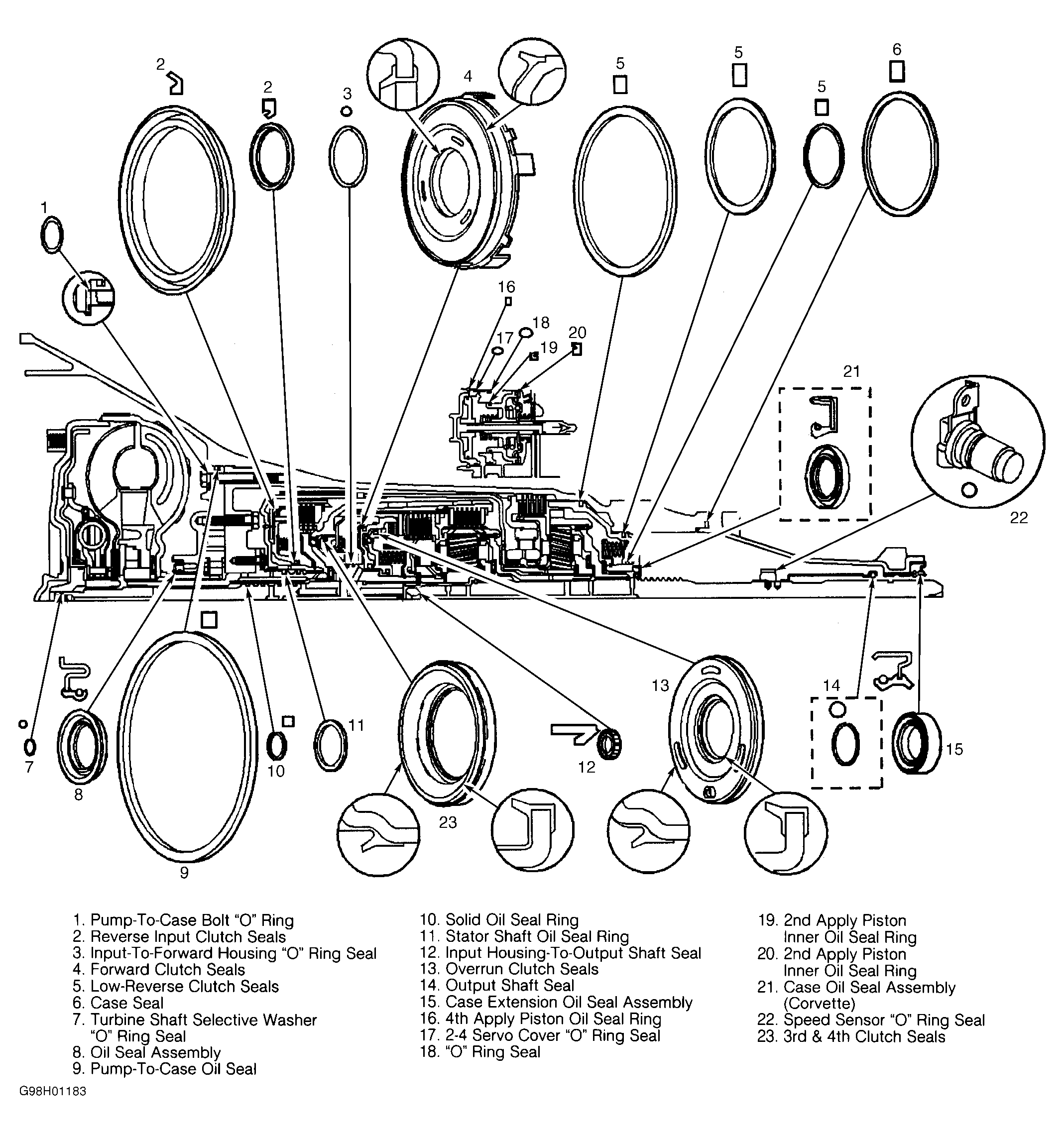

To identify bushing, seal, thrust bearing and thrust washer locations and direction, refer to appropriate illustration. See
Figure
and
Figure
.
