Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Safari and 2003 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the circuit board and terminal module.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the cover and 3 screws.

    Tighten

    Tighten the screws to 2.6 N.m (23 lb in).

  3. Install the wiper motor electrical connector.

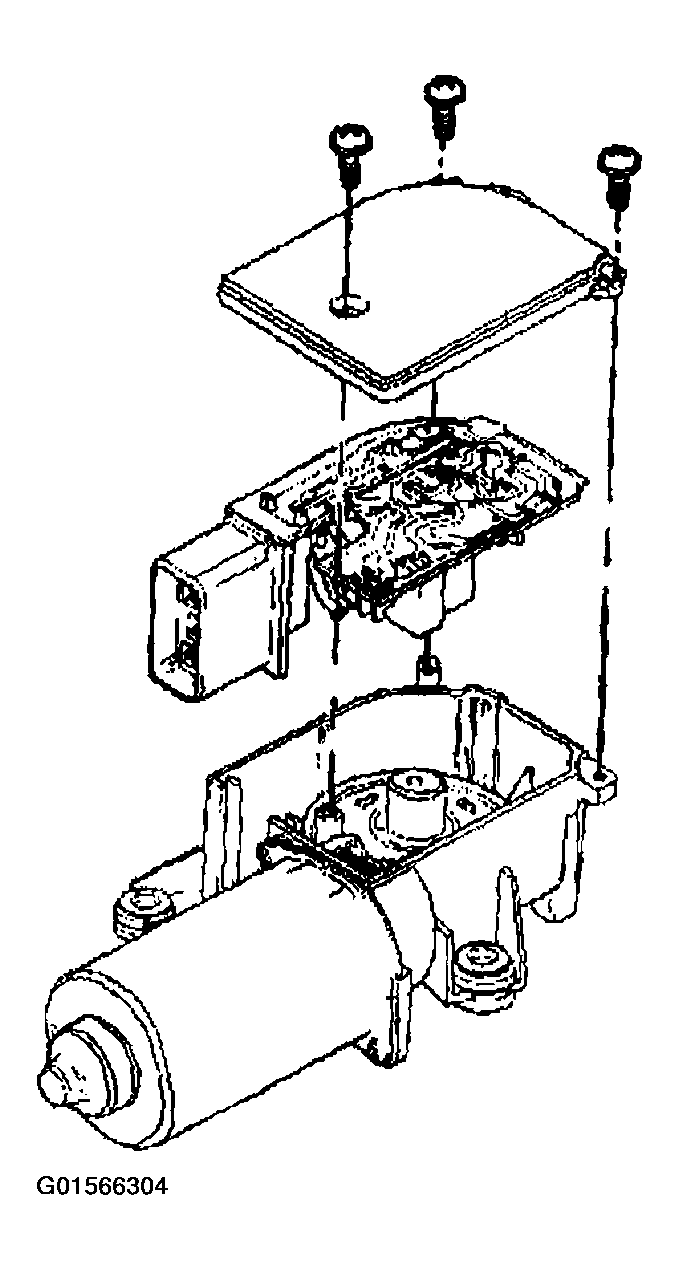

    Fig 1: Installing Circuit Board And Terminal Module (Front)
    G01566304Courtesy of GENERAL MOTORS CORP.
