Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Safari and 2003 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the bulb.
  2. Install the license lamp.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the license lamp screws.

    Tighten

    Tighten the license lamp screws to 2 N.m (18 lb in).

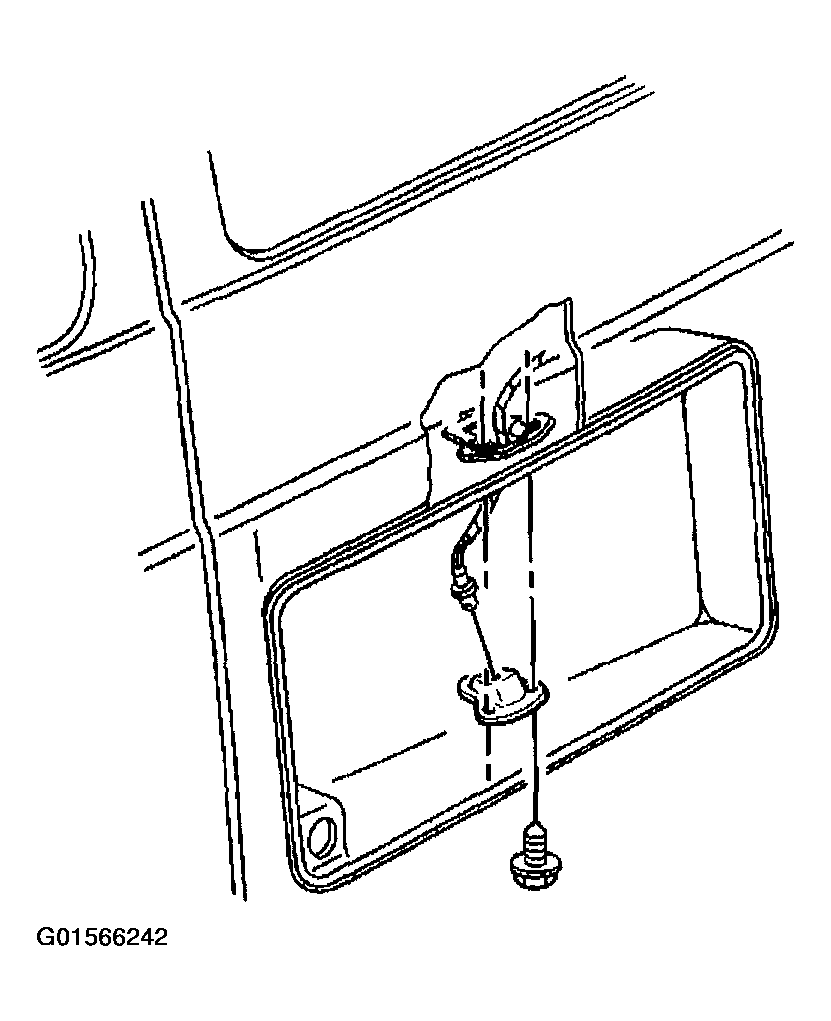

    Fig 1: Installing License Lamp
    G01566242Courtesy of GENERAL MOTORS CORP.
