Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Safari and 2003 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the electrical connector(s) to the back of the switch.
  2. Install the headlamp switch to the plate by snapping the switch into place.
  3. Install the instrument panel cluster trim plate. Refer to TRIM PANEL REPLACEMENT - INSTRUMENT PANEL (I/P) CLUSTER in Instrument Panel and Gages.
  4. Connect the battery negative cable.

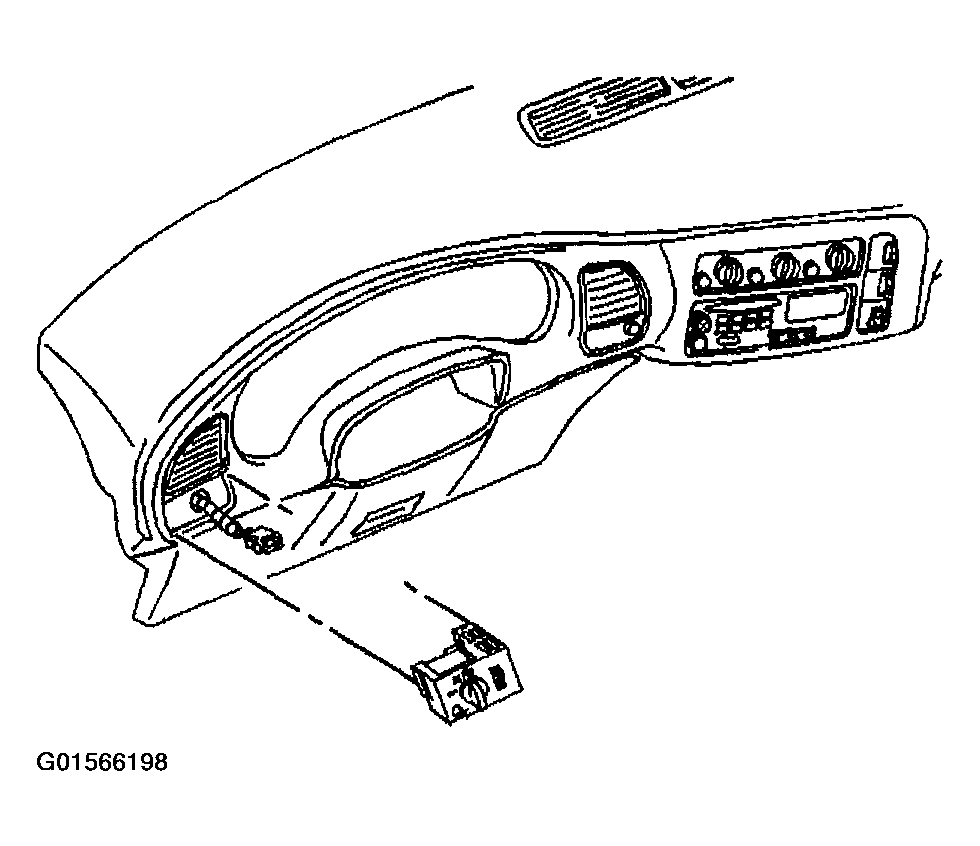

    Fig 1: Installing Headlamp Switch
    G01566198Courtesy of GENERAL MOTORS CORP.
