Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Safari and 2003 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the new lamp in the assembly.
  2. Install the lamp assembly into the cavity.
  3. Turn the lamp assembly in order to latch the assembly into place.

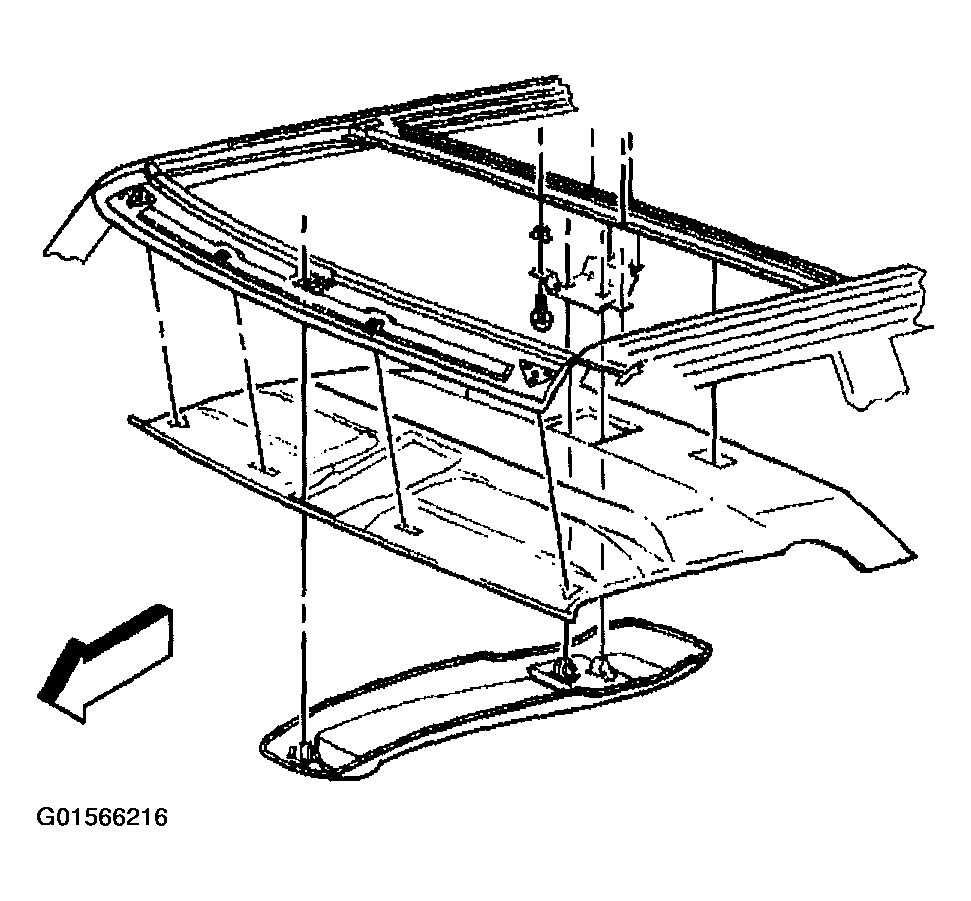

    Fig 1: Installing Courtesy Lamp (Overhead Console)
    G01566216Courtesy of GENERAL MOTORS CORP.
