HVAC Control Assembly: Installation

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.

Install HVAC control connectors and vacuum harness. Install retaining screw.
Connect all removed electrical connectors. Align all retaining clips, and install instrument cluster trim panel. Install battery cable.

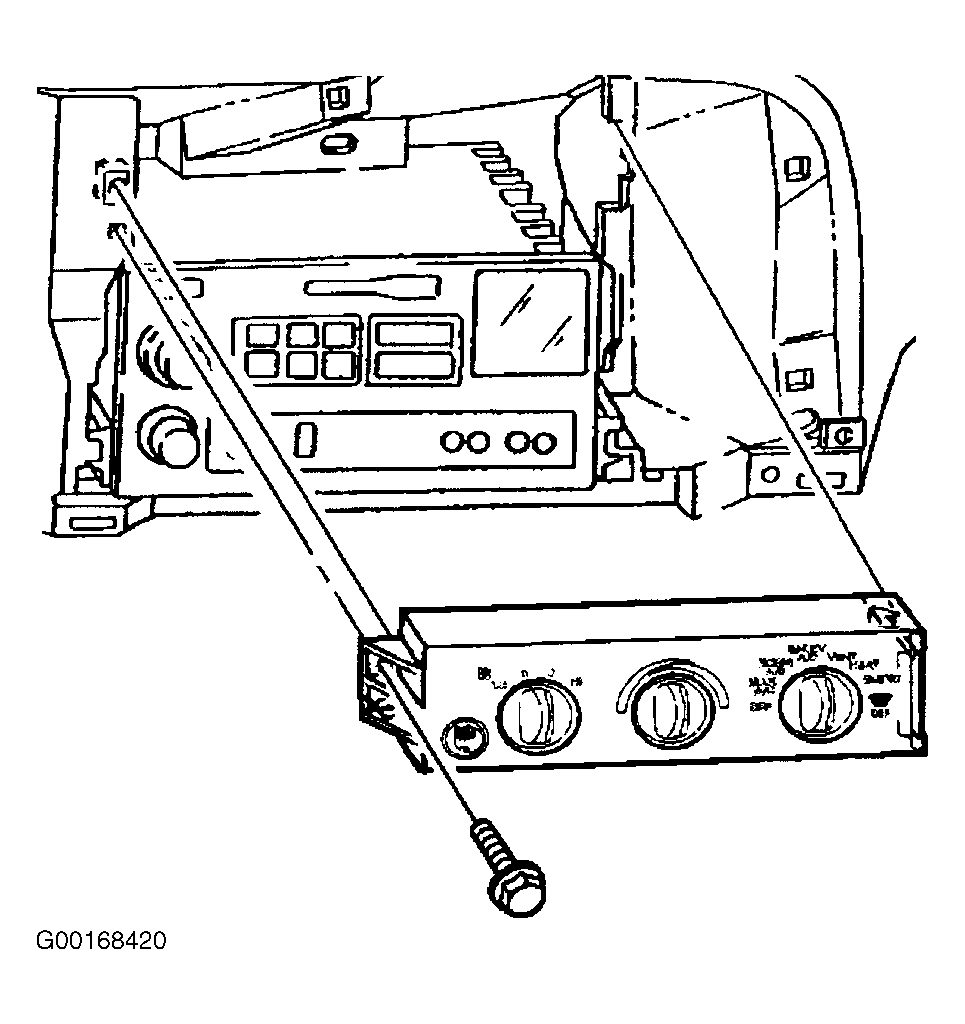

Fig 1: Removing & Installing HVAC Control Panel (Astro & Safari)

Courtesy of GENERAL MOTORS CORP.

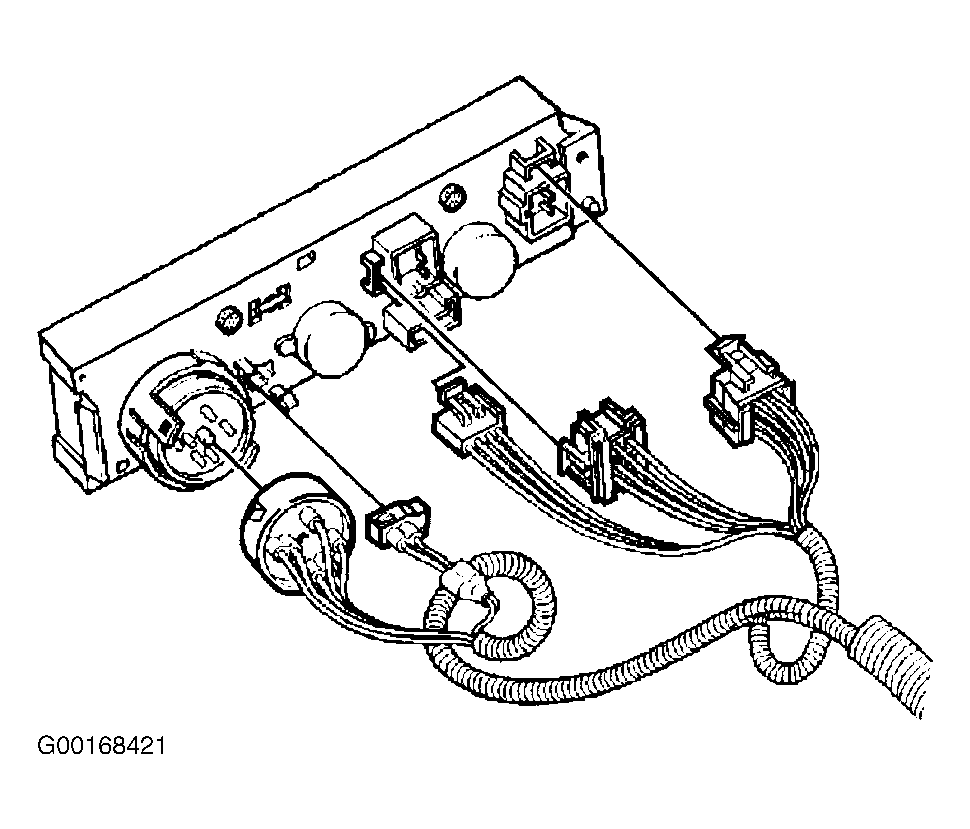

Fig 2: Removing & Installing HVAC Control Connector (Astro & Safari)

Courtesy of GENERAL MOTORS CORP.
