Installation Procedure

WARNING: This page is about a different car, the 2002 GMC Safari and 2002 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the retaining rail to the body.
    NOTE: Refer to Fastener Notice in GM VEHICLES CAUTIONS & NOTICES .
  2. Install the retaining rail screws.

    Tighten

    Tighten the retaining rail screws to 2 N.m (18 in. lb.).

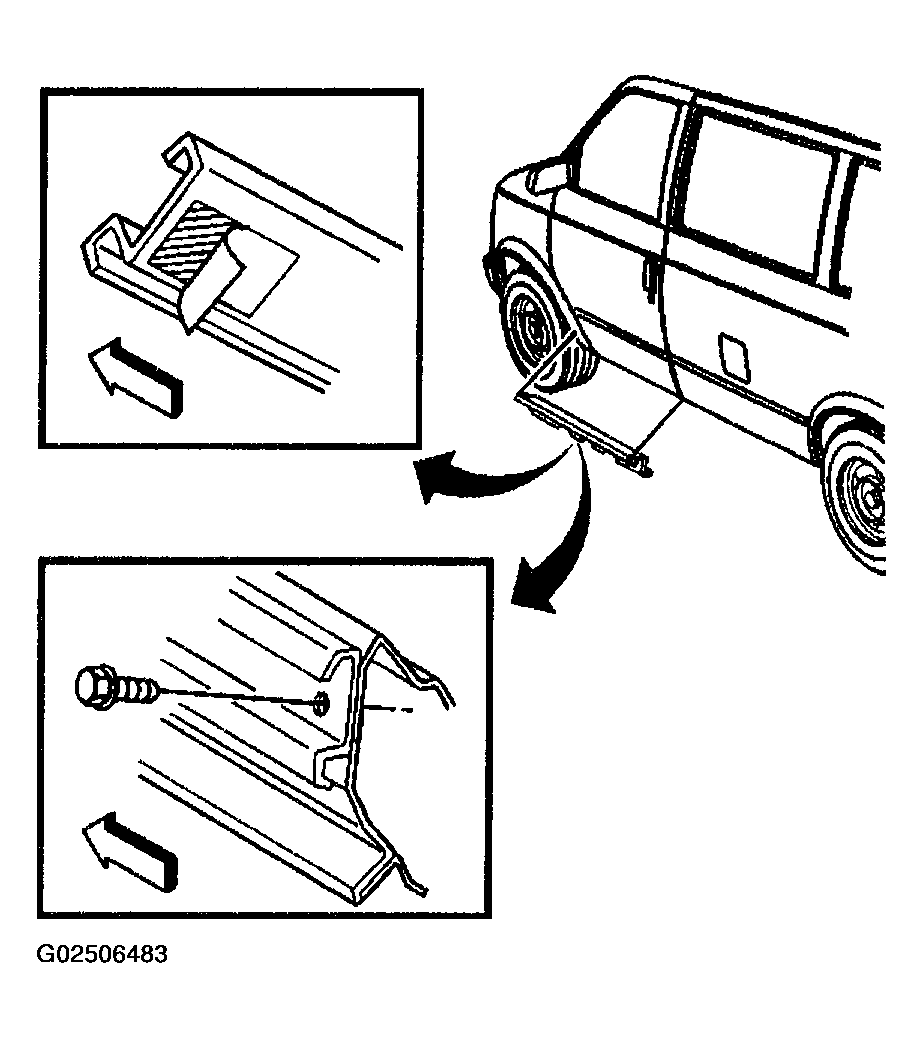

    Fig 1: Installing Retaining Rail
    G02506483Courtesy of GENERAL MOTORS CORP.
  3. Install the cladding to the vehicle.
  4. Install the nut on the back of the cladding to the stud.
    1. Tighten
    2. Tighten the nut to 7 N.m (62 in. lb.).
  5. Install the screws into the cladding.
    1. Tighten
    2. Tighten the screws to 2 N.m (18 in. lb.).
  6. Install the retainers into the wheelhouse extension flange.

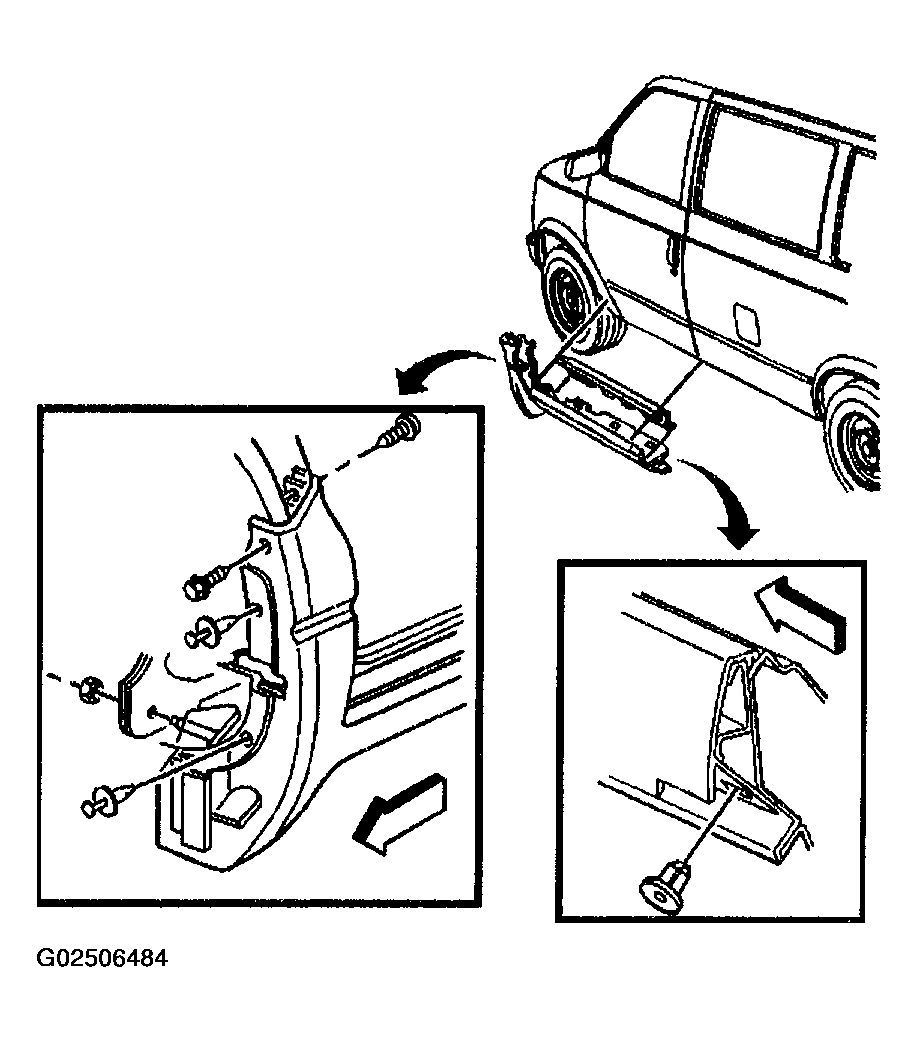

    Fig 2: Installing Left Rocker Panel Cladding To Retaining Rail
    G02506484Courtesy of GENERAL MOTORS CORP.
