Installation Procedure

  1. Install the sunshade to the vehicle.
    NOTE: Refer to FASTENER NOTICE in GM VEHICLES CAUTIONS & NOTICES.
  2. Install the sunshade retaining screws, connect the sunshade wiring harness (if equipped).

    Tighten

    Tighten the sunshade retaining screws to 2 N.m (18 in. lb.).

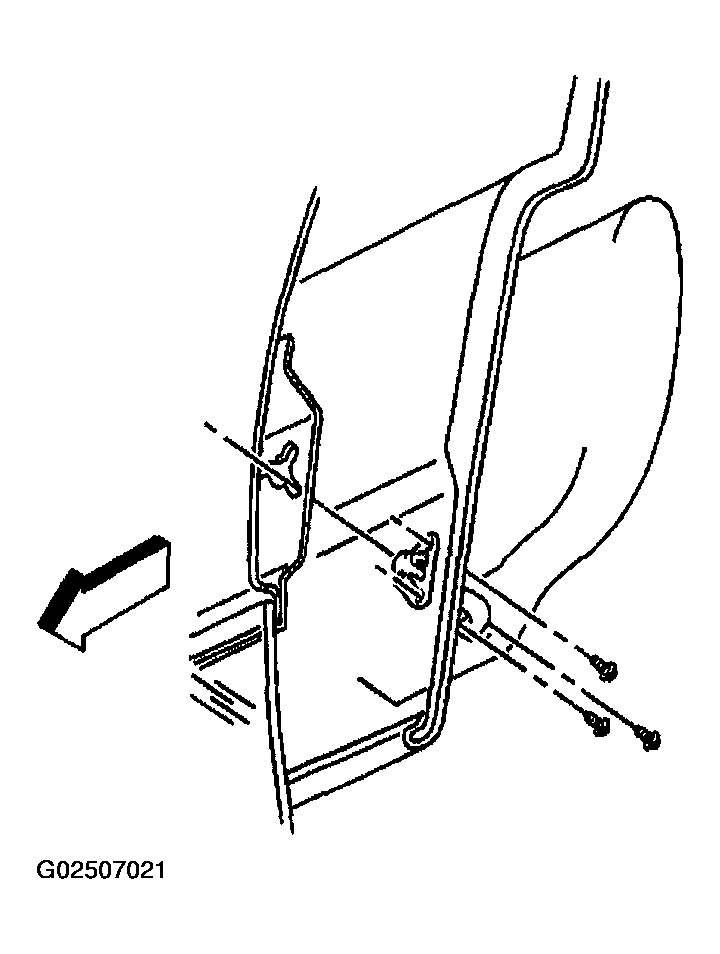

    Fig 1: Installing Sunshade
    G02507021Courtesy of GENERAL MOTORS CORP.
