On-Vehicle Deployment

WARNING: This page is about a different car, the 1998 Pontiac Trans Sport, 1998 Oldsmobile Silhouette, and 1998 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

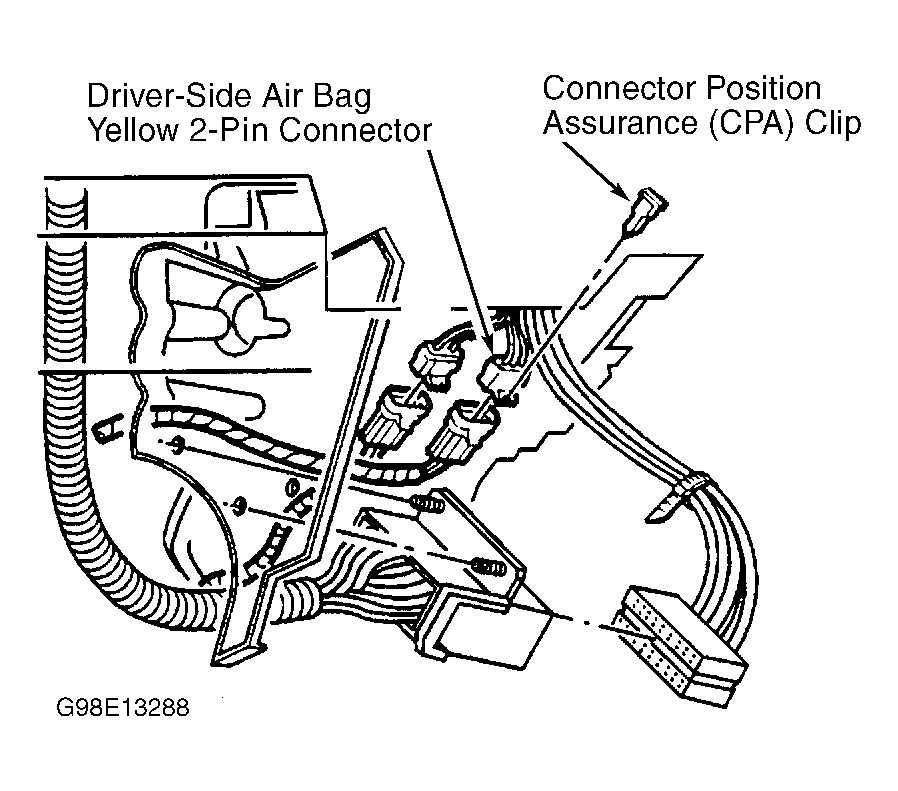

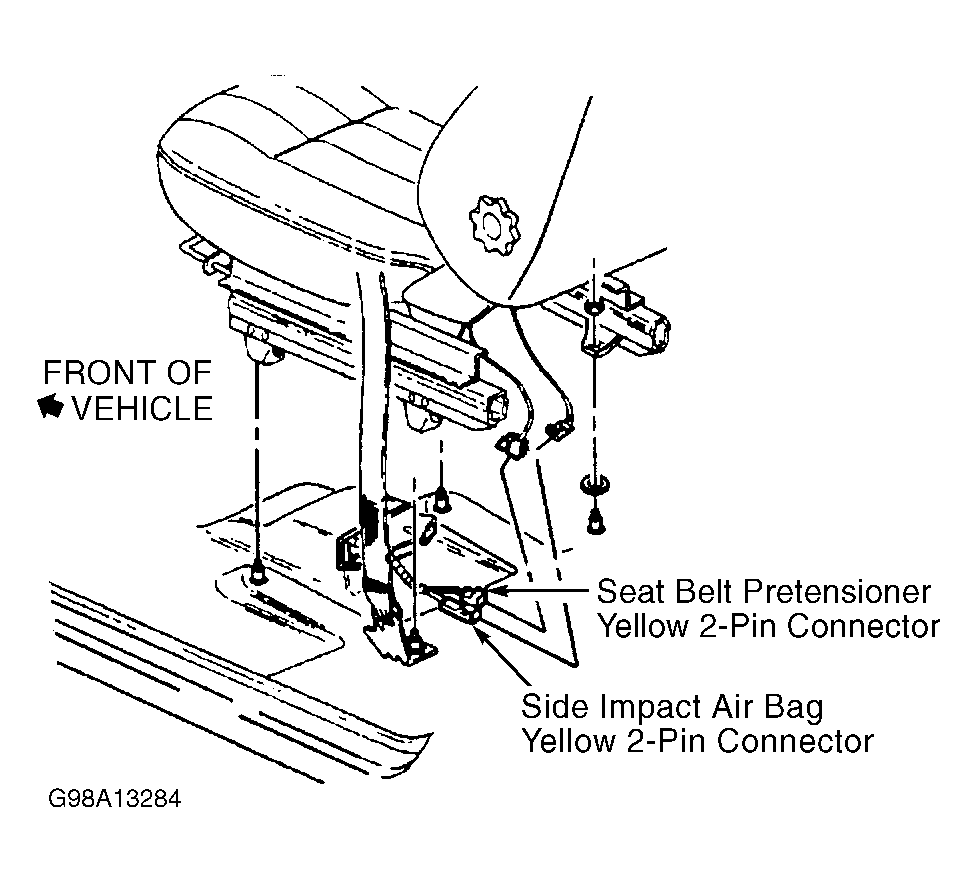

  1. Before proceeding, see SERVICE PRECAUTIONS  . Turn ignition switch OFF, remove key and put on safety glasses. Disconnect driver-side and passenger-side frontal air bag module Yellow 2-pin connectors. See Figure and Figure . Disconnect side air bag and seat belt pretensioner Yellow 2-pin connectors. See Figure .
  2. Cut air bag module harness connector from vehicle leaving at least 6" of wire at the connector. Strip 1/2" (13 mm) of insulation from each wire lead to the connector. Cut 2 deployment wires at least 20 feet long from 18-gauge multi-strand wire. Strip 1/2" (13 mm) of insulation from each connector wire lead. Cut 2 15-foot deployment wires from 18-gauge multi-strand wire. Strip 1/2" (13 mm) of insulation from both ends of wires. Twist wires together at one end to short.
  3. Twist together one connector wire lead to other end of each deployment wire. See Fig 1 . Bend twisted connection flat and wrap tightly with electrical tape to insulate. Repeat this step for other connector wire lead.
  4. Remove all loose objects from front seat, and ensure no one is in vehicle. Connect deployment harness to air bag module connector. Stretch wires away from car as far as possible.
  5. Repeat steps 2-4 for passenger-side and side impact air bag modules. See Fig 2 and Fig 3 . Cover windshield and front door openings with a drop cloth.
  6. Separate wire ends. Connect wires to a 12-volt battery. Air bag should deploy. Disconnect wires from battery. DO NOT  touch metal surfaces of air bag module for at least 10 minutes due to heat generated during deployment. Wear gloves and safety glasses when handling deployed air bag module. Wash hands with mild soap and water. Dispose of deployed air bag module like any other part. Repeat deployment procedure for remaining air bags and pretensioners.
  7. If air bag modules or pretensioners do not deploy, carefully remove from vehicle. See REMOVAL & INSTALLATION  . Temporarily store module with trim facing up. Contact manufacturer for proper disposal instructions.
    Fig 1: Preparing Deployment Harness For Driver-Side Air Bag On-Vehicle Deployment
    G96H14008Courtesy of GENERAL MOTORS CORP.
    Fig 2: Preparing Deployment Harness For Passenger-Side Air Bag On-Vehicle Deployment
    G98I09938Courtesy of GENERAL MOTORS CORP.
    Fig 3: Preparing Deployment Harness For Side Impact Air Bags On-Vehicle Deployment
    G98I13282Courtesy of GENERAL MOTORS CORP.
