Removal & Installation

Disconnect negative battery cable. Remove passenger kick panel. Disconnect MAM electrical connectors. Remove MAM nuts. See Fig 1 . Remove MAM assembly. To install, reverse removal procedure. Tighten MAM nuts to 53 INCH lbs. (6 N.m).

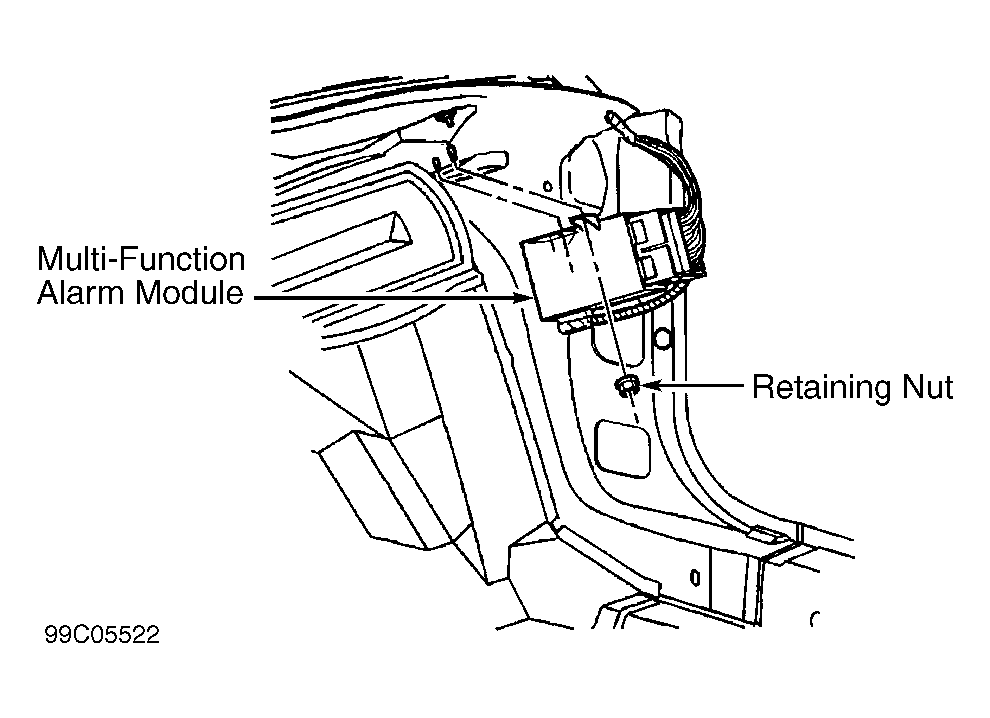

Fig 1: Removing Multifunction Alarm Module (MAM)

Courtesy of GENERAL MOTORS CORP.
