Shift Lock Control Schematics

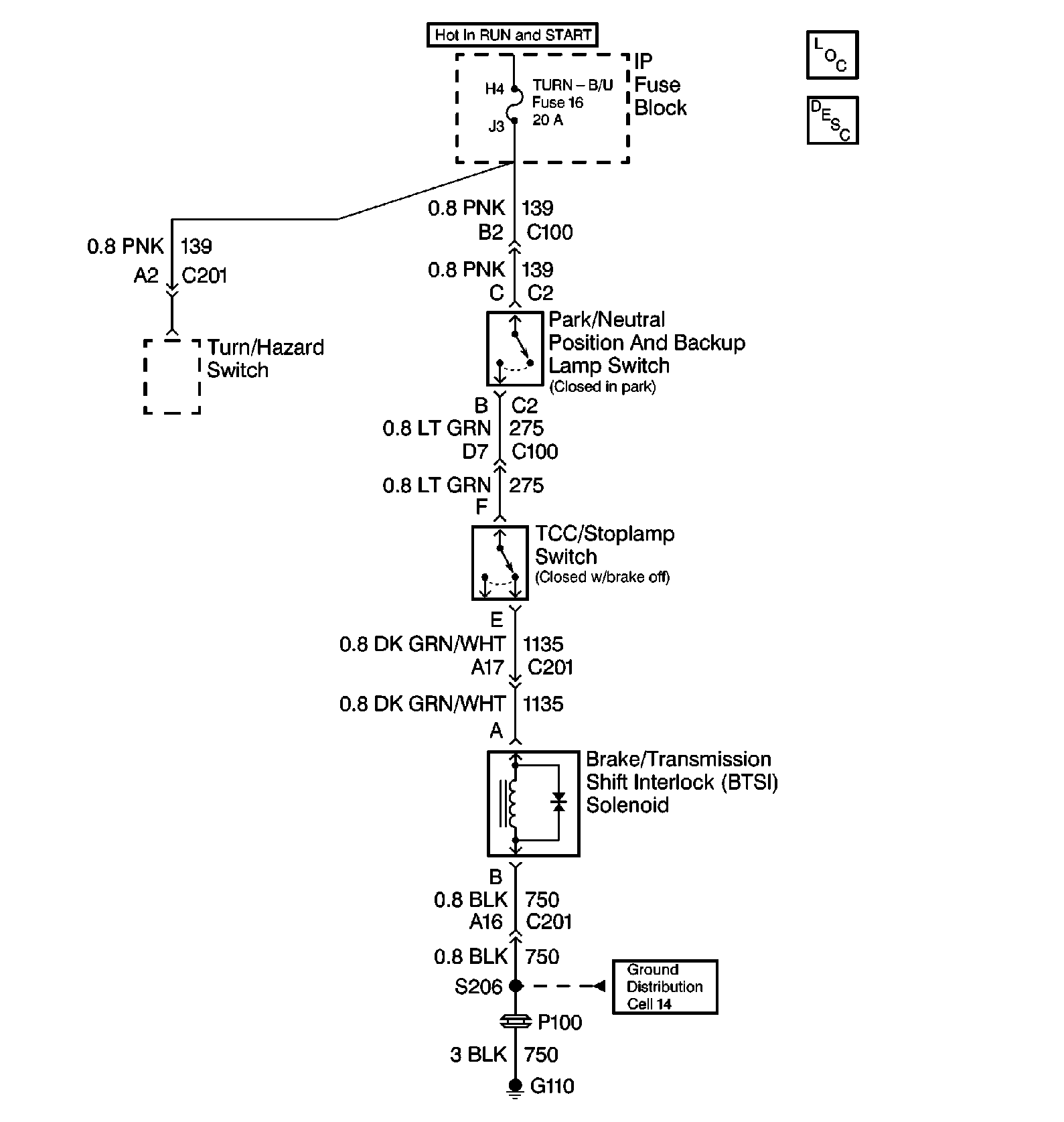

Fig 1: Auto Trans Shift Lock Control Schematic

GM284289

Courtesy of GENERAL MOTORS CORP.
