Test C: Rear Door Lock/Unlock Is Inoperative With Transmitter

To perform test, see Fig 1 .

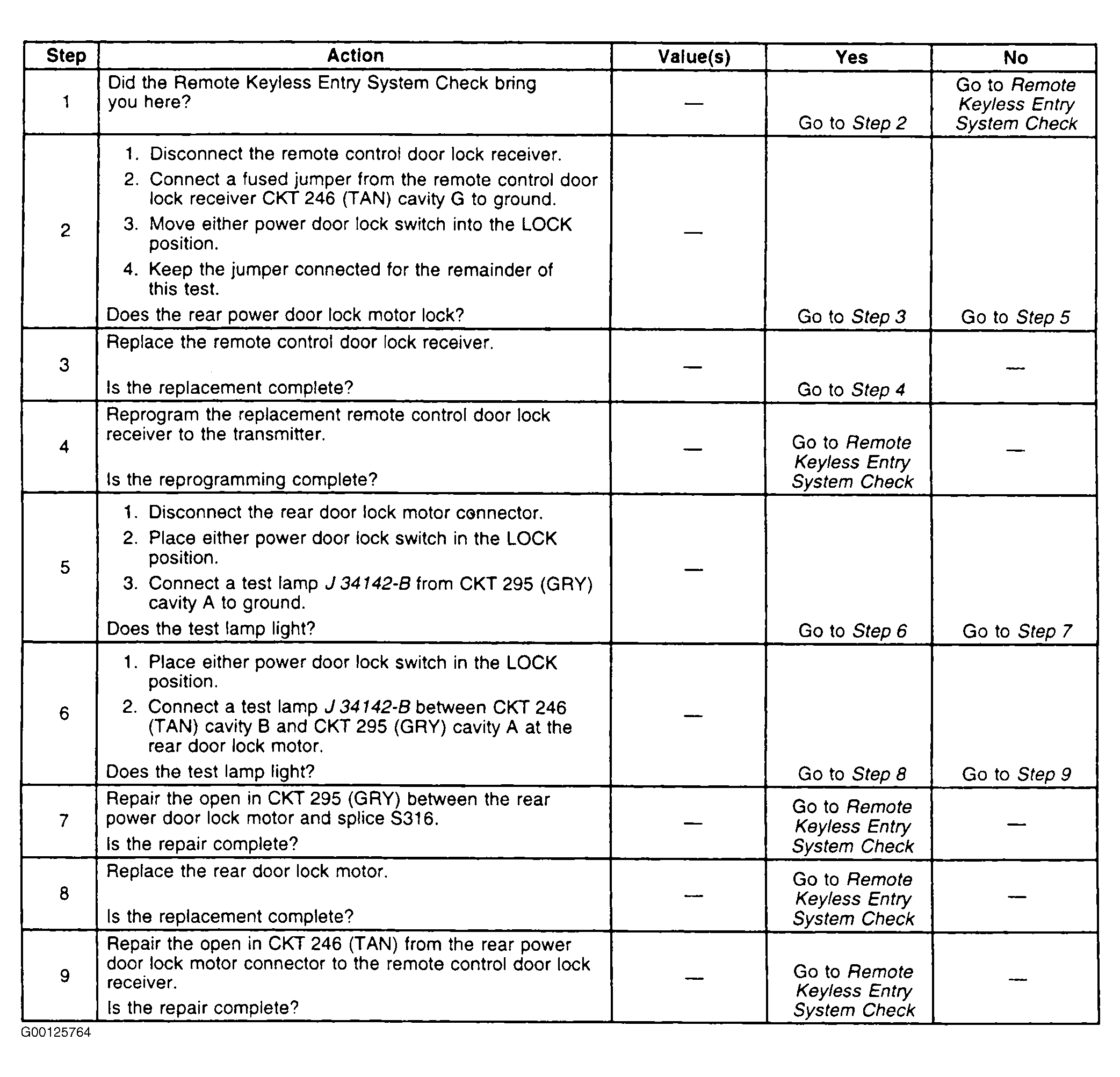

Fig 1: Test C: Rear Door Lock/Unlock Is Inoperative With Transmitter

G00125764

Courtesy of GENERAL MOTORS CORP.
