Test A: Left Front Door Lock/Unlock Is Inoperative

To perform test, see Fig 1 .

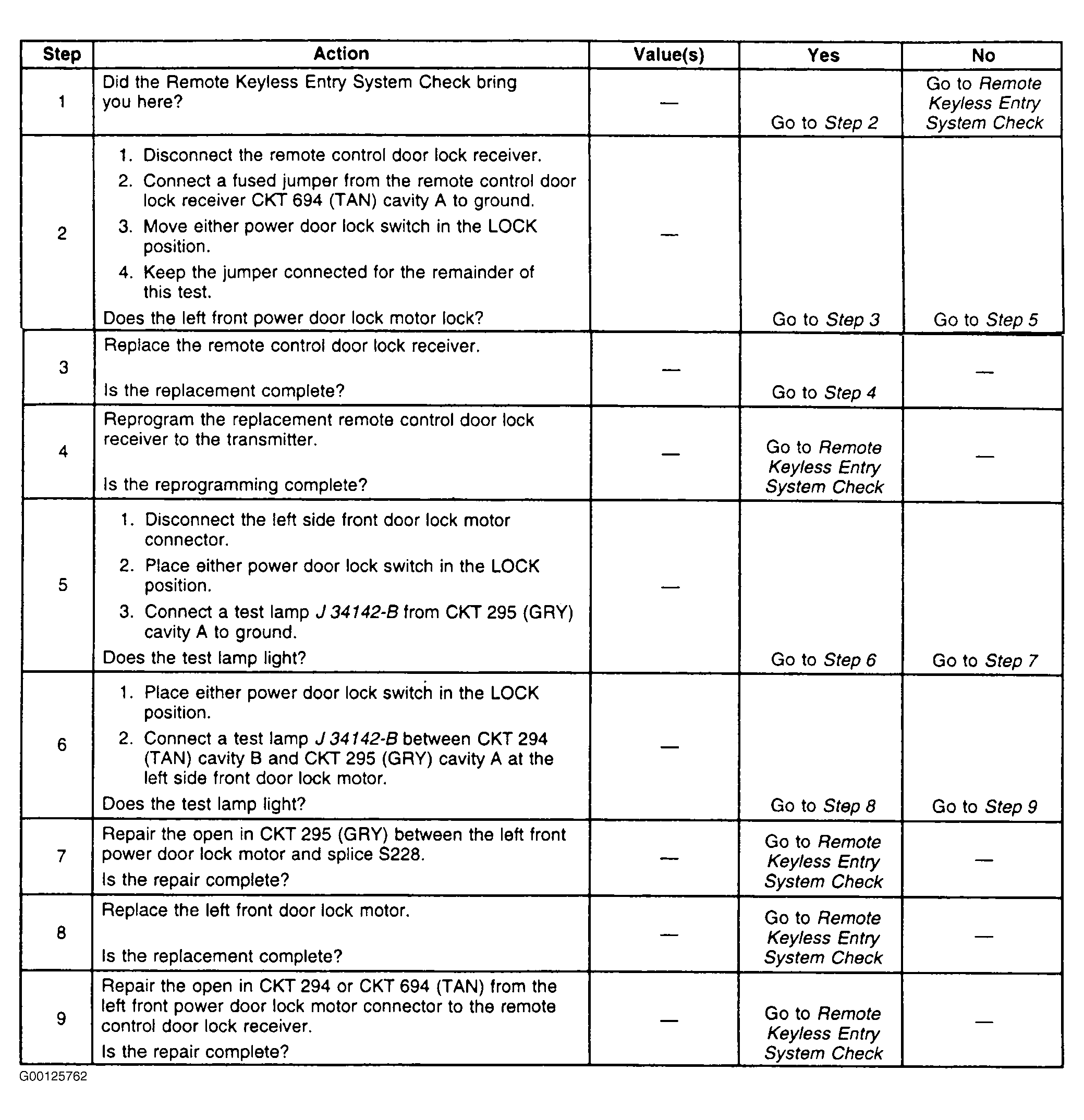

Fig 1: Test A: Left Front Door Lock/Unlock Is Inoperative

G00125762

Courtesy of GENERAL MOTORS CORP.
