Test A: Liftgate Lock/Unlock Release Switch Inoperative

To perform this test, refer to illustration. See Fig 1 and Figure .

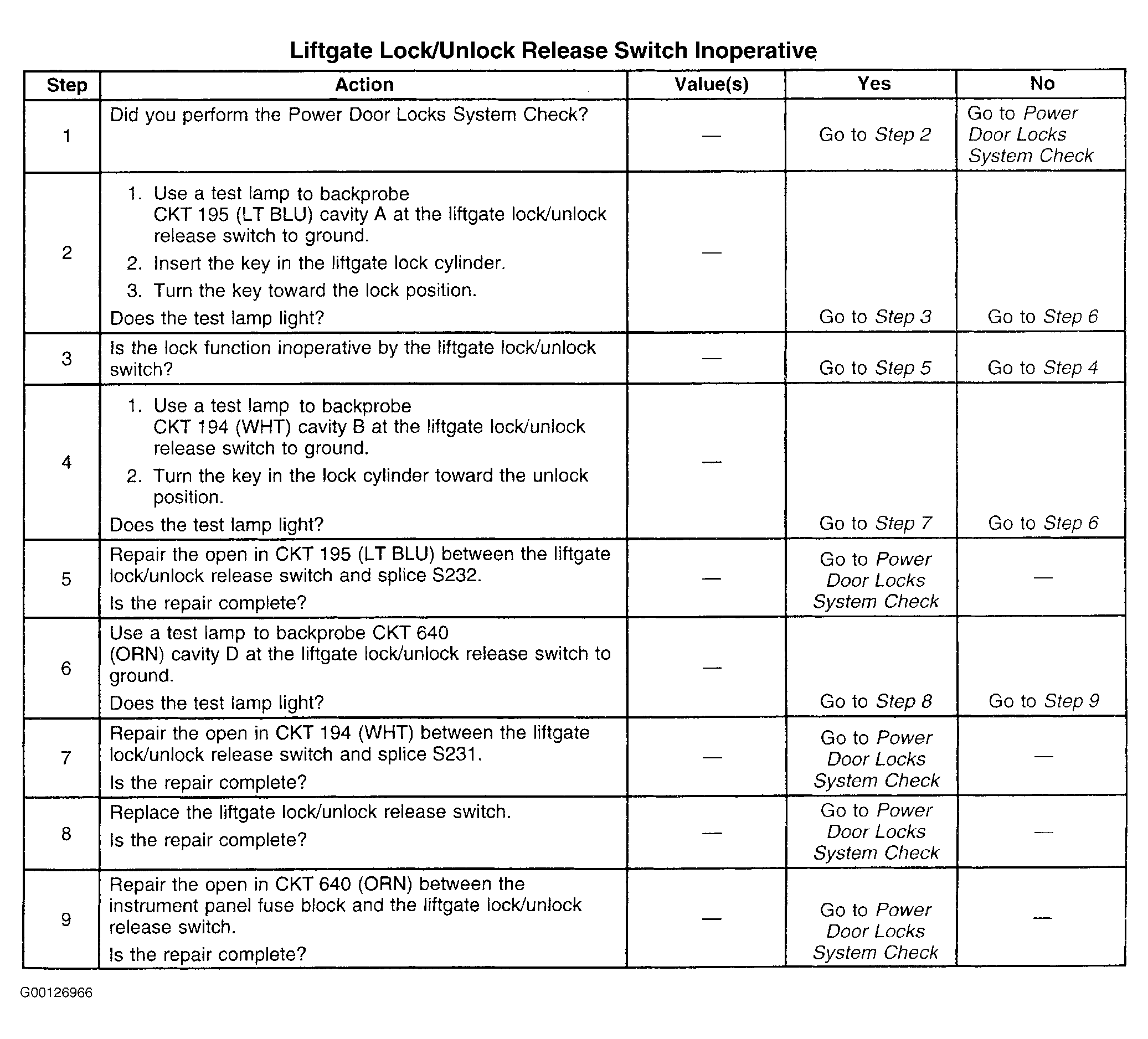

Fig 1: Test A: Liftgate Lock/Unlock Release Switch Inoperative

Courtesy of GENERAL MOTORS CORP.
