Connector Identification

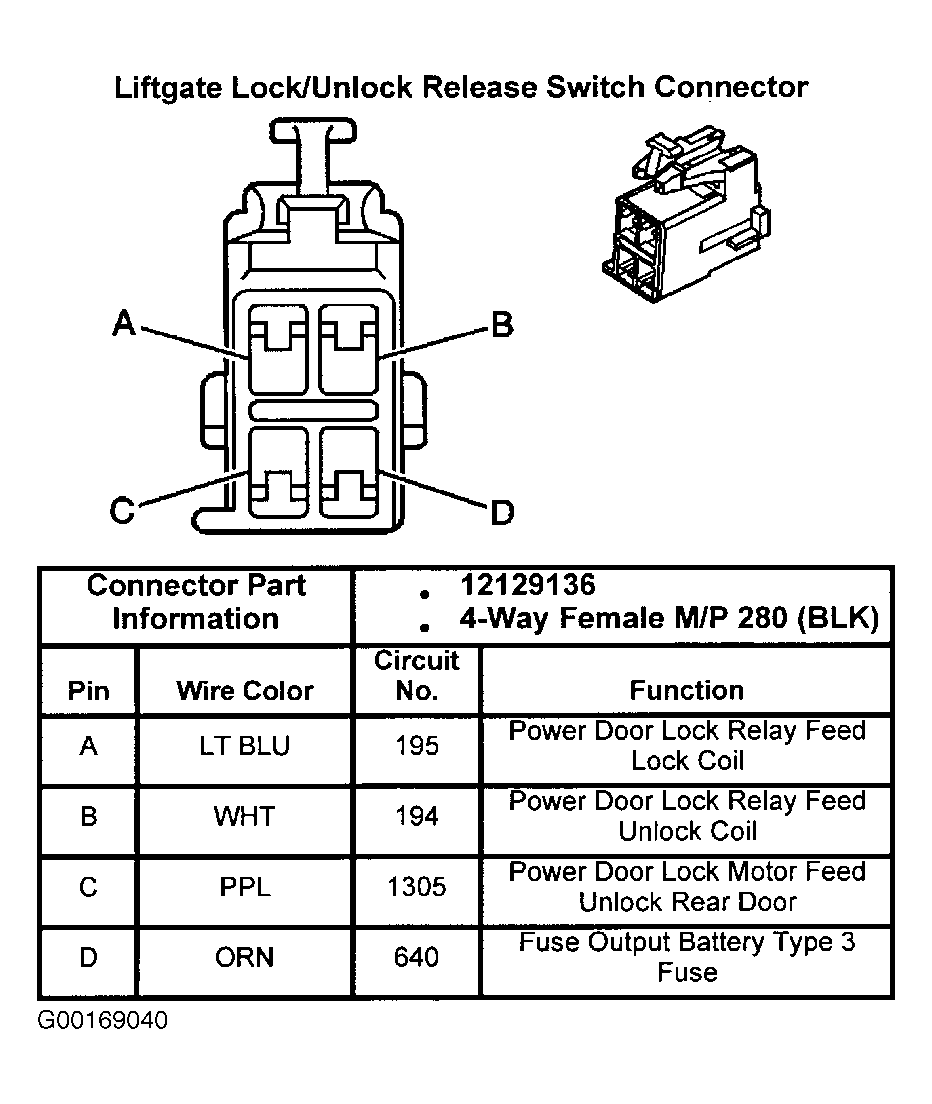

Fig 1: Identifying Liftgate Lock/Unlock Release Switch Terminals

Courtesy of GENERAL MOTORS CORP.

Fig 2: Identifying Door Lock Switch Terminals

Courtesy of GENERAL MOTORS CORP.

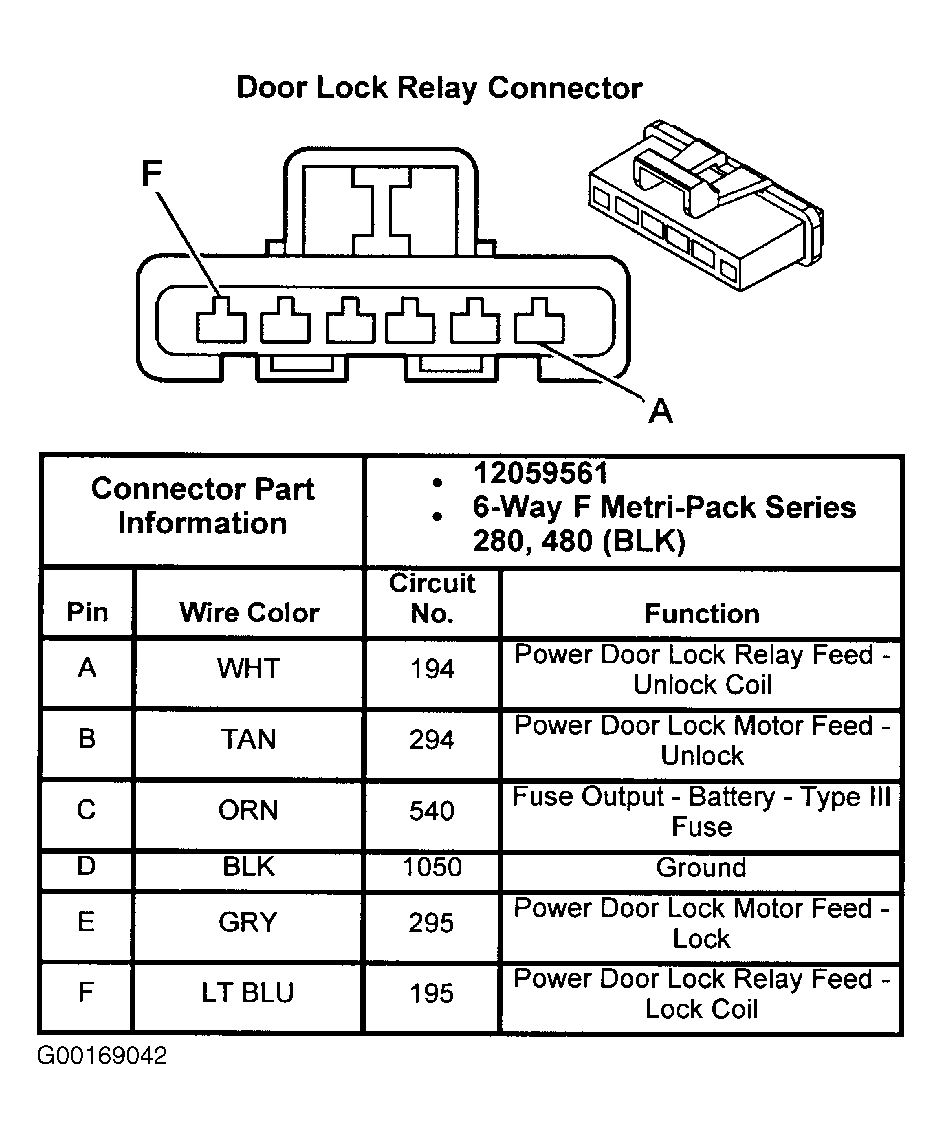

Fig 3: Identifying Door Lock Relay Connector Terminals

Courtesy of GENERAL MOTORS CORP.

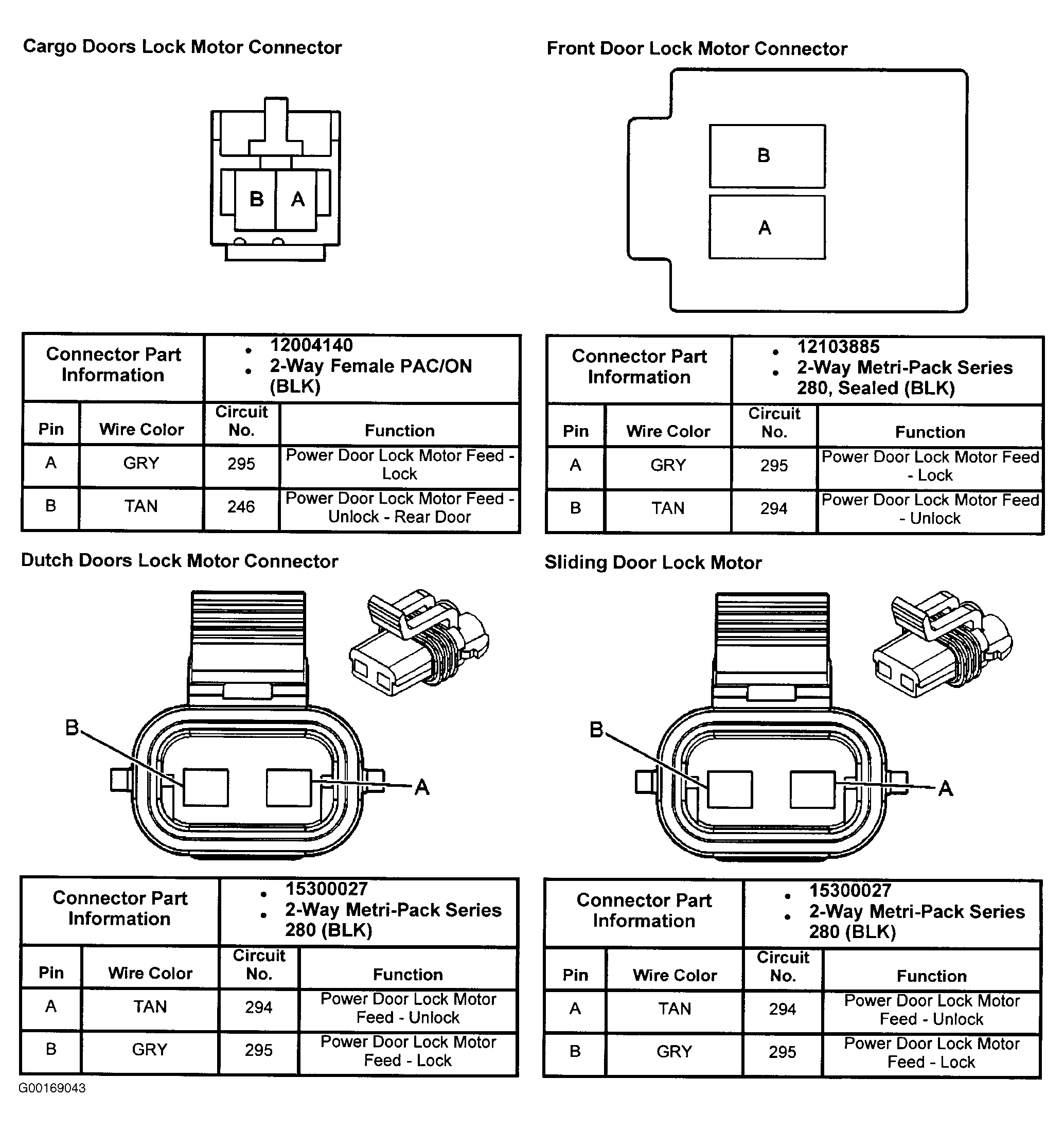

Fig 4: Identifying Door Lock Motor Connector Terminals

Courtesy of GENERAL MOTORS CORP.

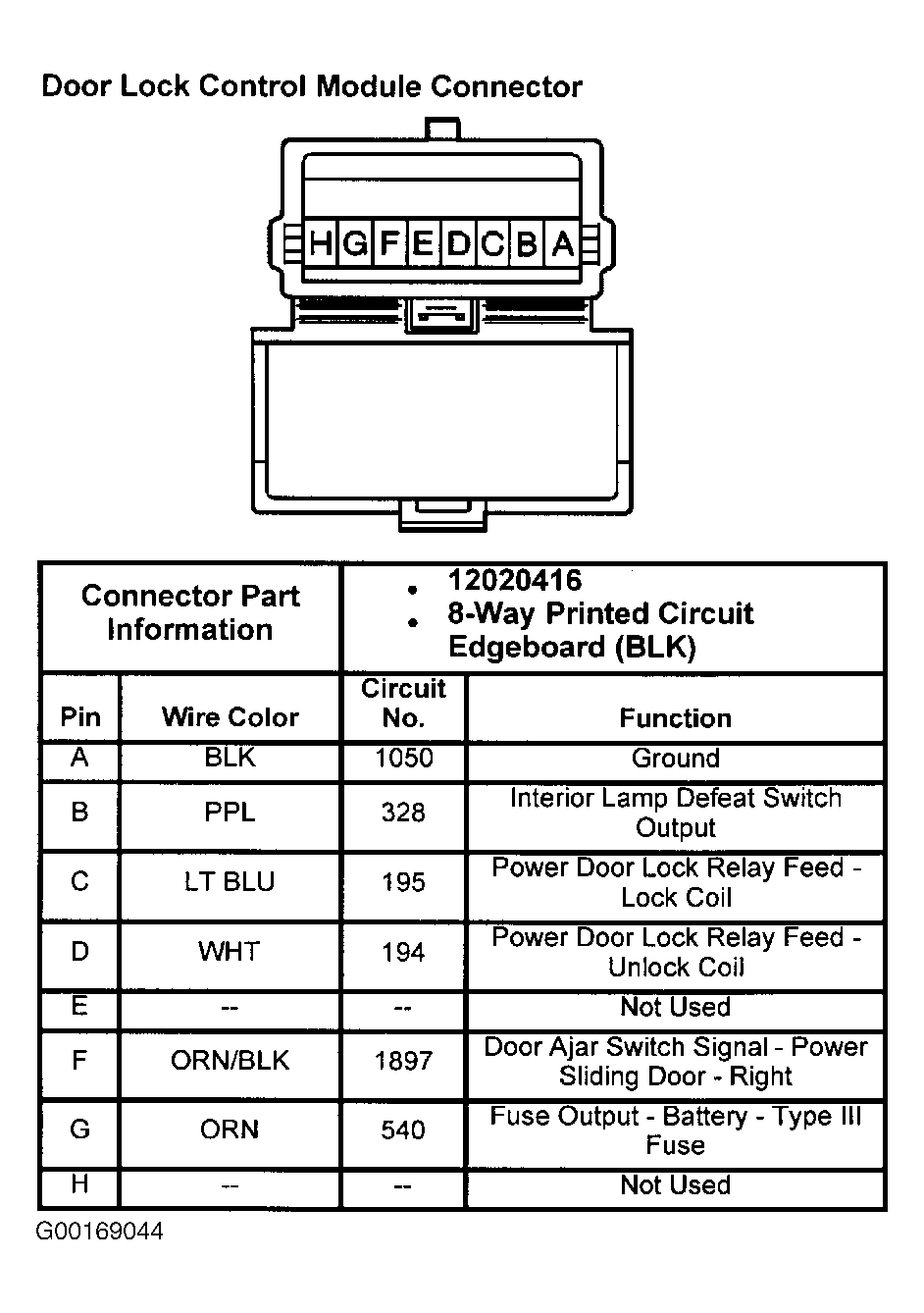

Fig 5: Identifying Door Lock Control Module Connector Terminals

Courtesy of GENERAL MOTORS CORP.

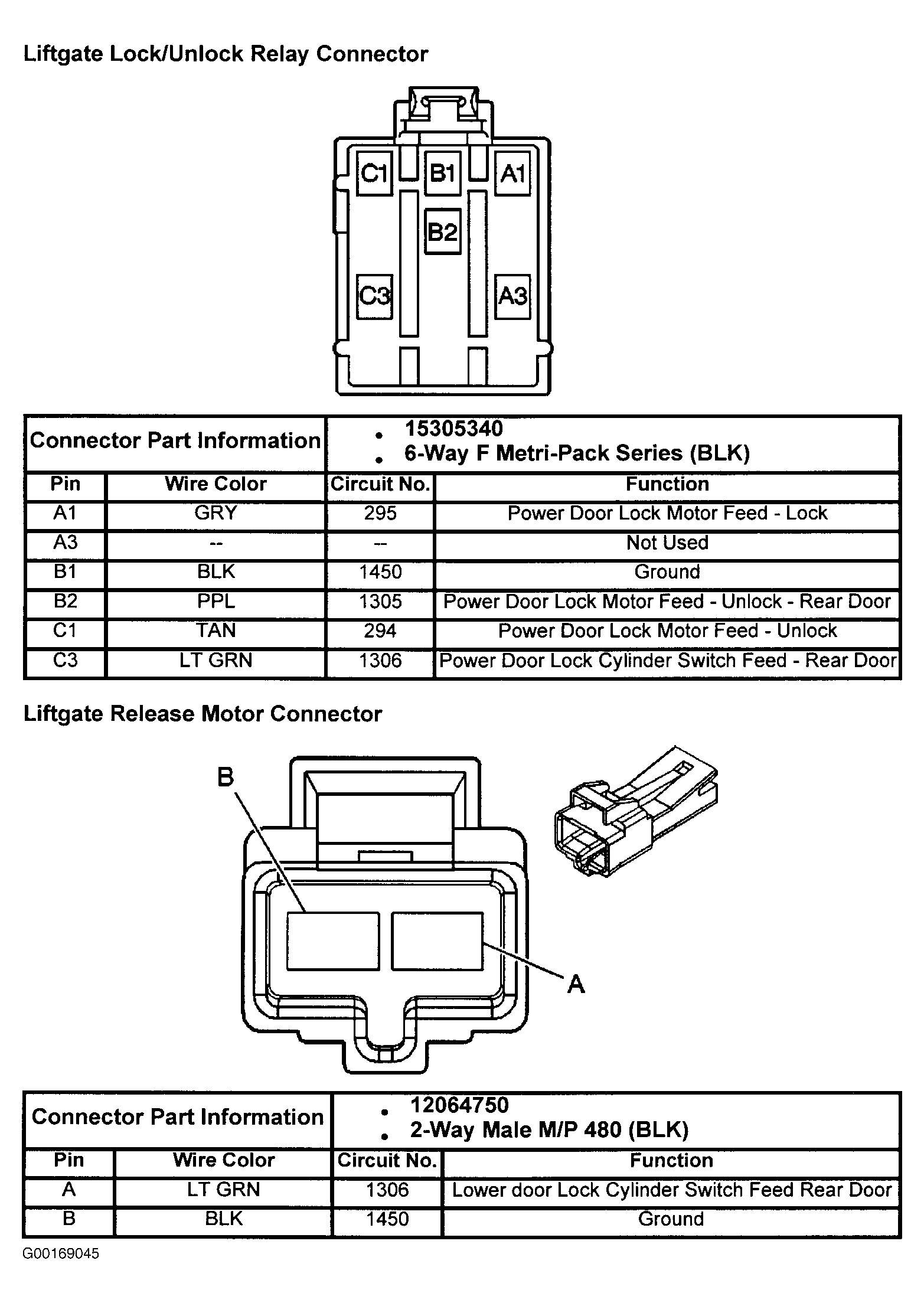

Fig 6: Identifying Liftgate Lock/Unlock Relay & Release Motor Connector Terminals

Courtesy of GENERAL MOTORS CORP.
