Cruise Control System

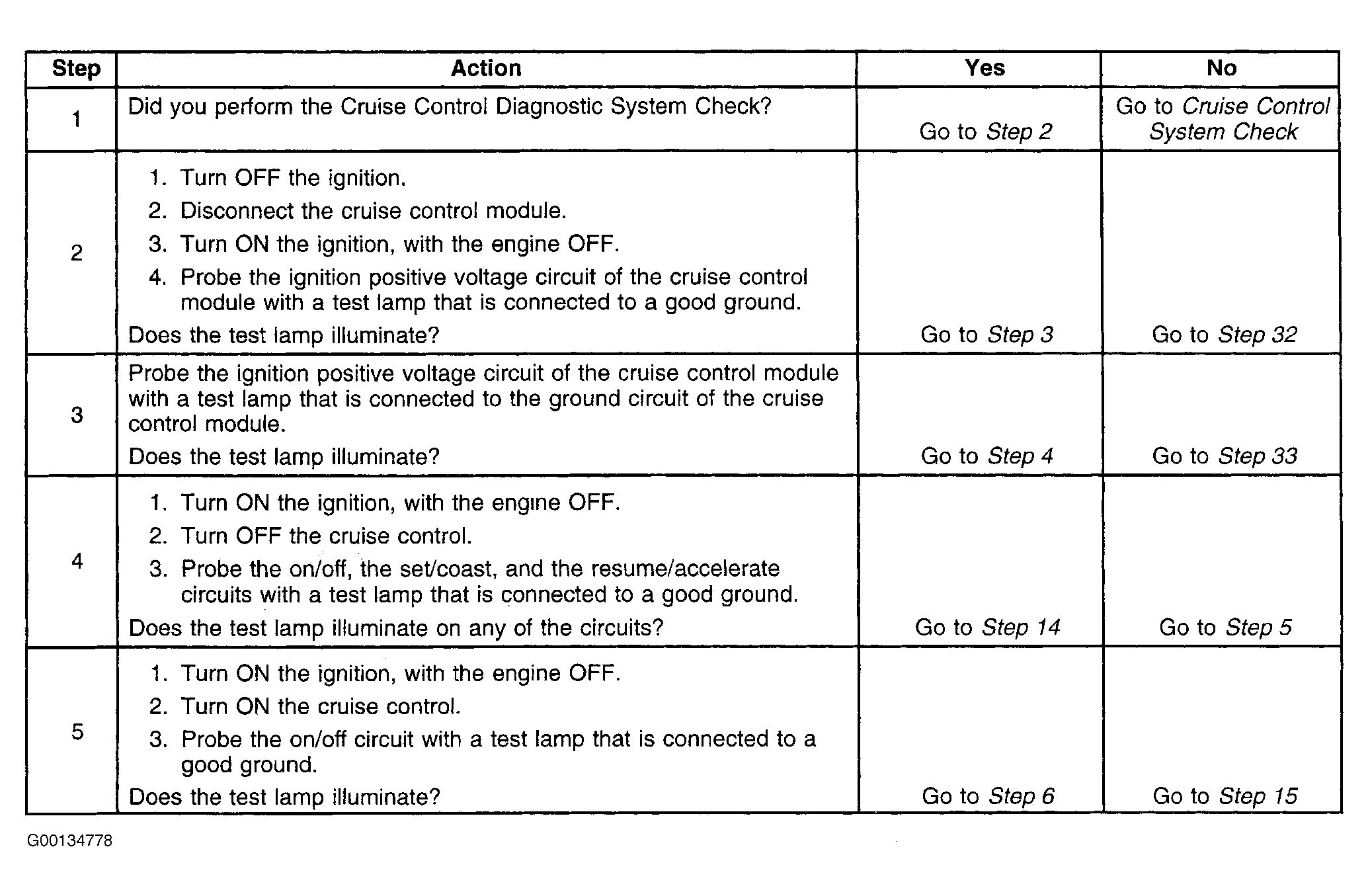

Fig 1: Cruise Control Inoperative (1 of 3)
G00134778Courtesy of GENERAL MOTORS CORP.

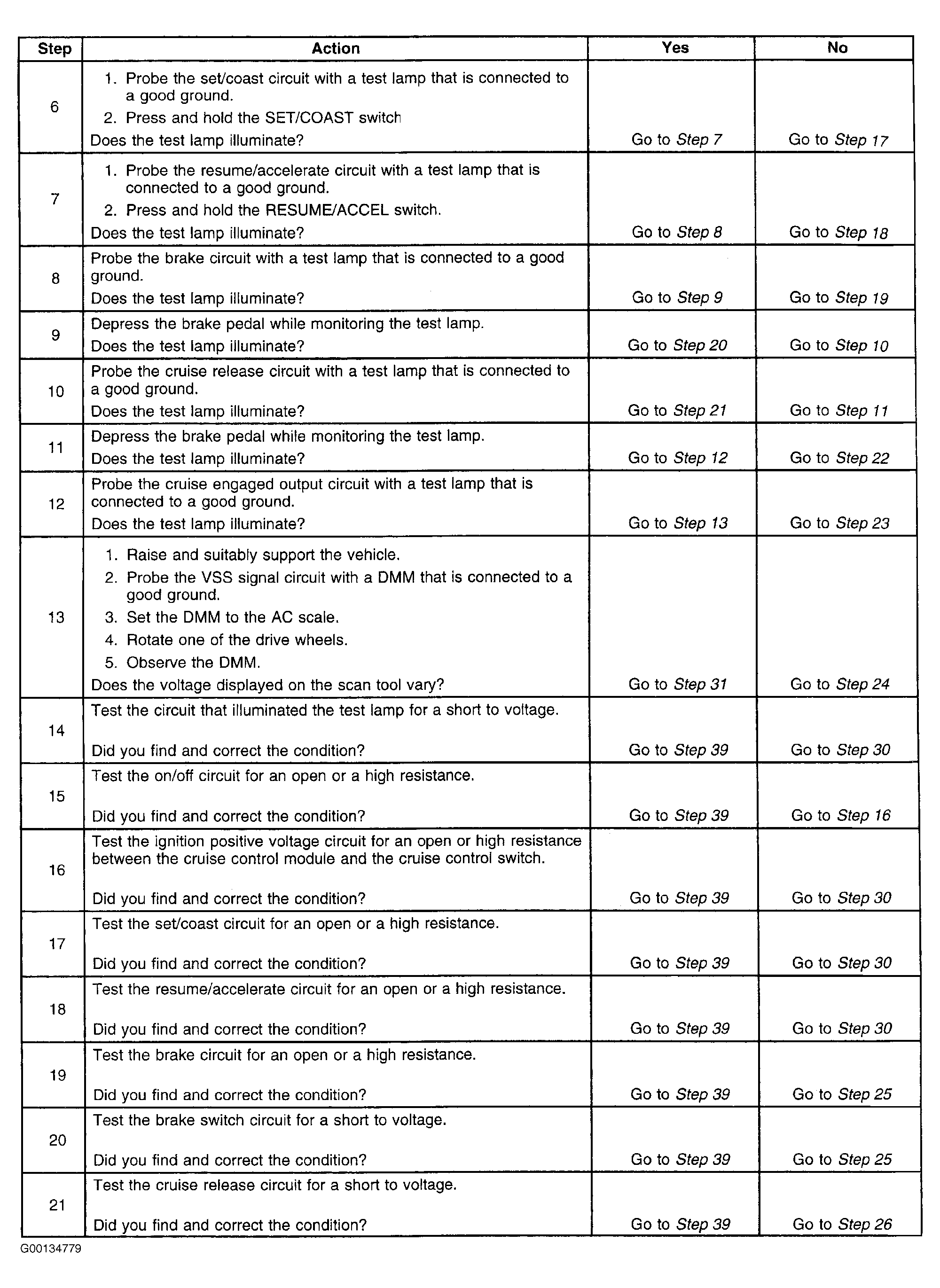

Fig 2: Cruise Control Inoperative (2 of 3)
G00134779Courtesy of GENERAL MOTORS CORP.

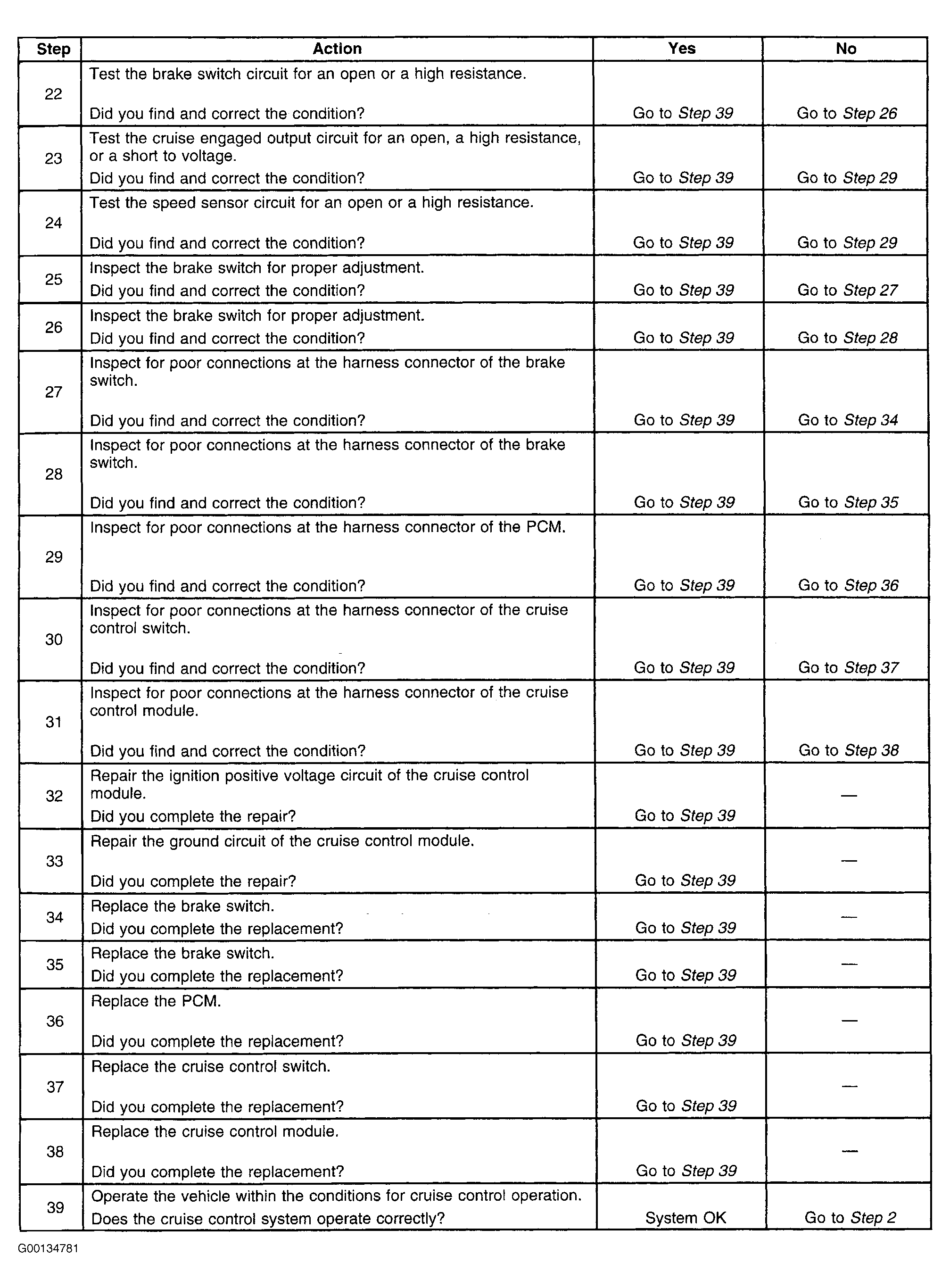

Fig 3: Cruise Control Inoperative (3 of 3)
G00134781Courtesy of GENERAL MOTORS CORP.
