Scan Tool Inoperative

Refer to flowchart. See Fig 1.

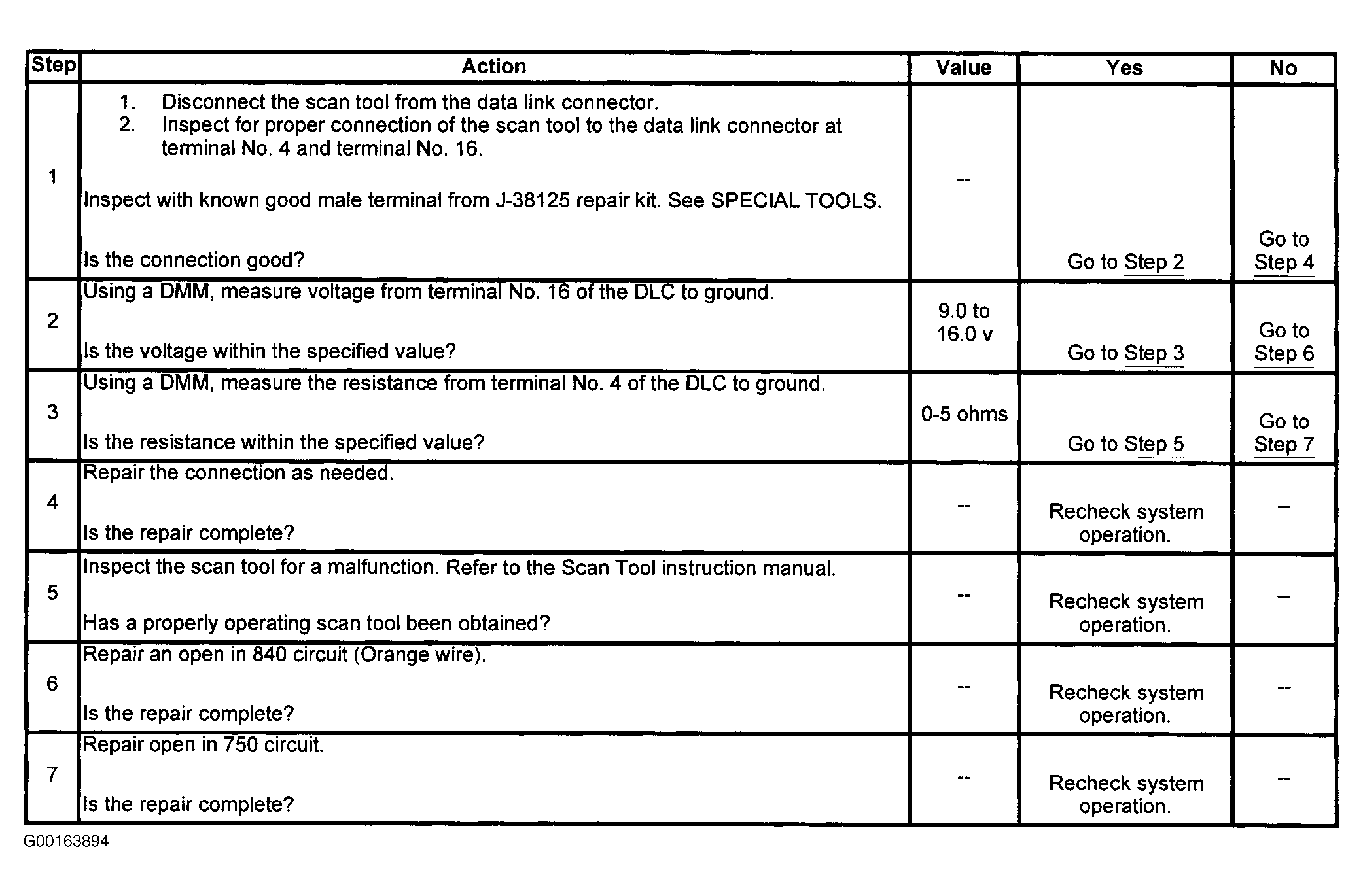

Fig 1: Scan Tool Inoperative Diagnostic Flowchart

G00163894

Courtesy of GENERAL MOTORS CORP.
