Component Locations
COMPONENT LOCATIONS
| Component | Location |
|---|---|

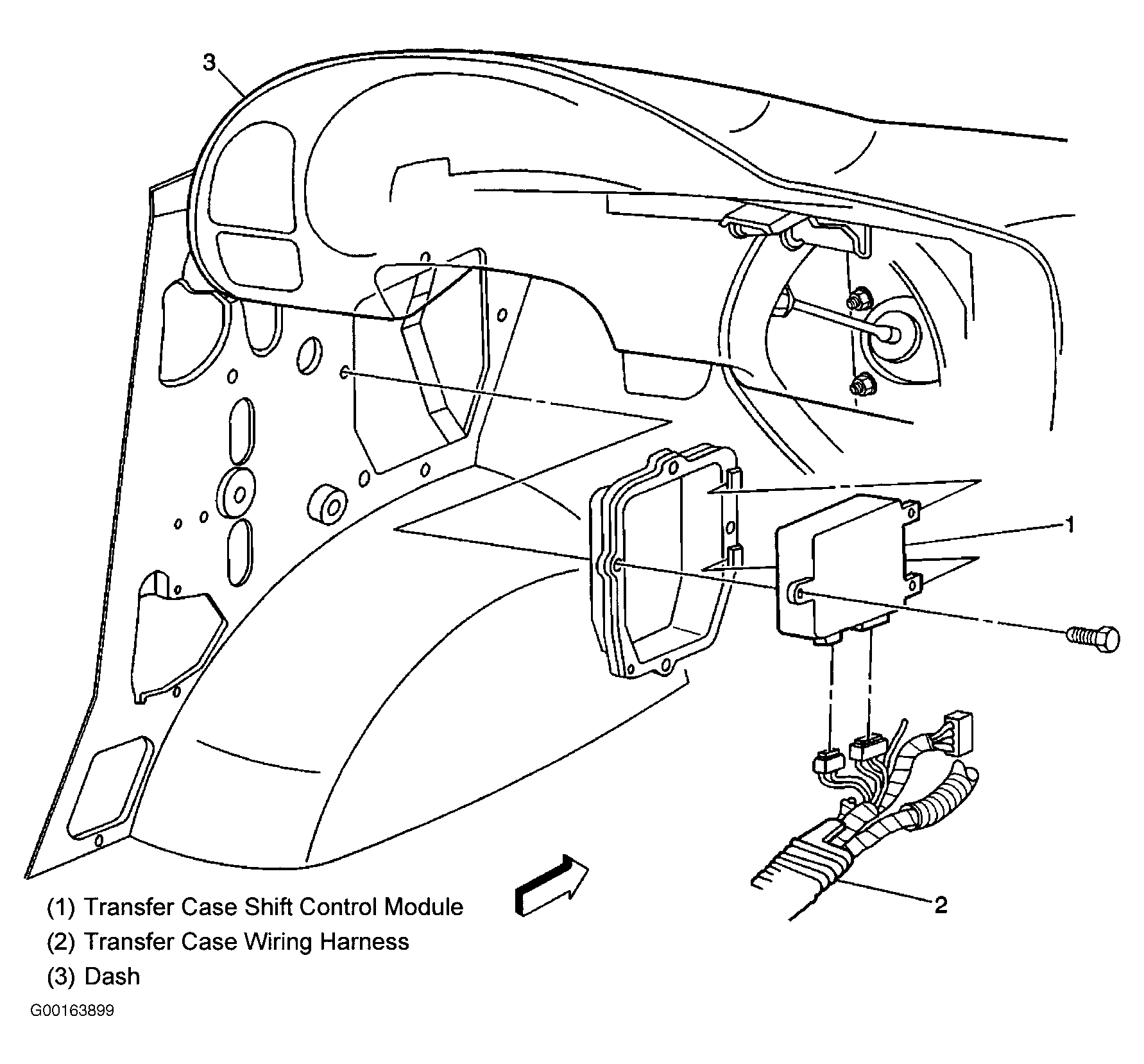

| Automatic Transfer Case Shift Control Module | Behind Driver Side Kick Panel. See Fig 1 |

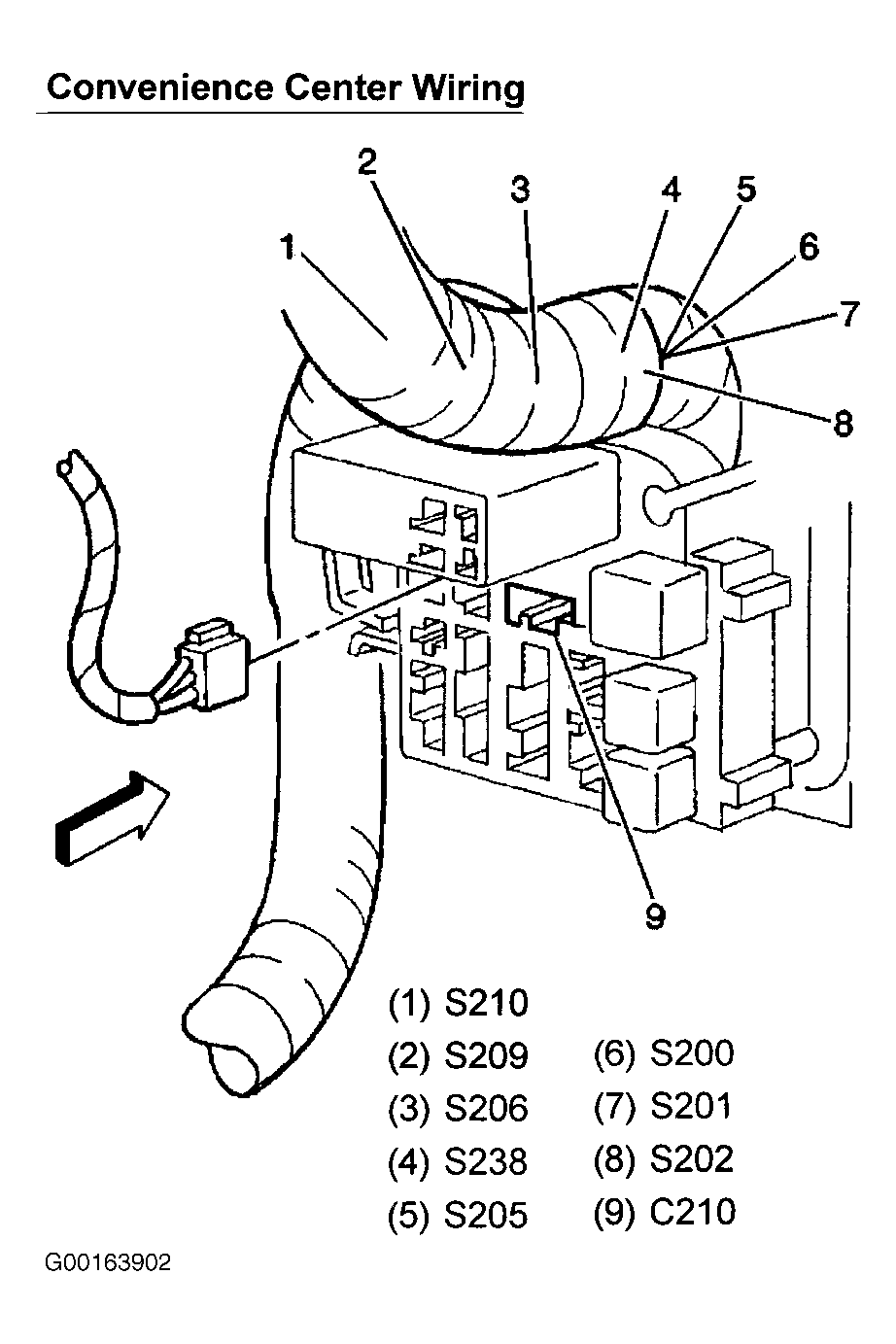

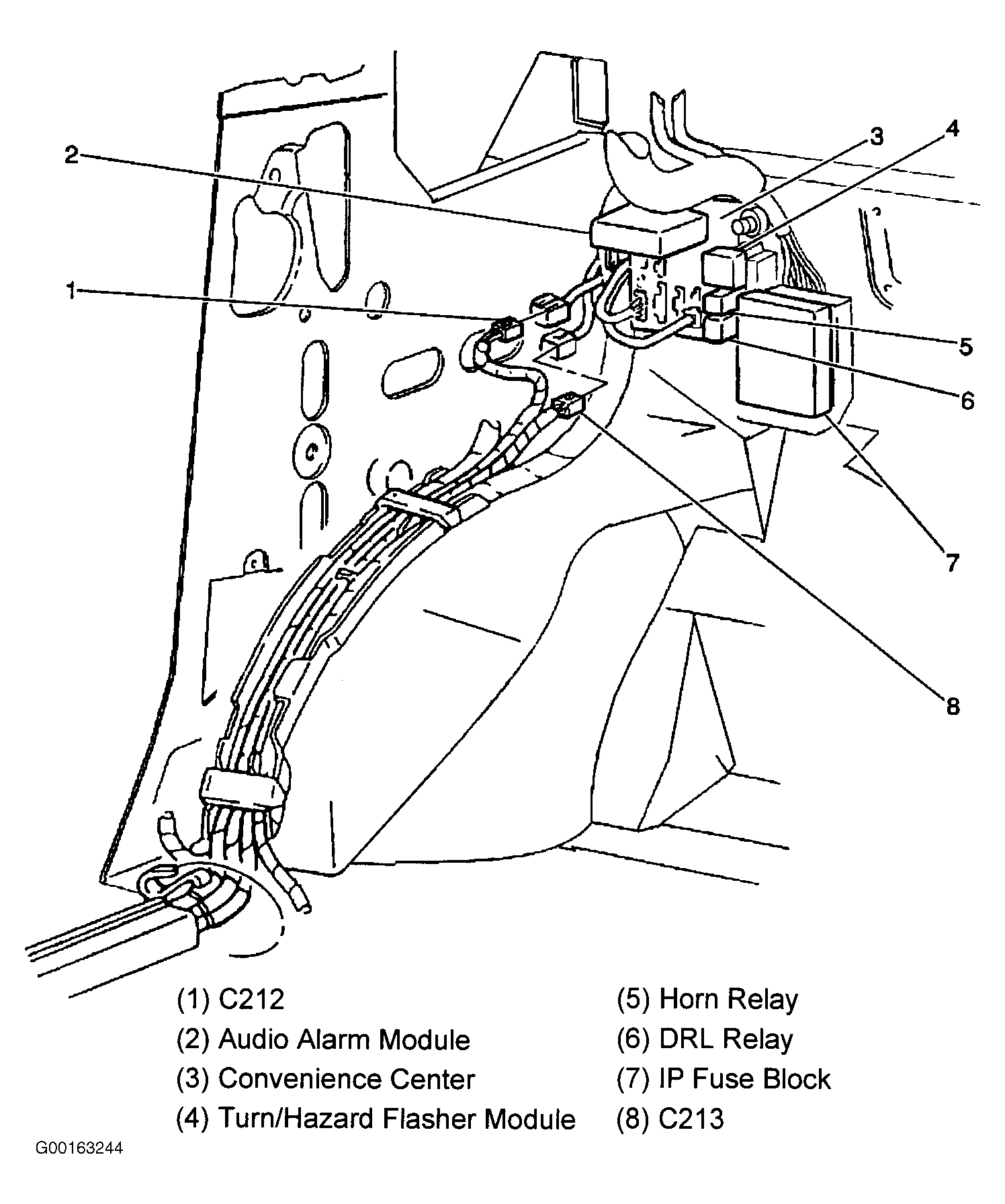

| Convenience Center | Under Driver Side Of Instrument Panel, Near Driver Side Kick Panel. See Fig 2 |

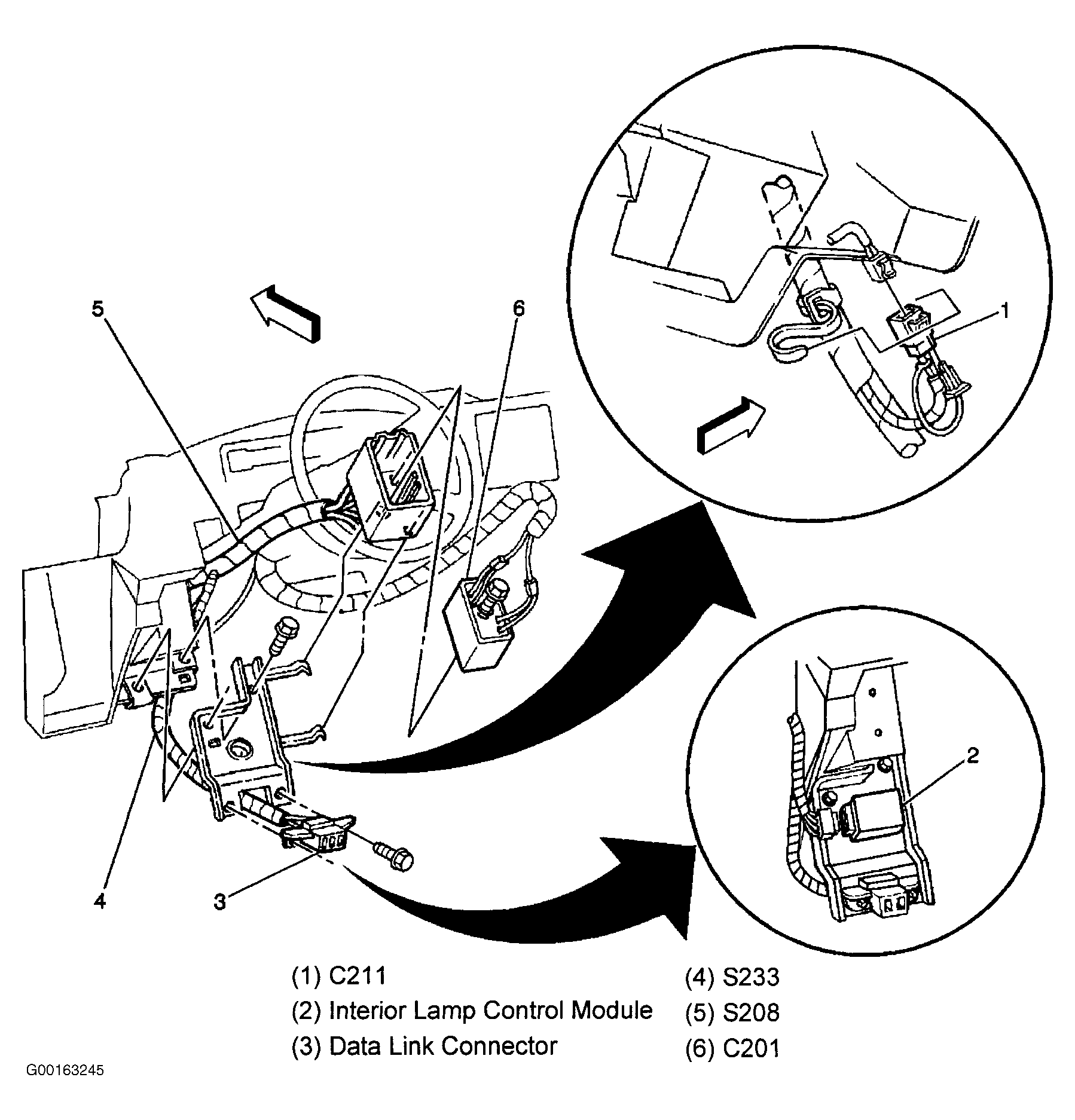

| Data Link Connector (DLC) | Under Driver Side Of Instrument Panel. See Fig 3 |

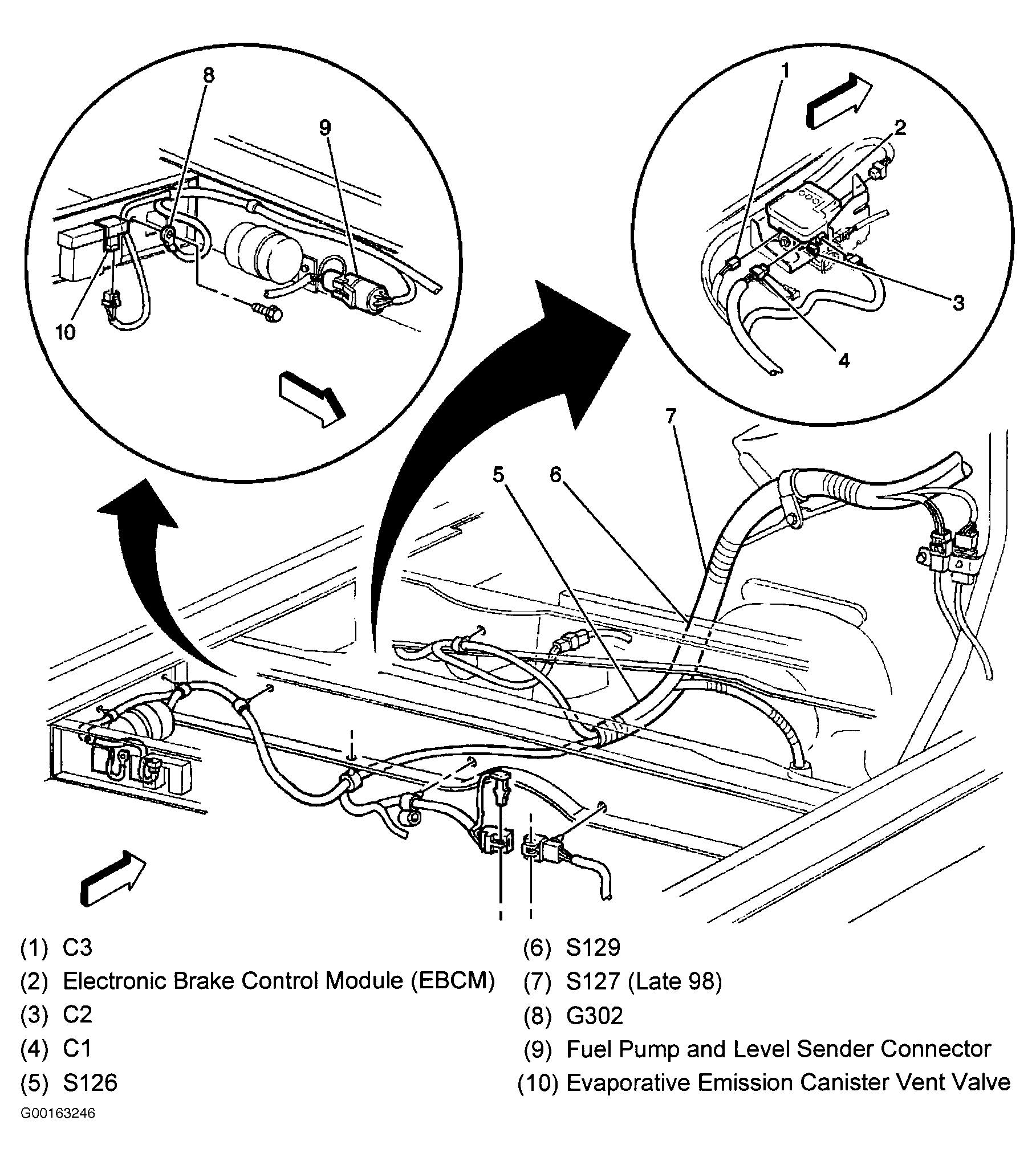

| Electronic Brake Control Module (EBCM) | Driver Side Frame Rail Near Transmission. See Fig 4 |

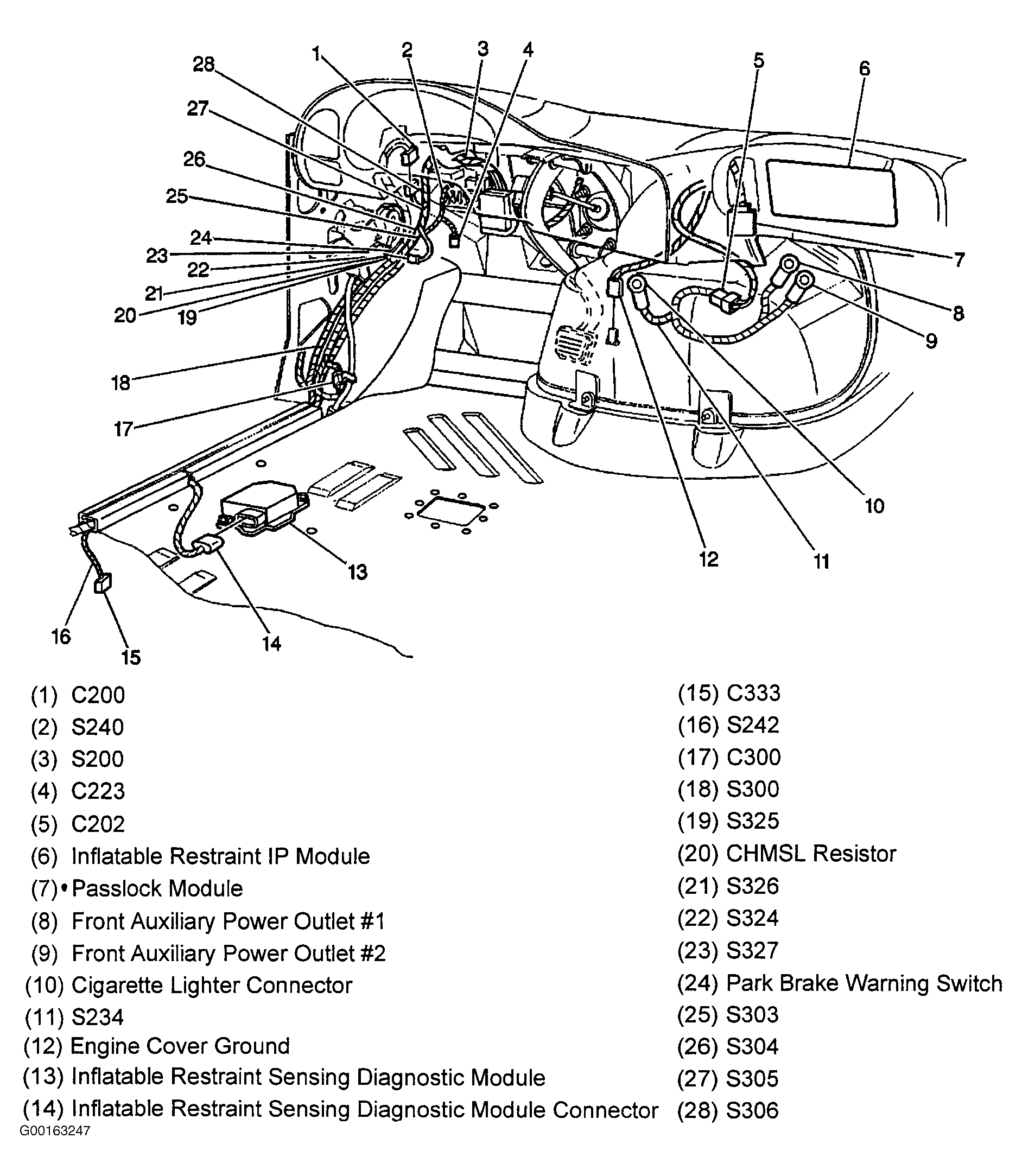

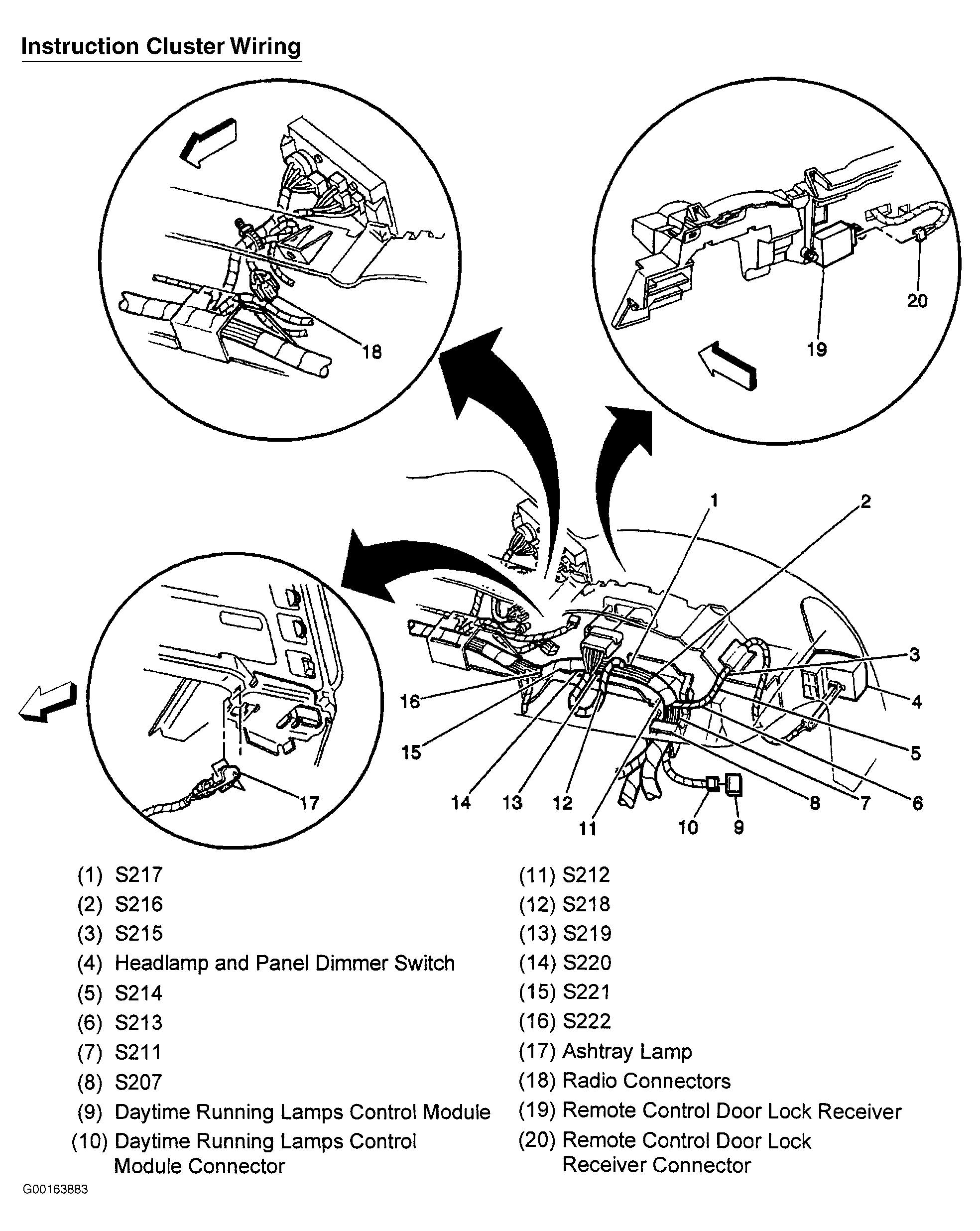

| Inflatable Restraint Sensing & Diagnostic Module (SDM) | Under Driver Front Seat. See Fig 5 |
| Instrument Panel Fuse Block | Next To Driver Side Kick Panel. See Fig 2 |
| Passlock Module | Behind Air Duct On Passenger Side Of Instrument Cluster. See Fig 5 |
| Remote Control Door Lock Receiver (RCDLR) | Behind Air Duct On Passenger Side Of Instrument Cluster. See Fig 6 |

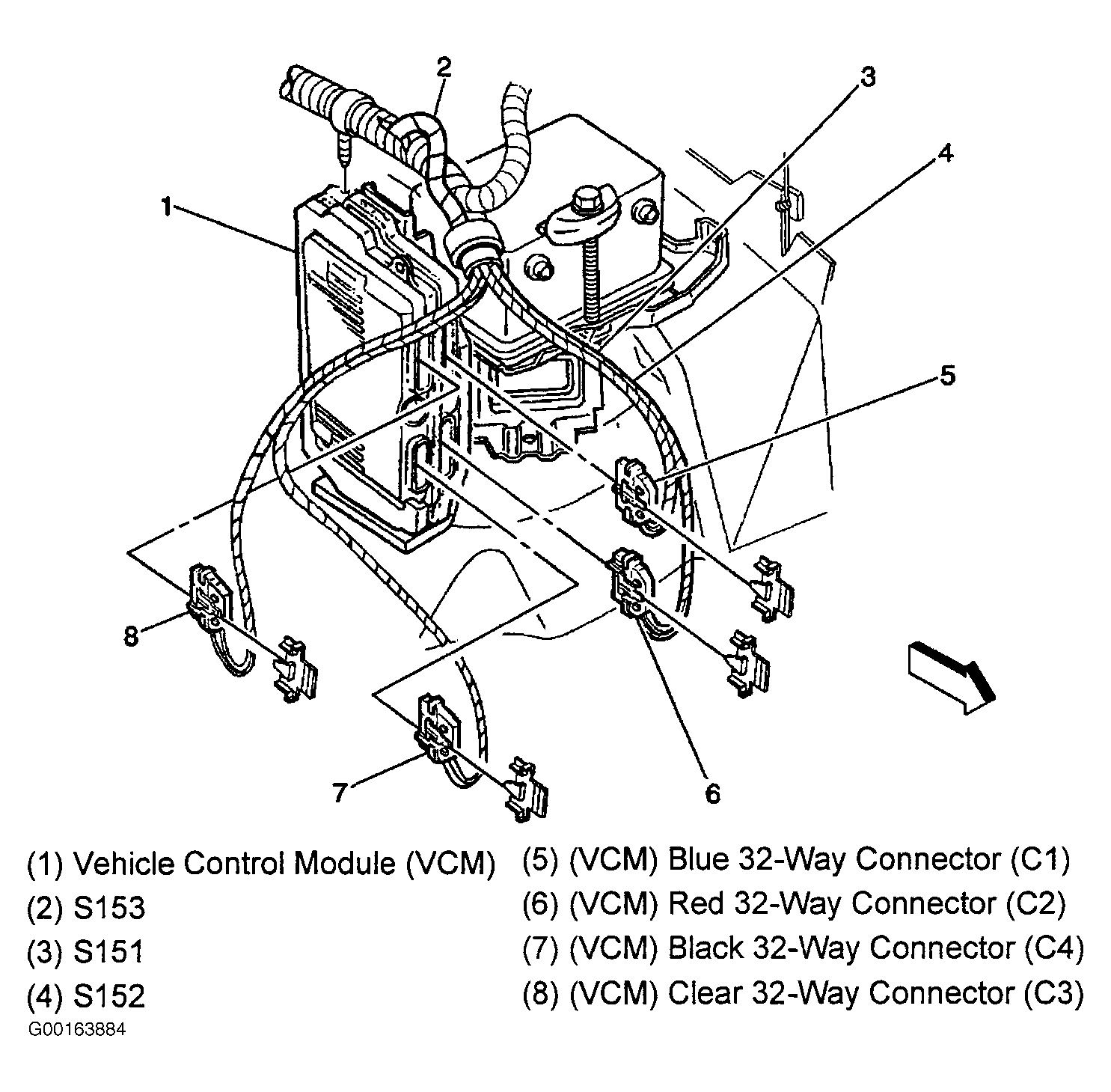

| Vehicle Control Module (VCM) | Driver Side Of Engine Compartment, Near Battery. See Fig 7 |

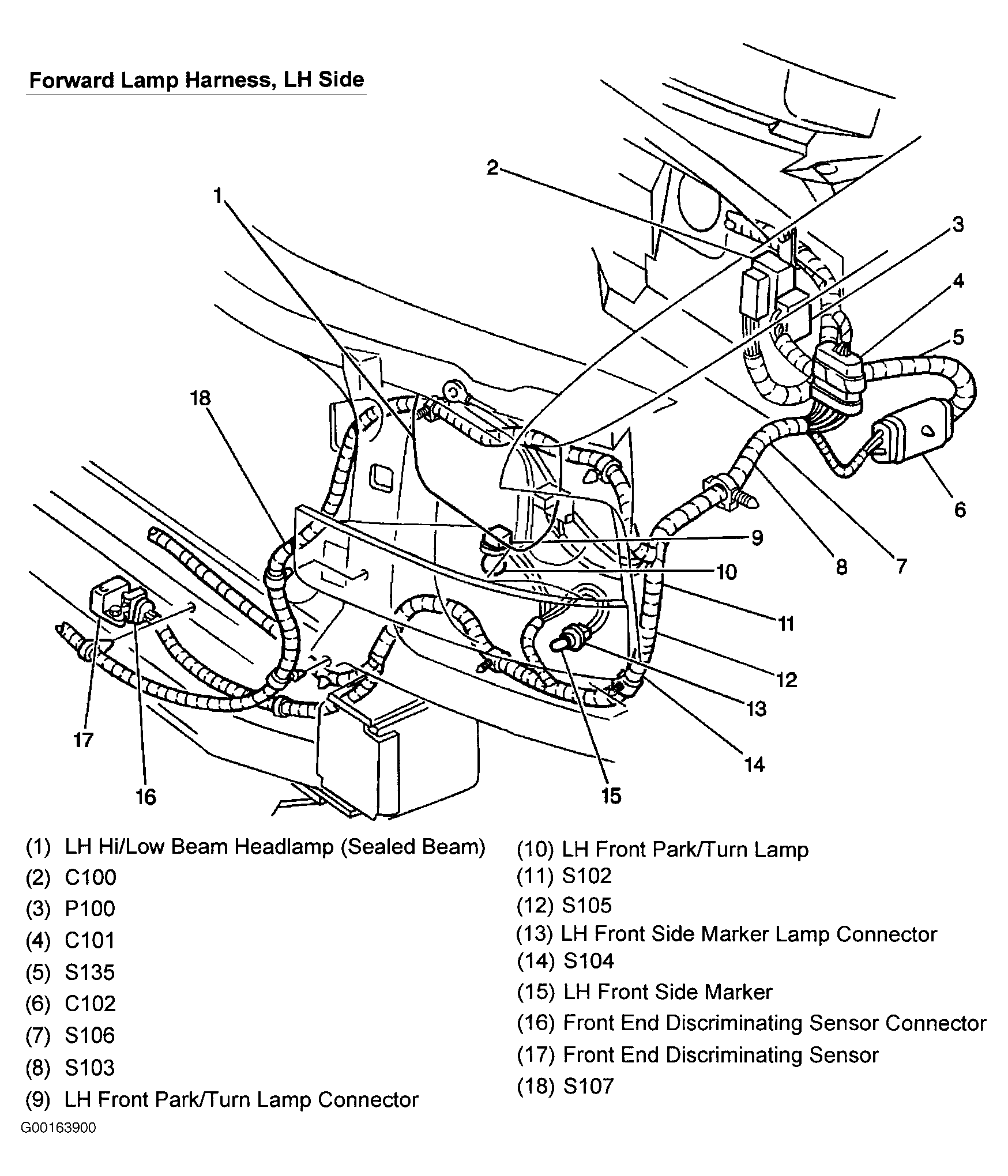

| C100 | Driver Side Of Dash. See Fig 8 |

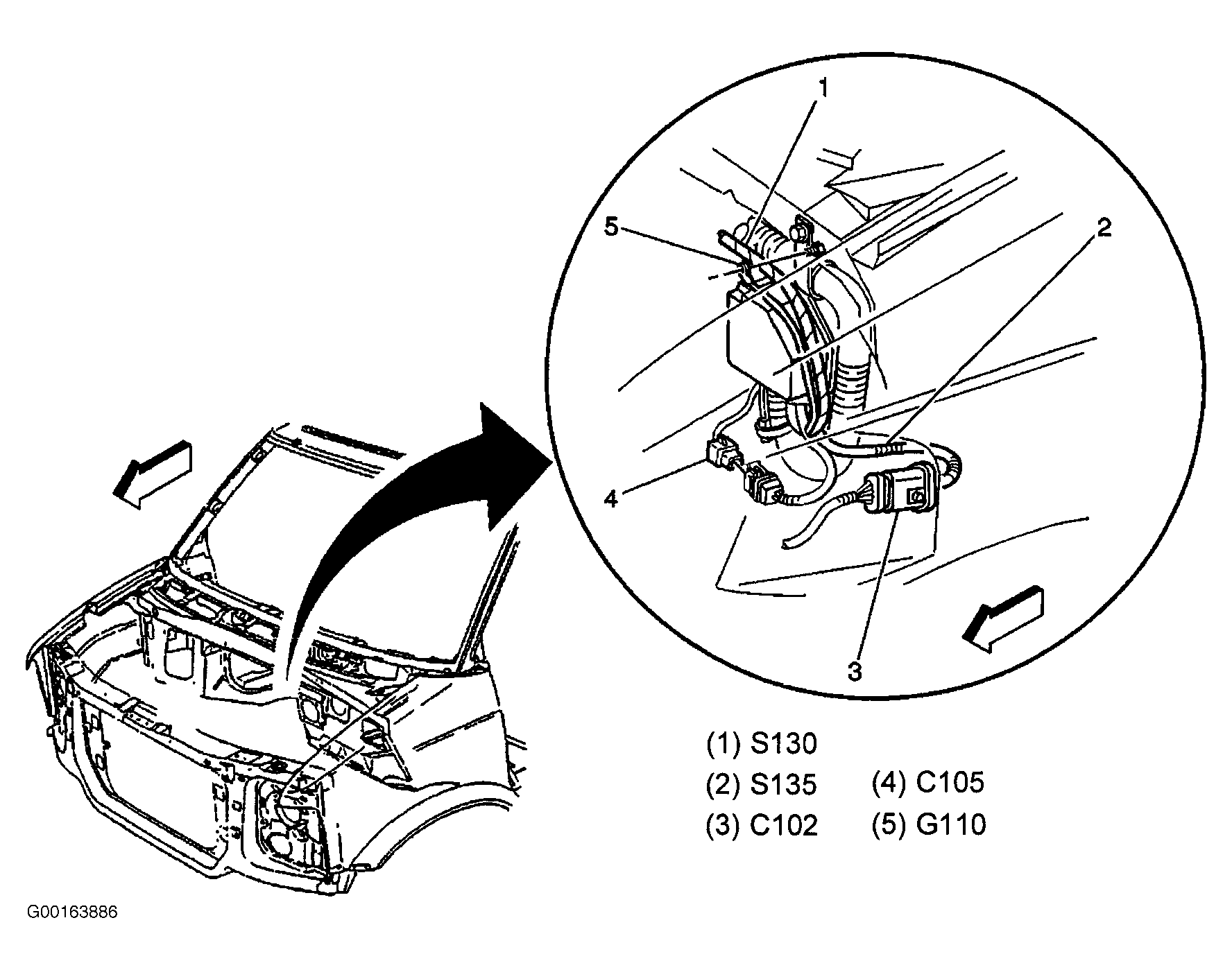

| C105 | Driver Side Of Dash, Under Underhood Fuse & Relay Center. See Fig 9 |
| C200 | Under Driver Side Kick Panel, Near C100. See Fig 5 |
| C224 | In Convenience Center |

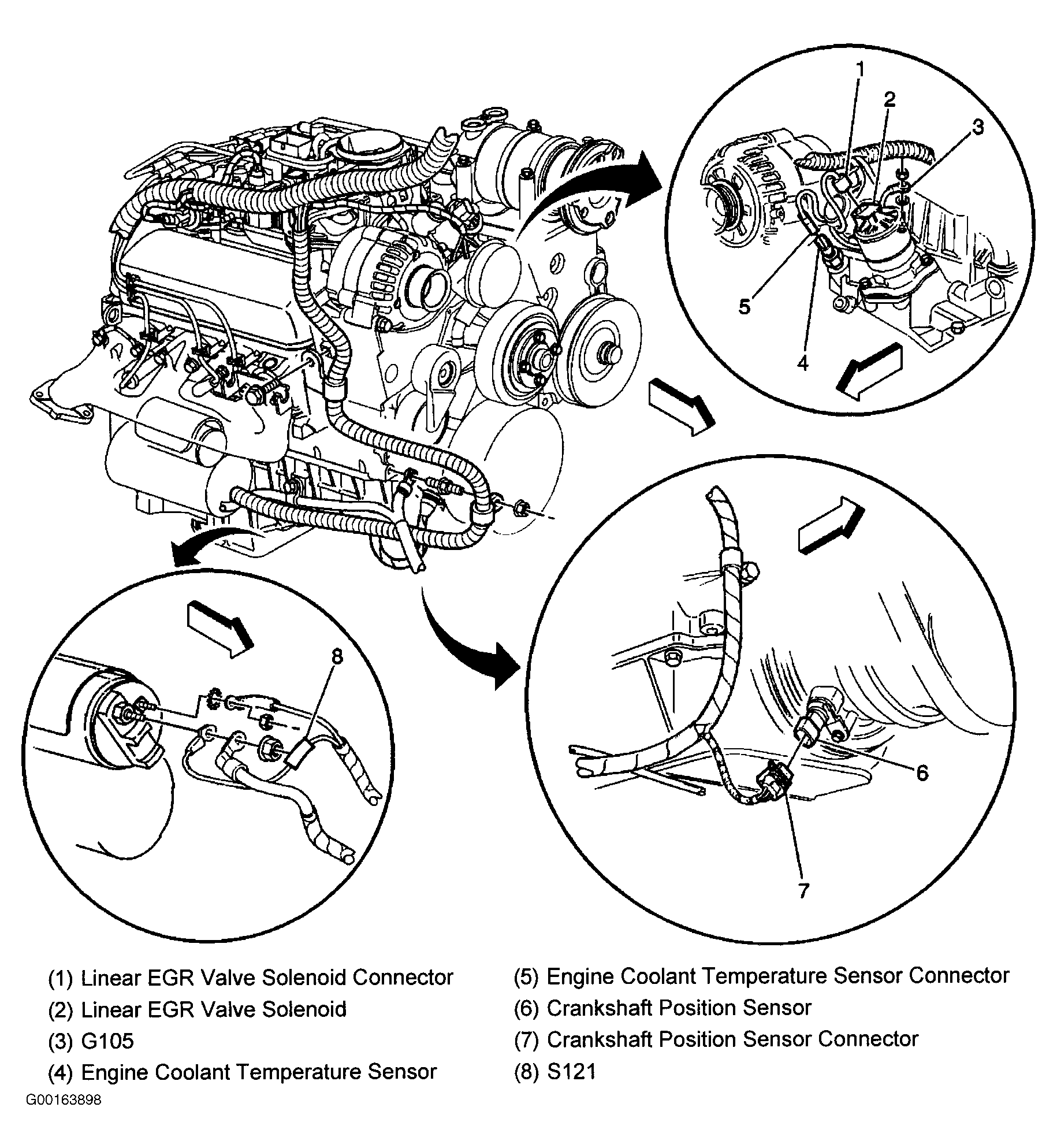

| G105 | On Thermostat Housing. See Fig 10 |

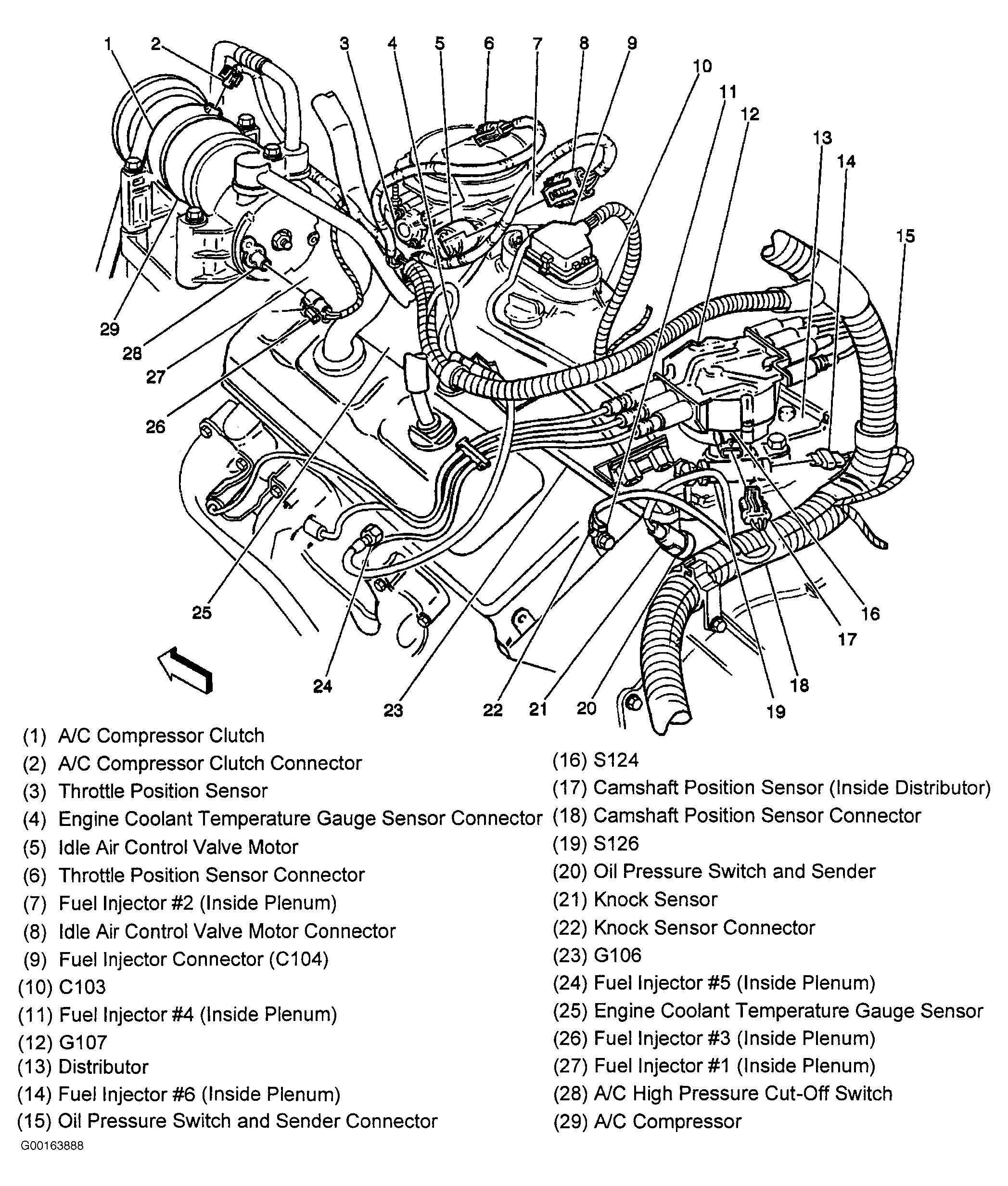

| G107 | Driver Rear Of Engine Block, Next To Knock Sensor. See Fig 11 |
| G110 | Driver Side Of Dash, Above Battery. See Fig 9 |
| P100 | Driver Rear Of Dash, Left Of Bulkhead. See Fig 8 |

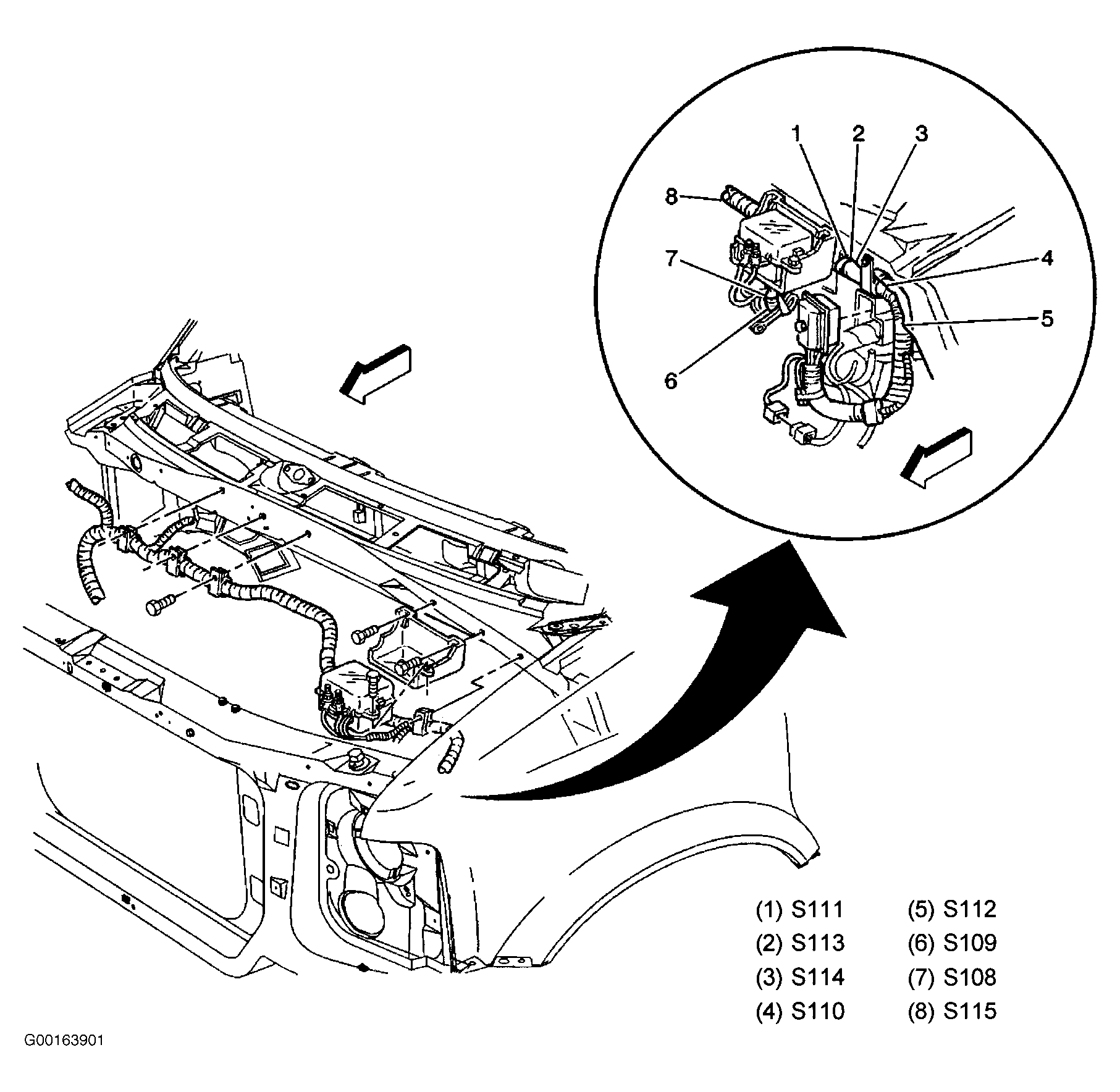

| S113 | Engine Harness, Near Underhood Fuse & Relay Center Breakout. See Fig 12 |
| S117 | Engine Harness, Near A/C Low Pressure Cutoff Switch Breakout, Towards Engine |
| S204 | Instrument Panel Harness, Near C100 Connector, Towards Passenger Side Of Dash |
| S206 | Instrument Panel Harness, Near C201 Connector, Towards C100. See Fig 13 |
| S210 | Instrument Panel Harness, Near C201 Connector Breakout, Towards Passenger Side Of Dash. See Fig 13 |
| S233 | Instrument Panel Harness, Near DLC Breakout, Towards DLC. See Fig 3 |
