Connector Terminal Identification
>>
Stop Lamp Switch C2 (Brake Transmission Shift Interlock/Torque Converter Clutch)
Stop Lamp Switch C2 (Brake Transmission Shift Interlock/Torque Converter Clutch)

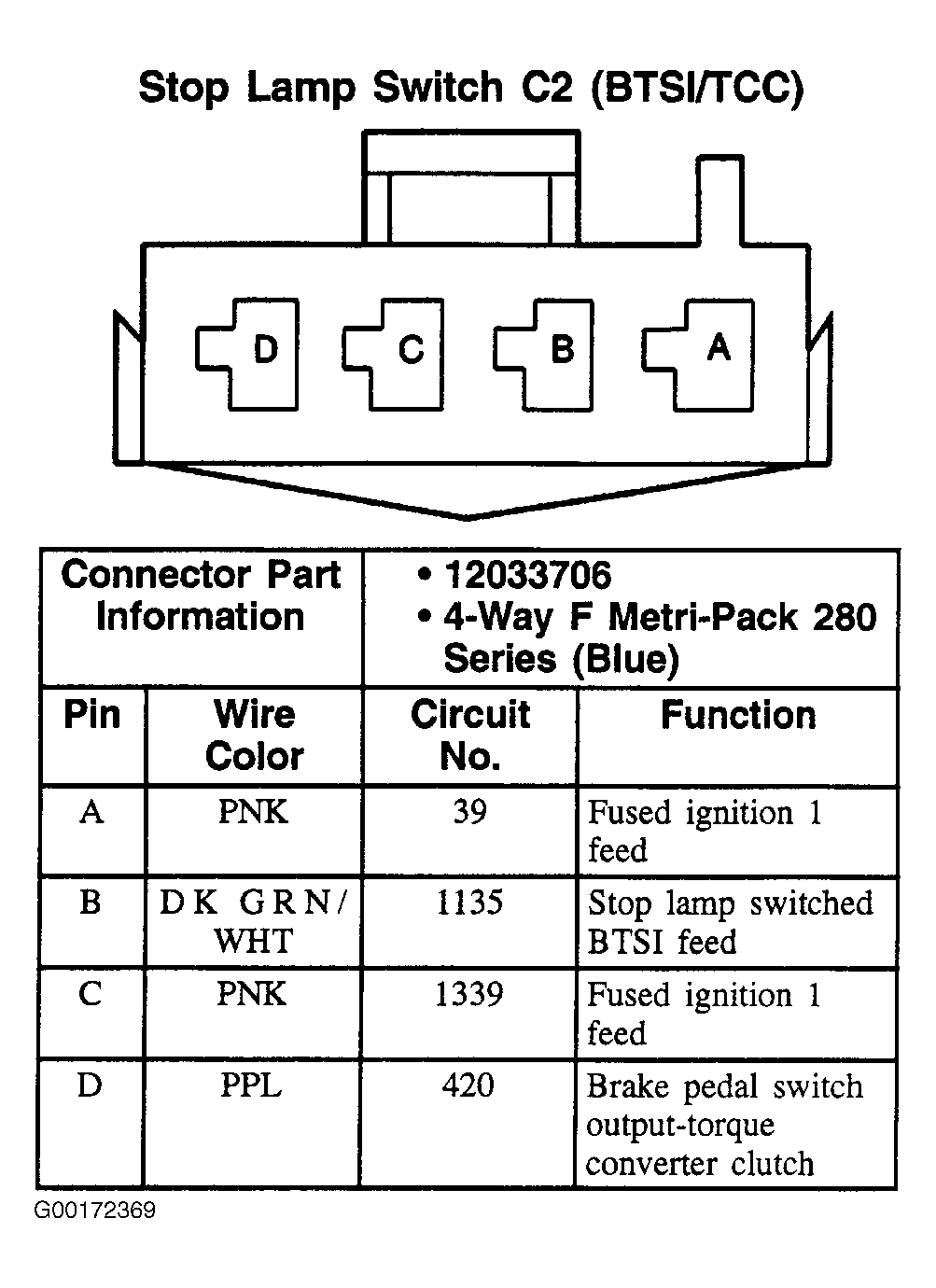

Fig 1: Stop Lamp Switch C2 (Brake Transmission Shift Interlock/Torque Converter Clutch) - 4-Pin Connector (Blue)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
