UNDERHOOD Fuse-Relay Center

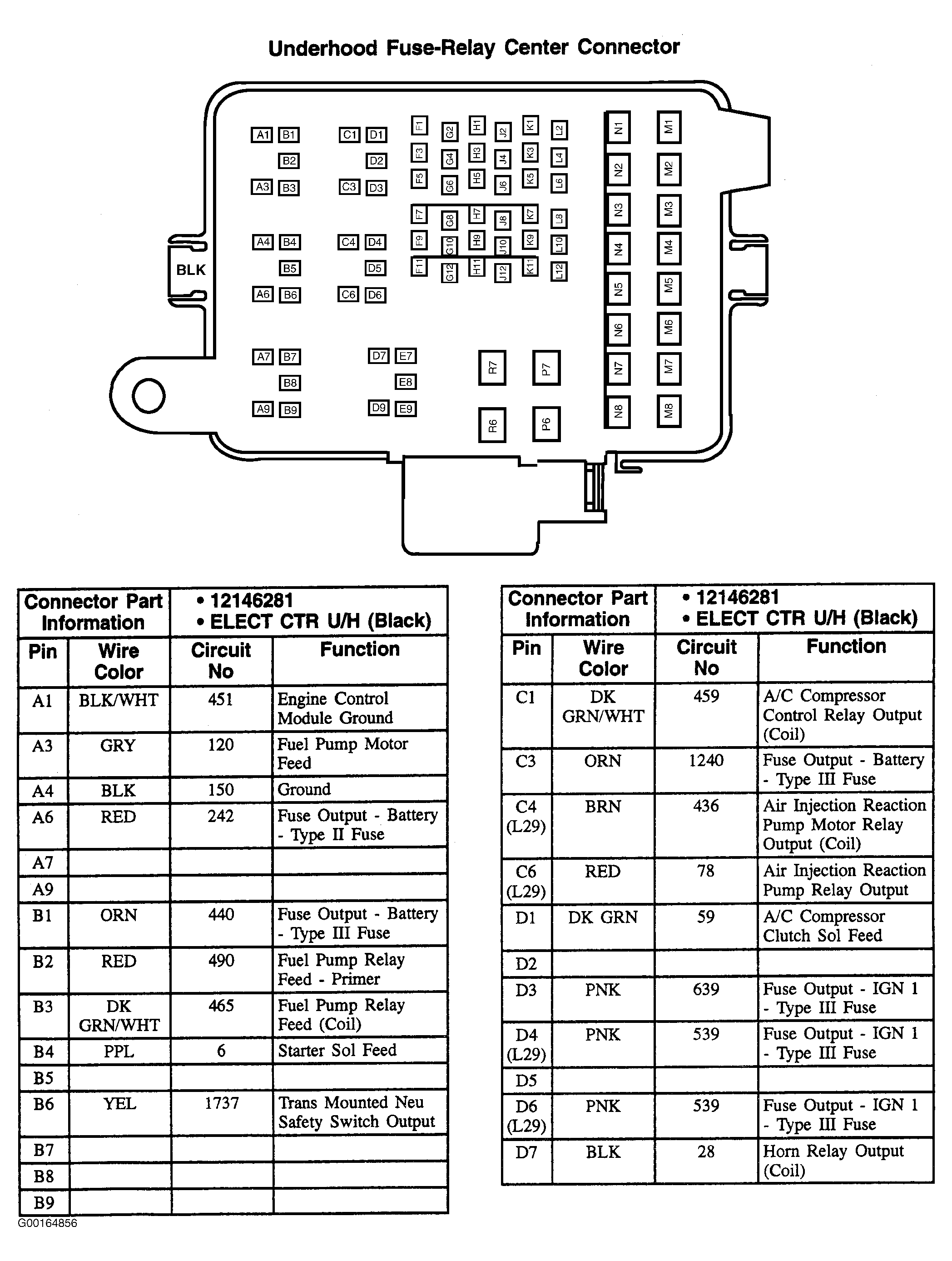

Fig 1: Underhood Fuse-Relay Center - 86-Pin Connector, Black (1 Of 2)
G00164856Courtesy of GENERAL MOTORS CORP.

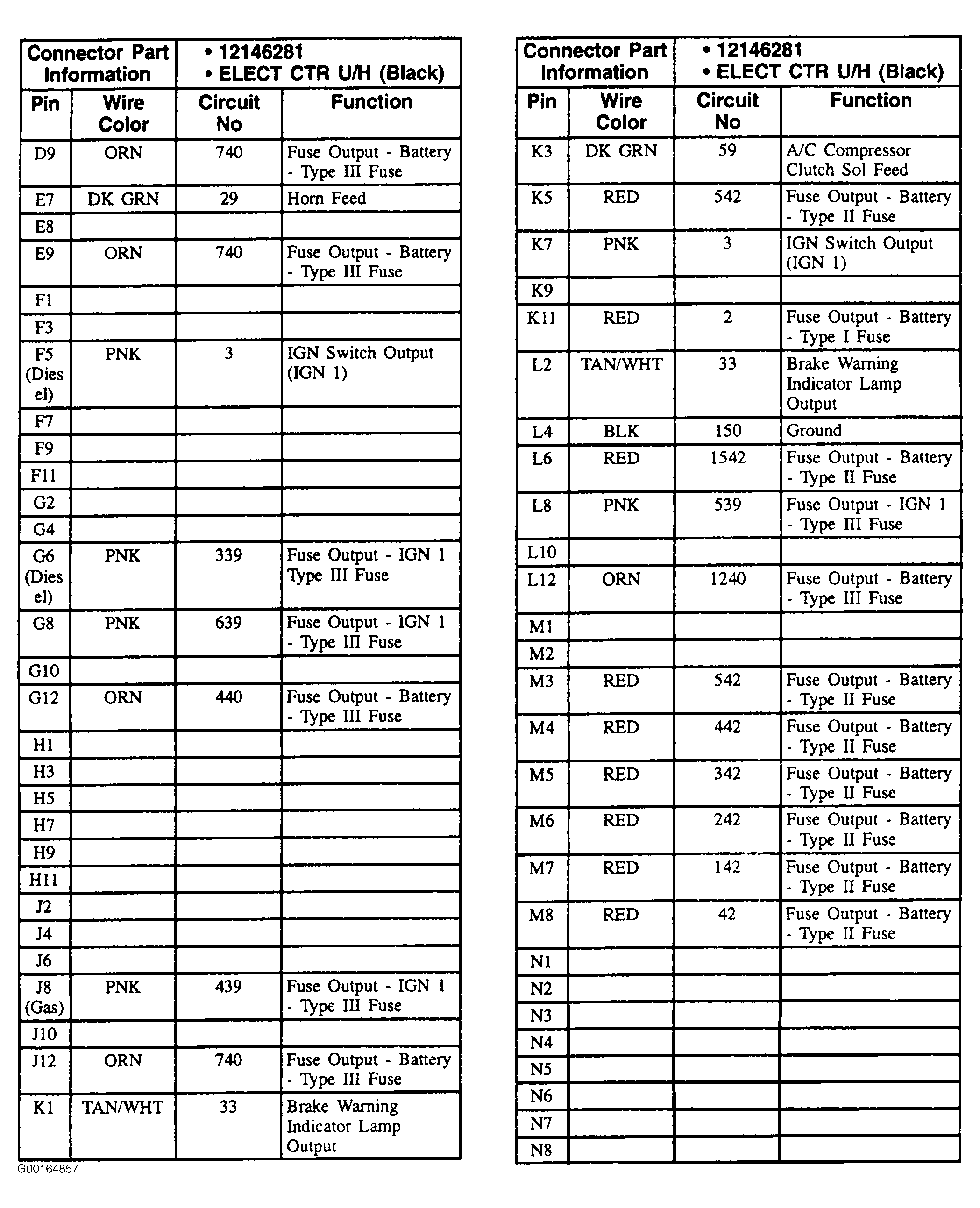

Fig 2: Underhood Fuse-Relay Center - 86-Pin Connector, Black (2 Of 2)
G00164857Courtesy of GENERAL MOTORS CORP.
