Connector Terminal Identification (G Series)
>>
Mass Air Flow (MAF) Sensor
Mass Air Flow (MAF) Sensor

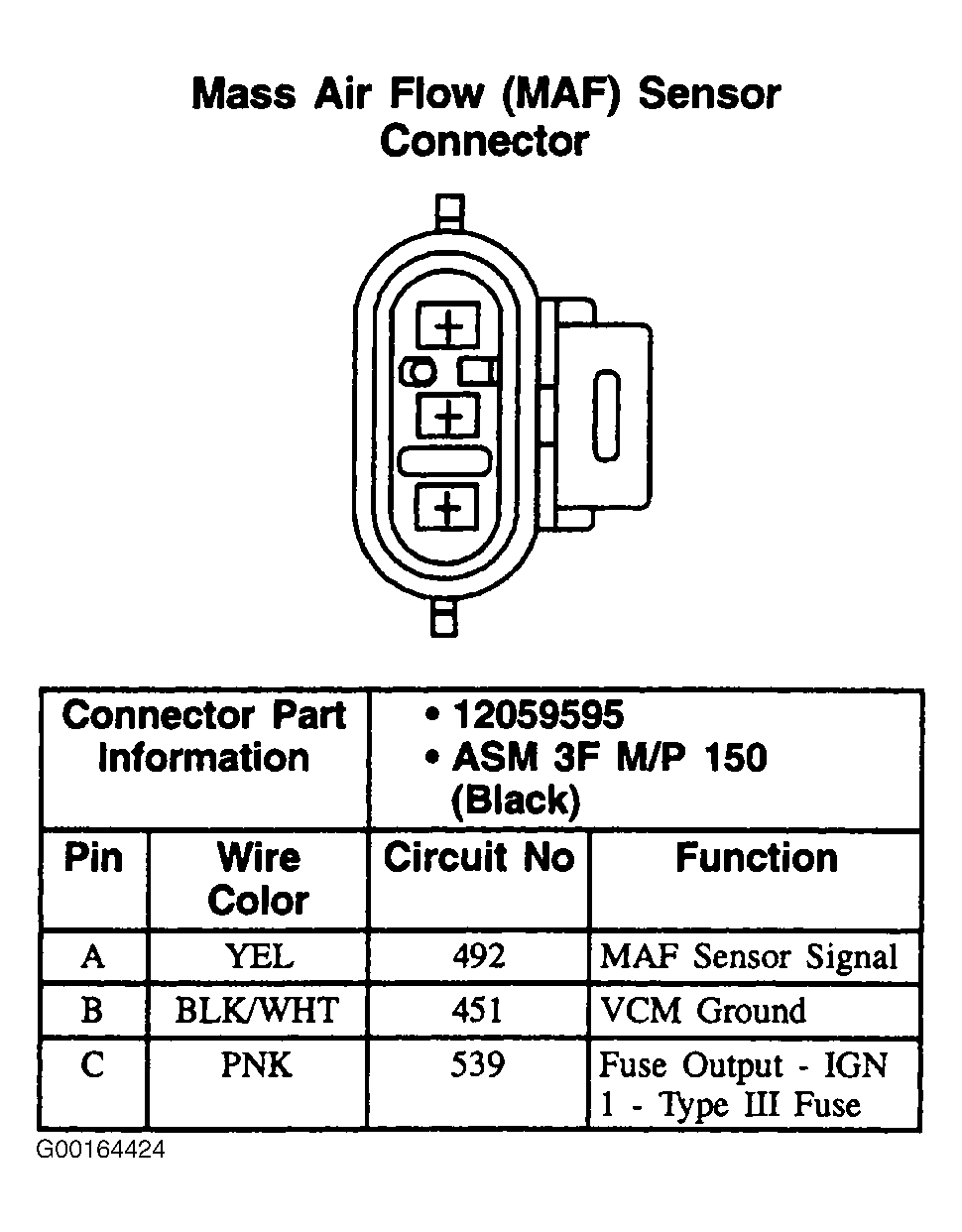

Fig 1: Mass Air Flow (MAF) Sensor - 3-Pin Connector, Black
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
