Connector Terminal Identification (G Series)
>>
Boost Pressure Sensor (Diesel)
Boost Pressure Sensor (Diesel)

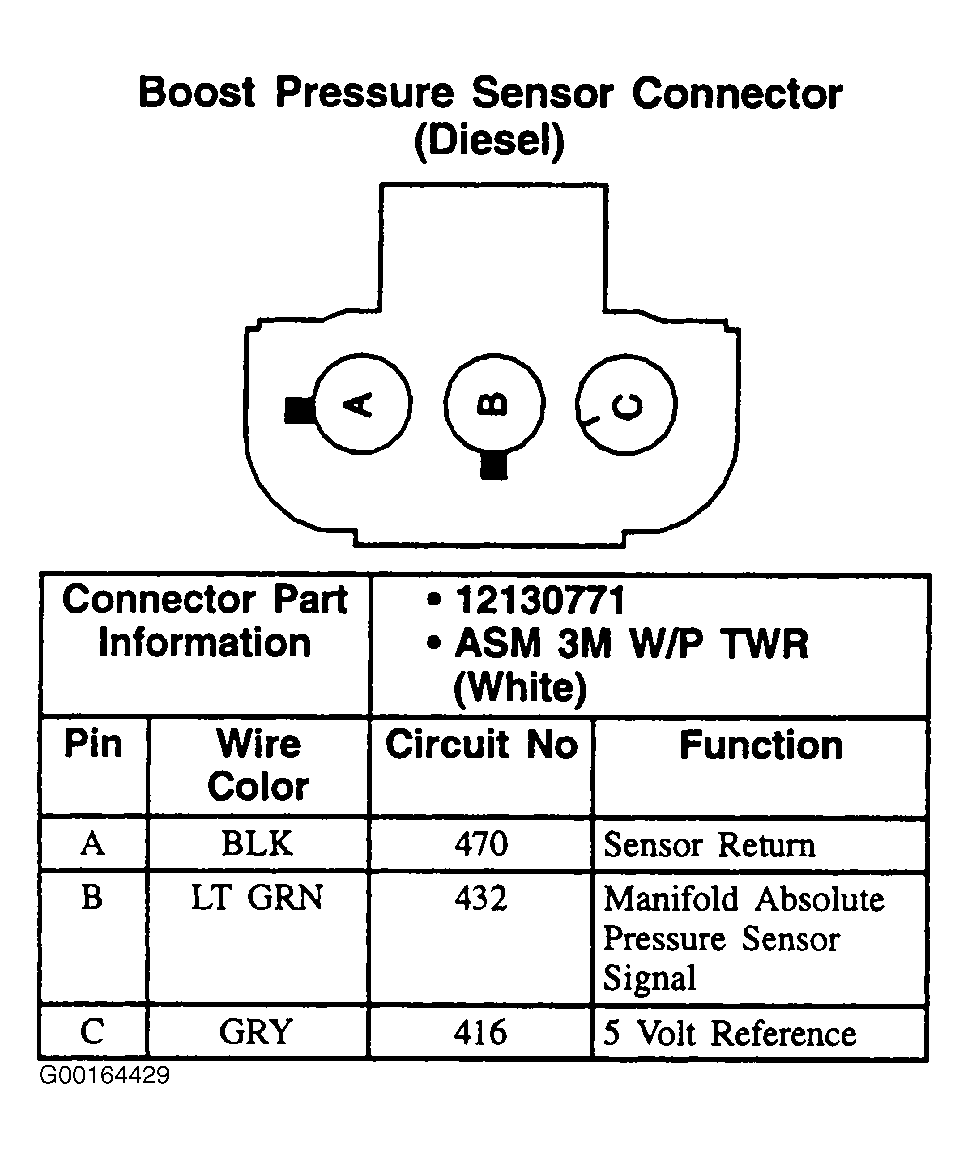

Fig 1: Boost Pressure Sensor (Diesel) - 3-Pin Connector, White
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
