A/C Compressor High Pressure Cutoff Switch

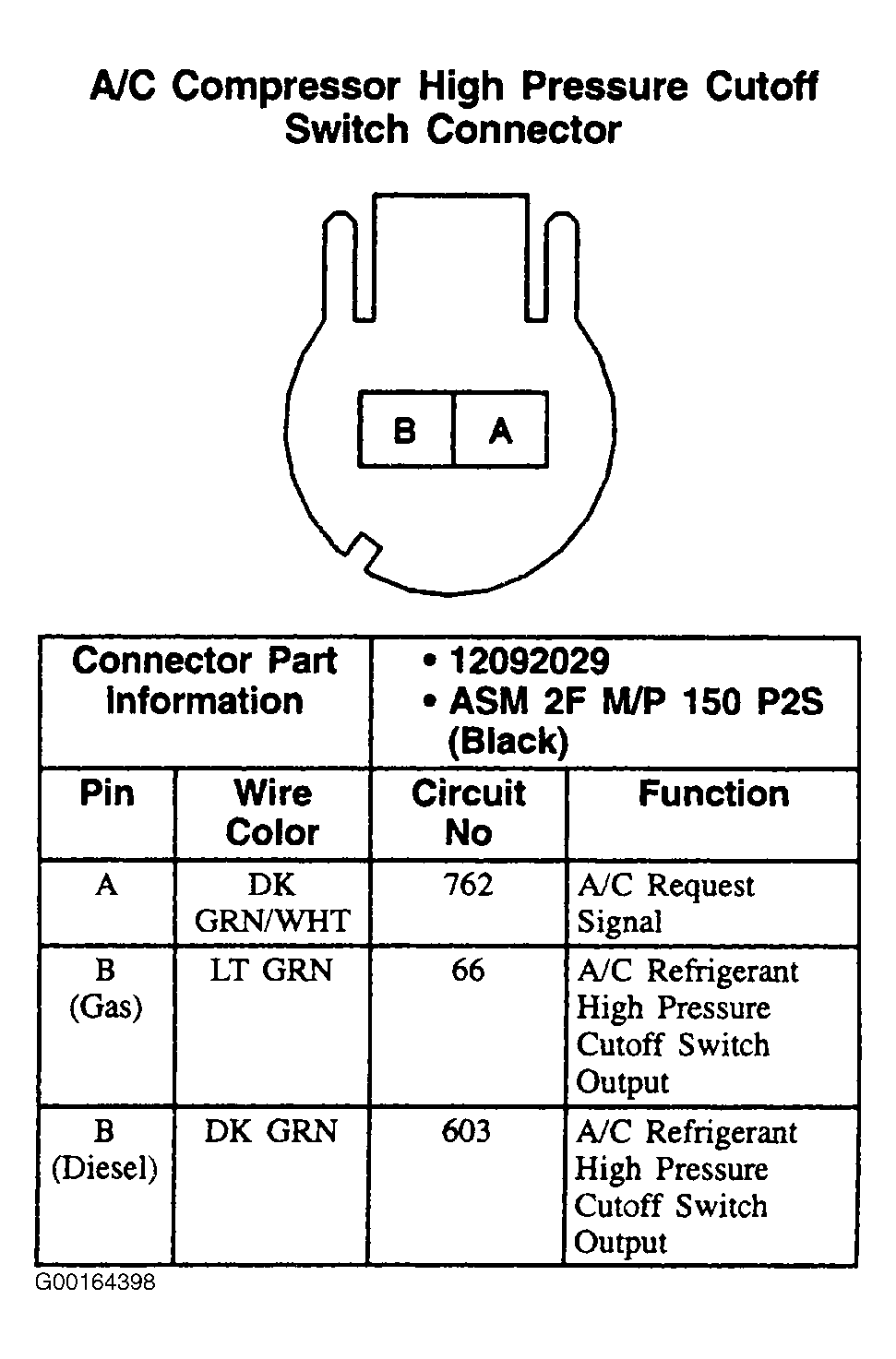

Fig 1: A/C Compressor High Pressure Cutoff Switch - 2-Pin Connector, Black

G00164398

Courtesy of GENERAL MOTORS CORP.
