A/C Compressor Clutch

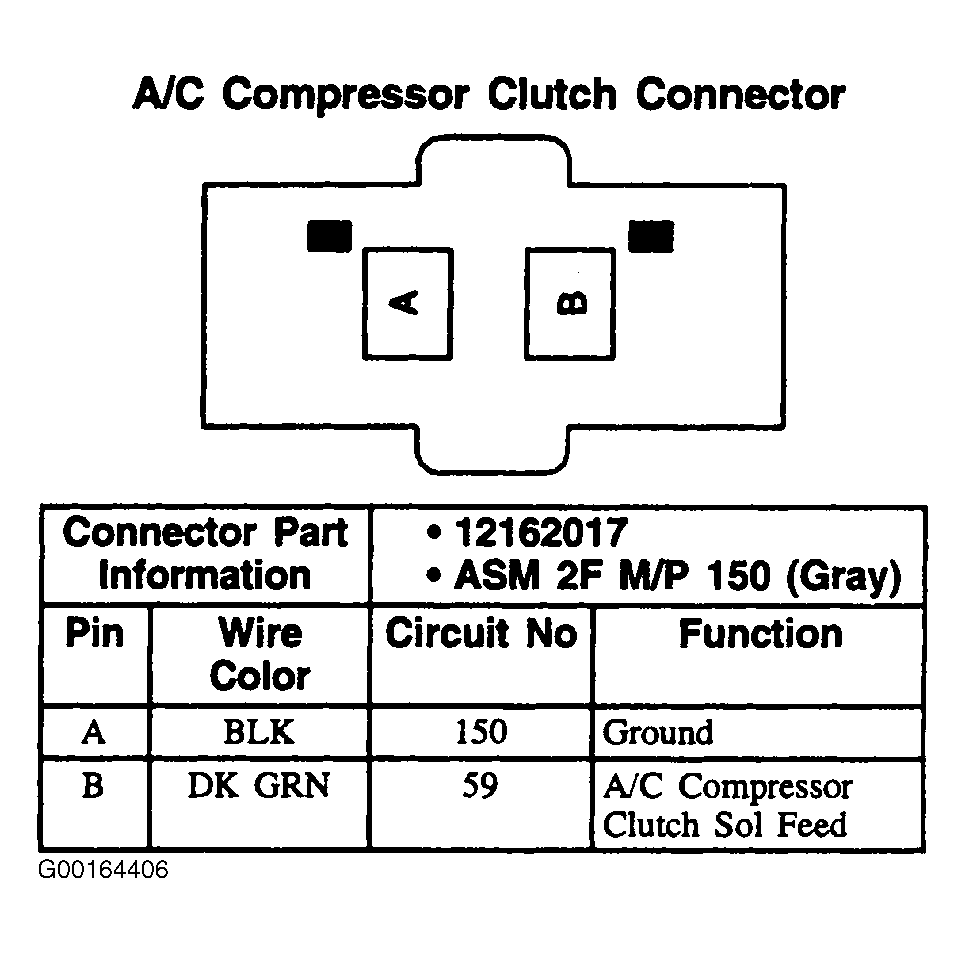

Fig 1: A/C Compressor Clutch - 2-Pin Connector, Gray

G00164406

Courtesy of GENERAL MOTORS CORP.
