Unable To Program Remote Control Door Lock Receiver
Unable To Program Remote Control Door Lock Receiver
Refer to flowchart. See
Fig 1
.

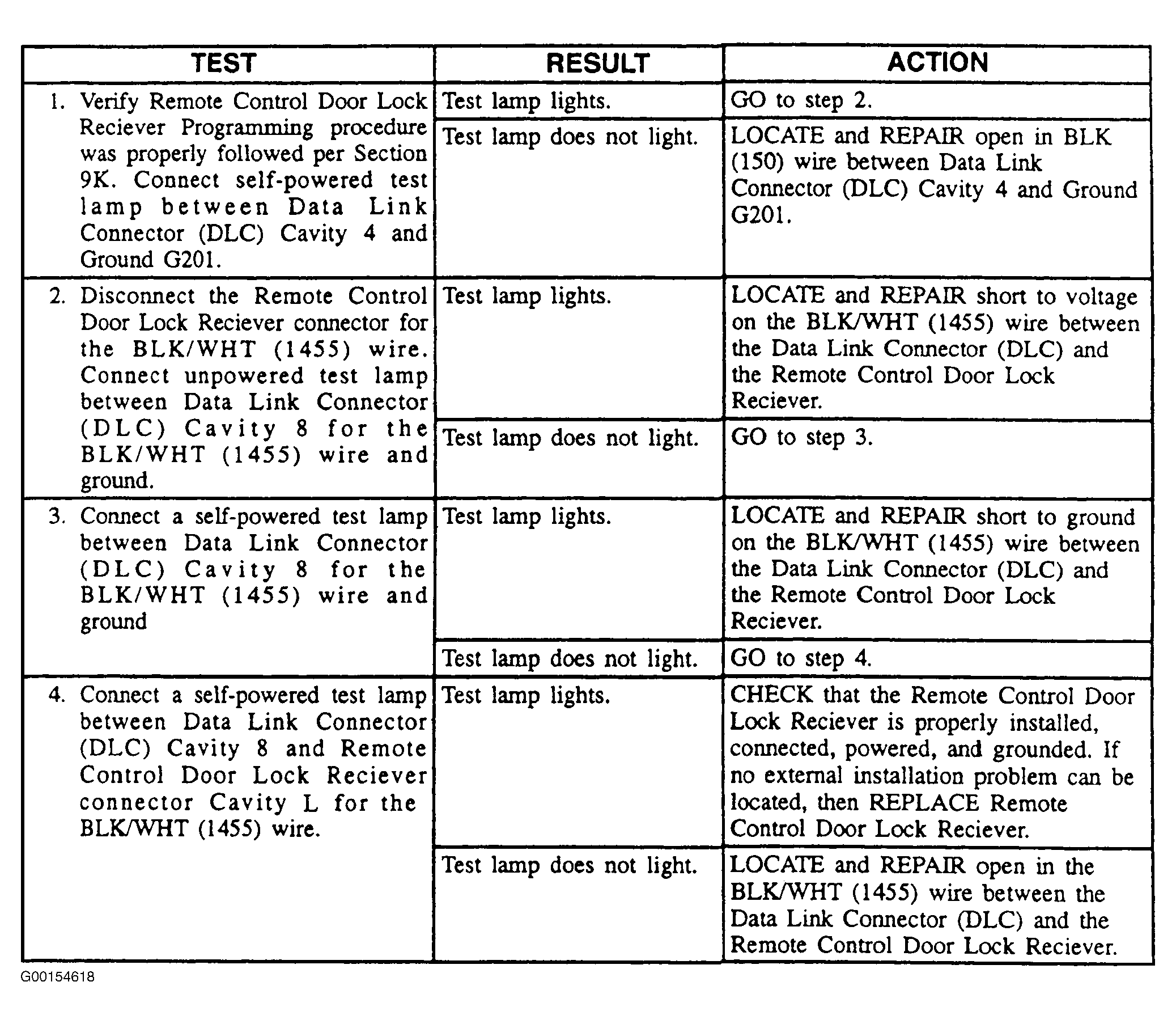

Fig 1: Unable To Program RCDLR For New Transmitter Diagnostic Flowchart
Courtesy of GENERAL MOTORS CORP.
