Unable To Establish Communication With Components

Refer to flowchart. See Fig 1 .

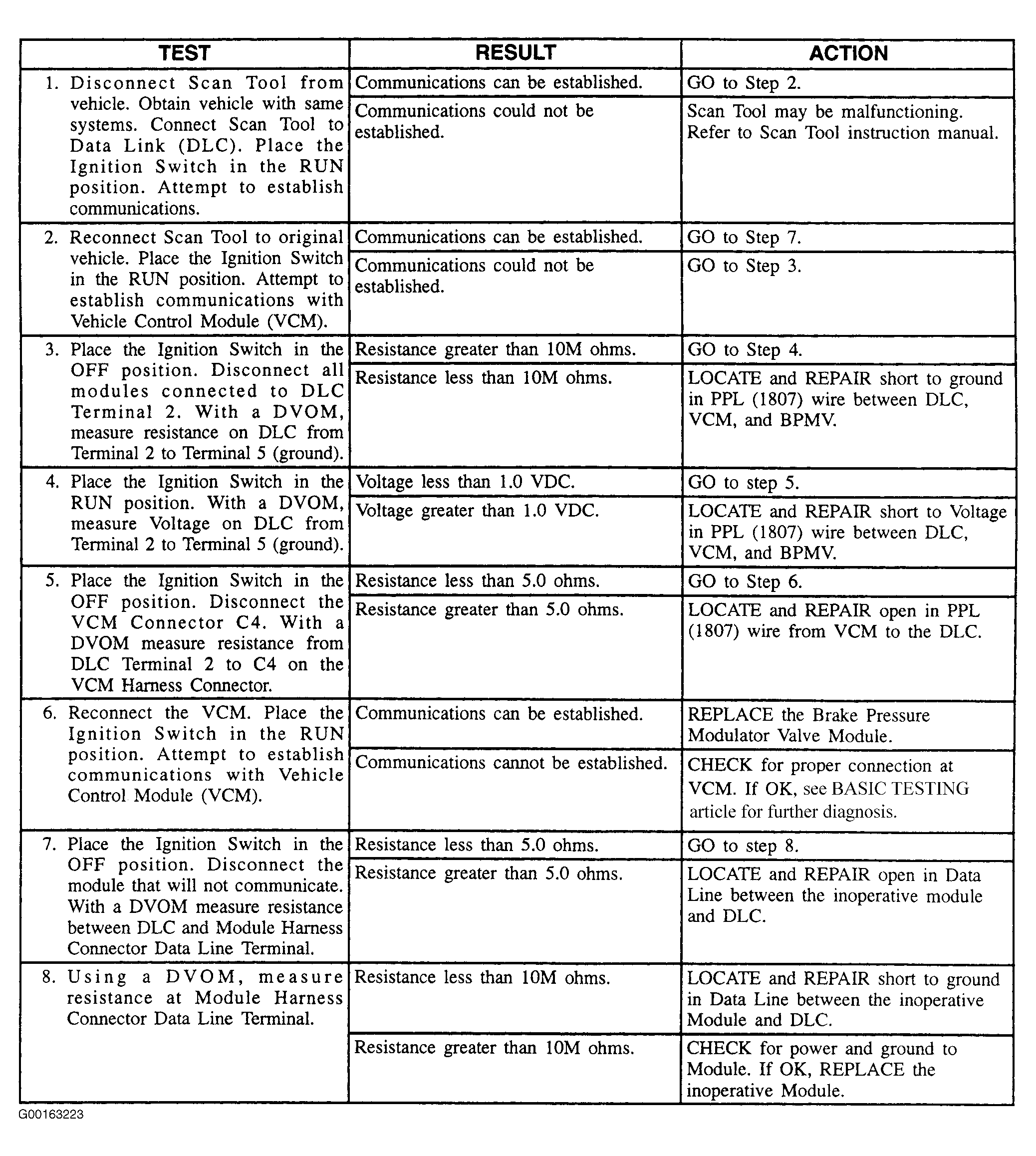

Fig 1: Unable To Establish Communication With Components Diagnostic Flowchart

G00163223

Courtesy of GENERAL MOTORS CORP.
