Diagnostic Aids

Check for poor connections or damaged harness.

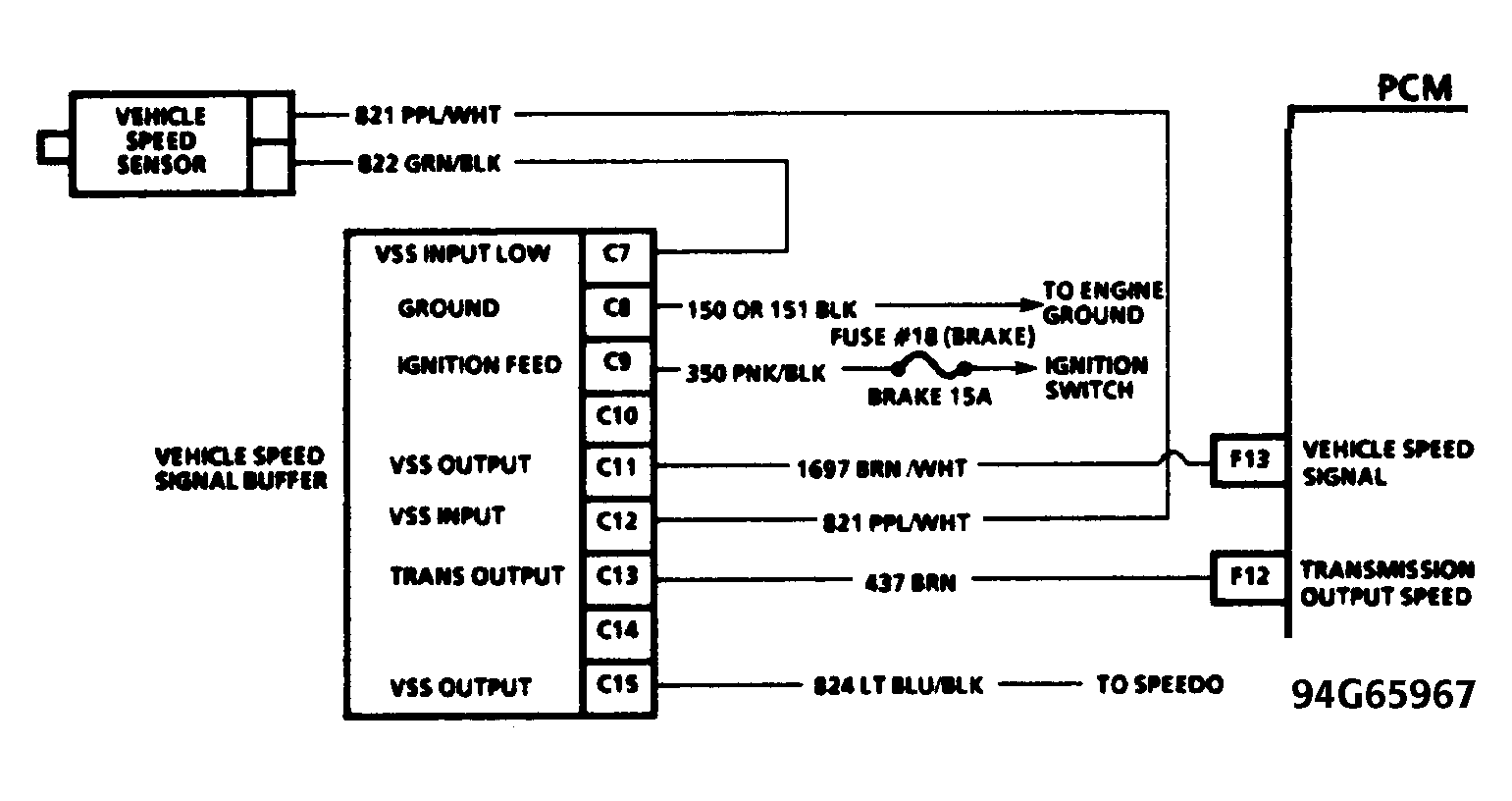

Fig 1: Code 16 Schematic (A/T) VSS Buffer Fault

G94G65967

Fig 2: Code 16 Flow Chart (A/T) VSS Buffer Fault

G93I76354
