Diagnostic Aids

Check connection at fuel injector driver. Clear DTC and cycle ignition. If DTC clears, treat condition as an intermittent.

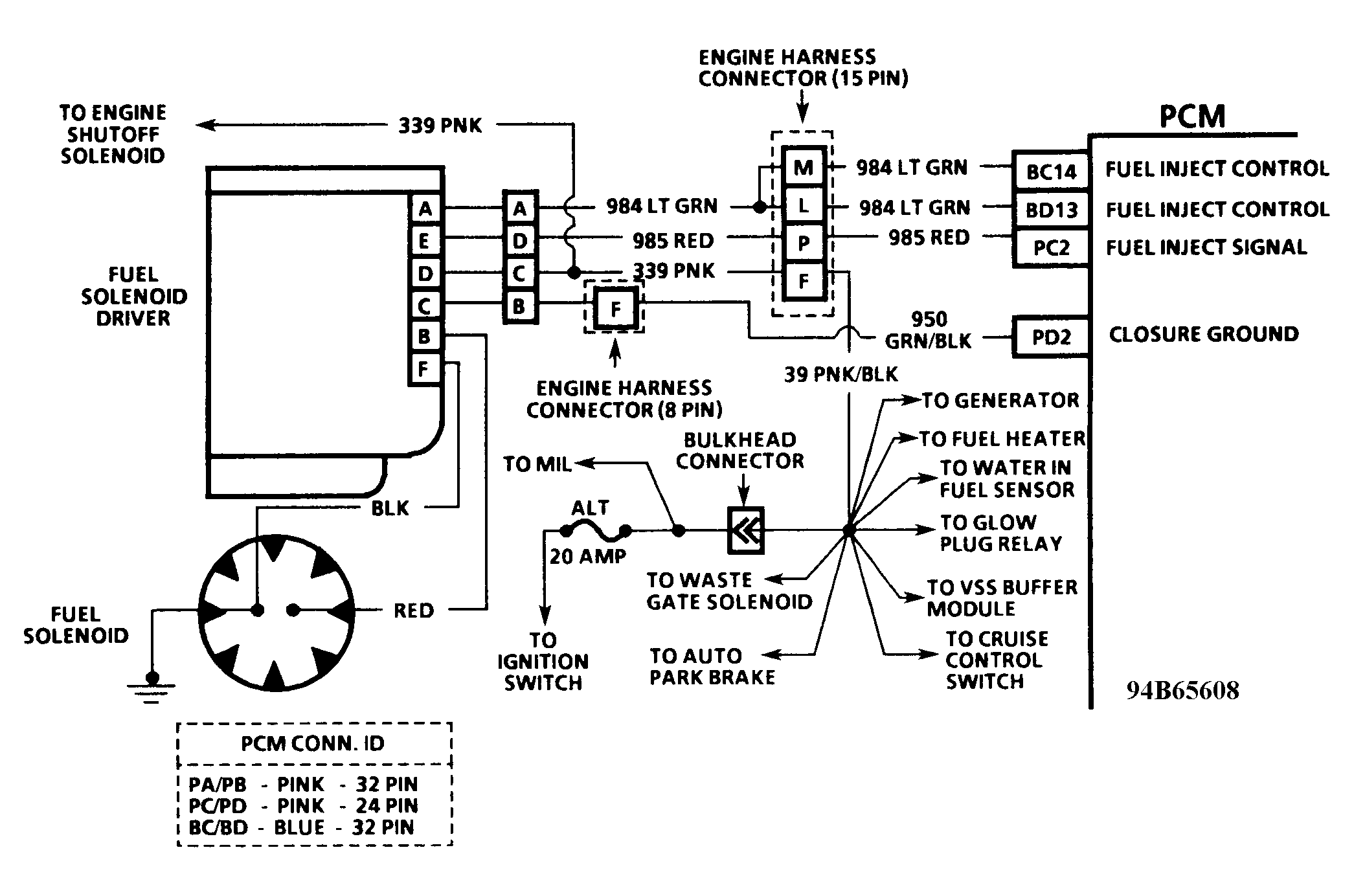

Fig 1: DTC 56 Schematic ("G" Series) Injection Pump Calibration Resistor Error

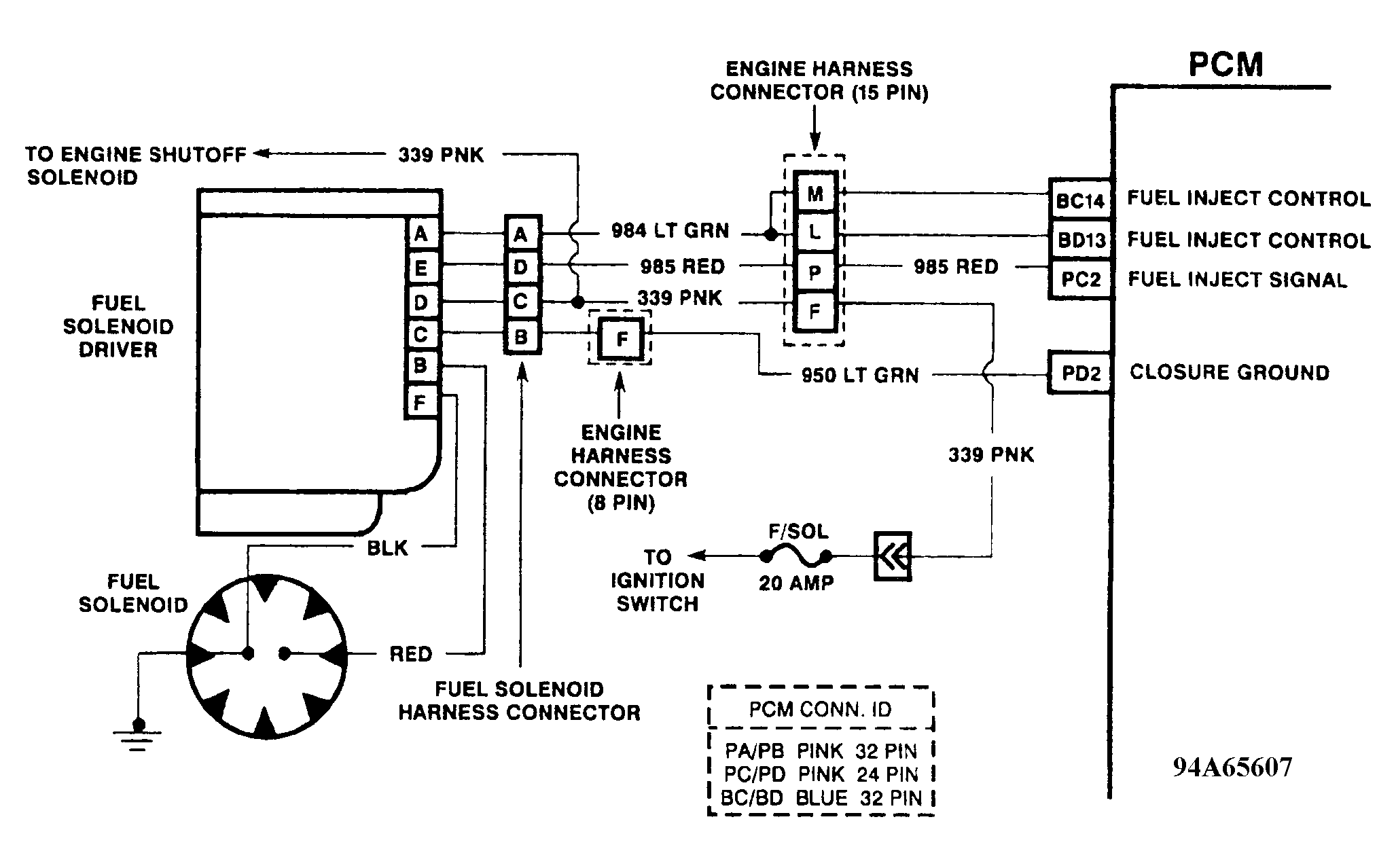

Fig 2: DTC 56 Schematic ("P" Series) Injection Pump Calibration Resistor Error

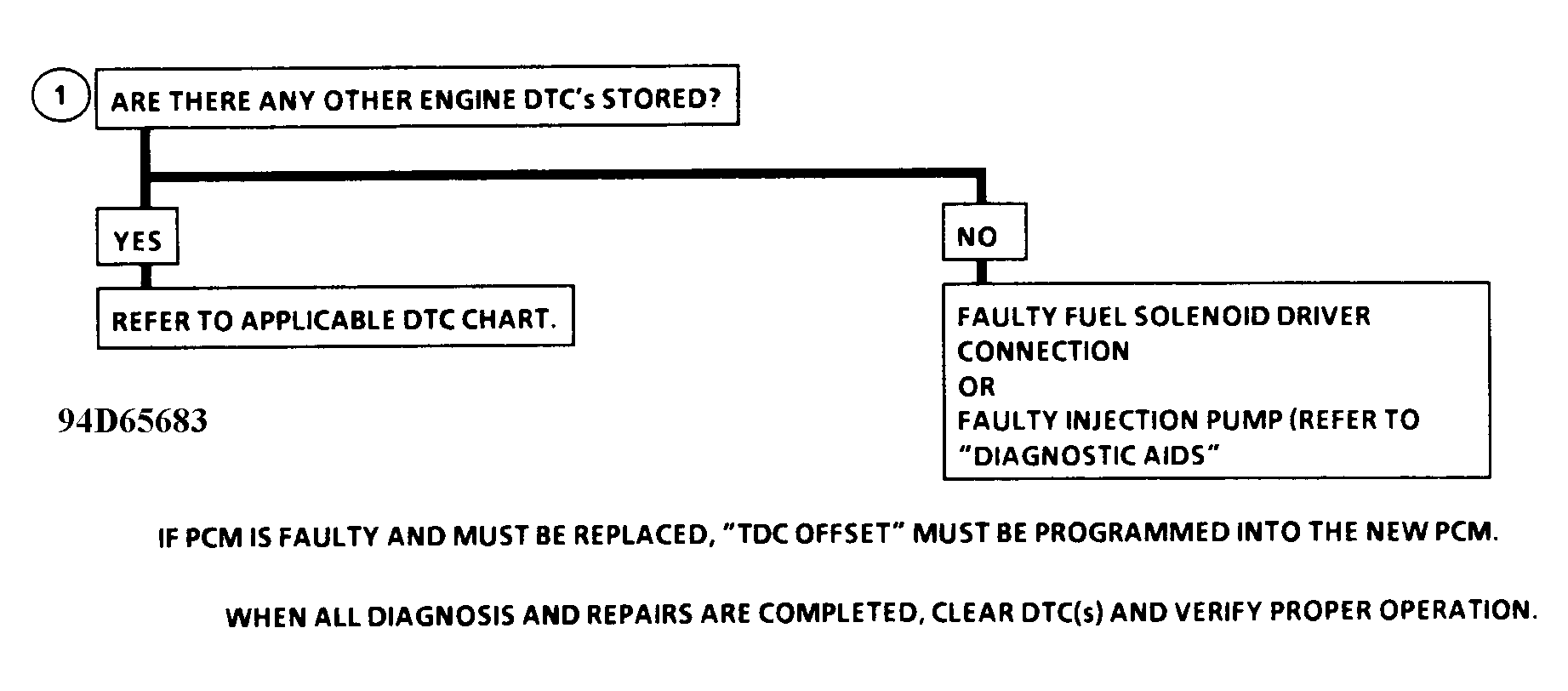

Fig 3: DTC 56 Flow Chart ("G" & "P" Series) Injection Pump Calibration Resistor Error
