Abs/ASR Functional Check

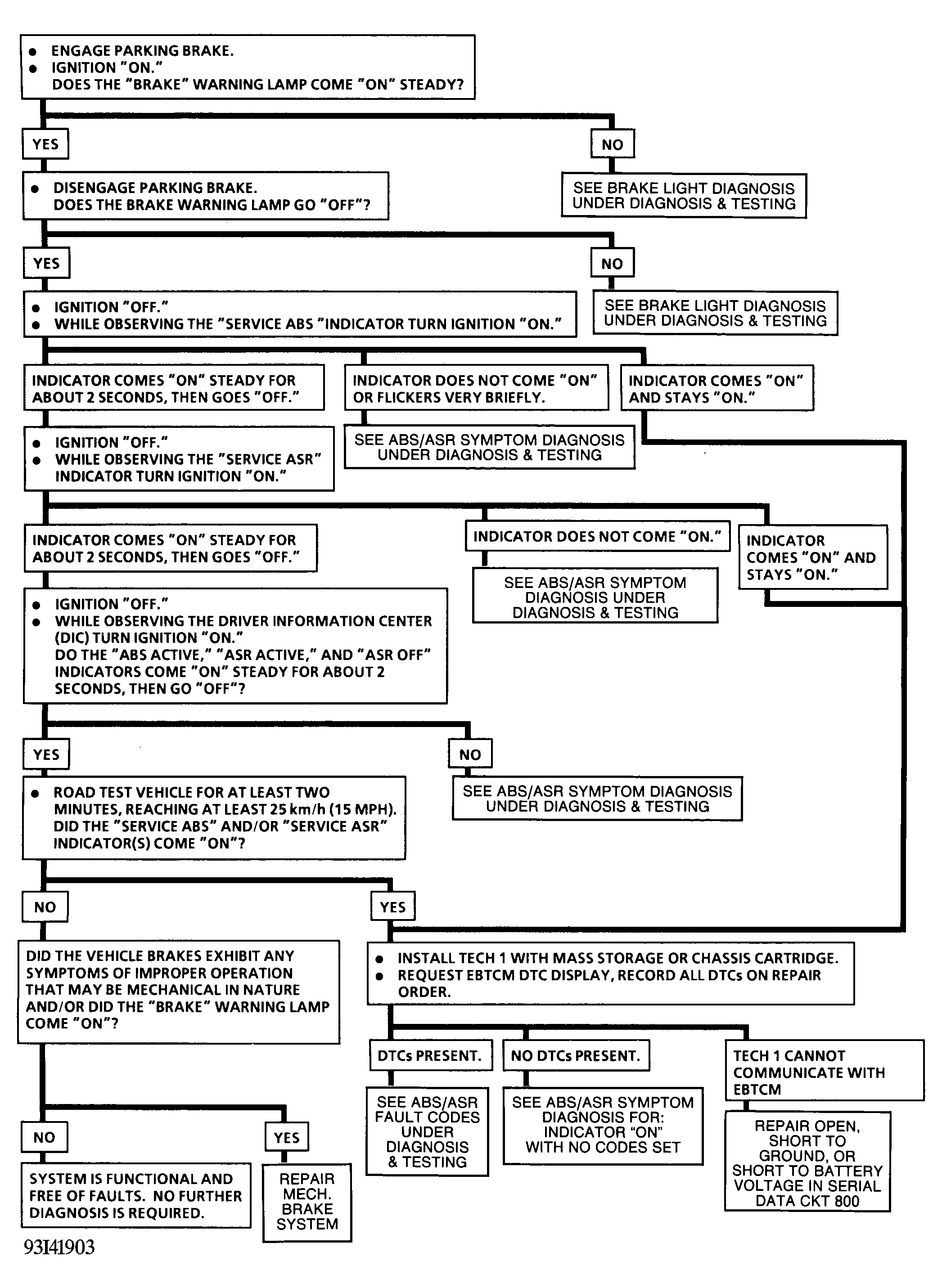

Fig 1: ABS/ASR Functional Check

G93I41903

Courtesy of GENERAL MOTORS CORP.
