Wiring Diagrams

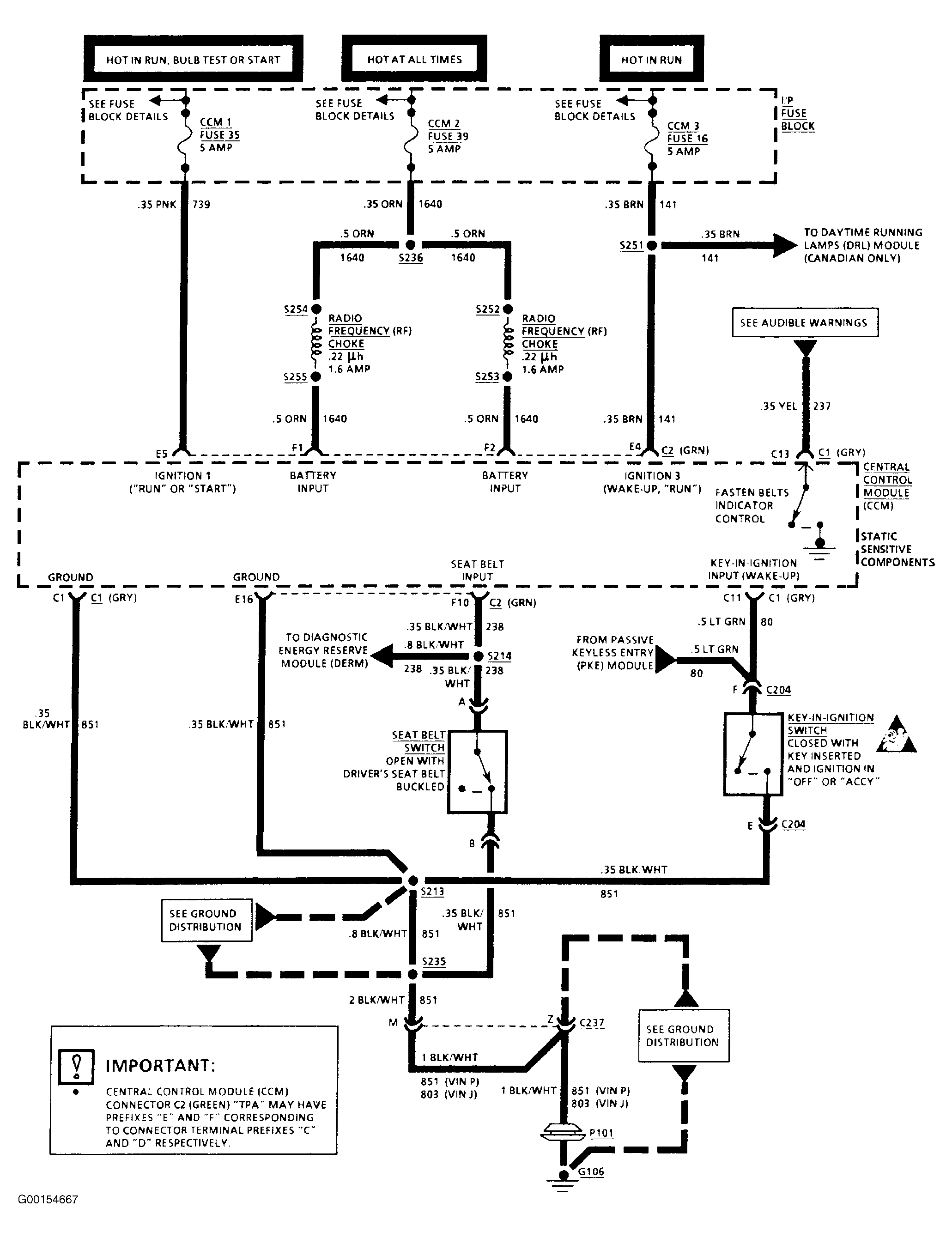

Fig 1: Central Control Module Wiring Diagram - 1994 Corvette (1 Of 6)
G00154667Courtesy of GENERAL MOTORS CORP.

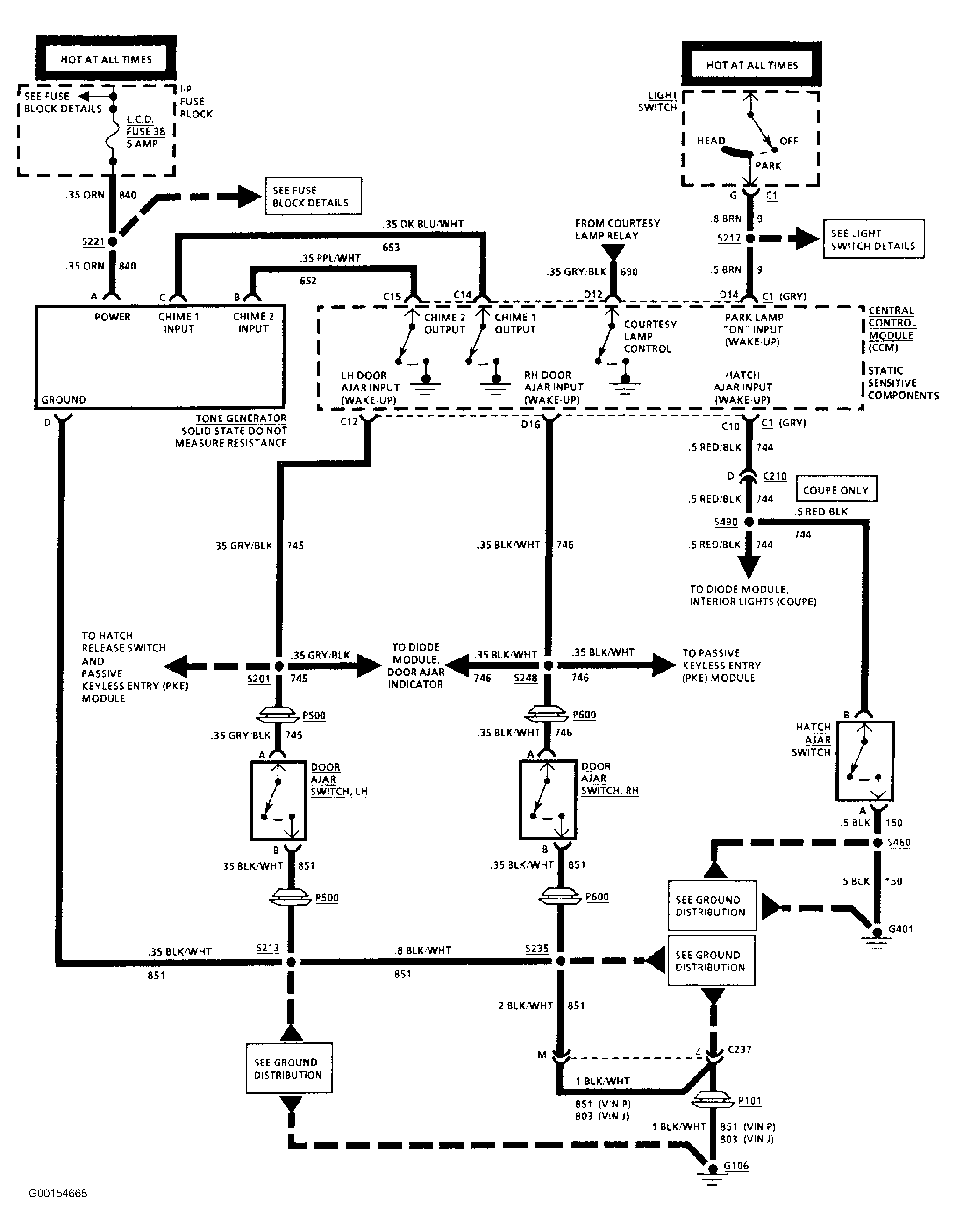

Fig 2: Central Control Module Wiring Diagram - 1994 Corvette (2 Of 6)
G00154668Courtesy of GENERAL MOTORS CORP.

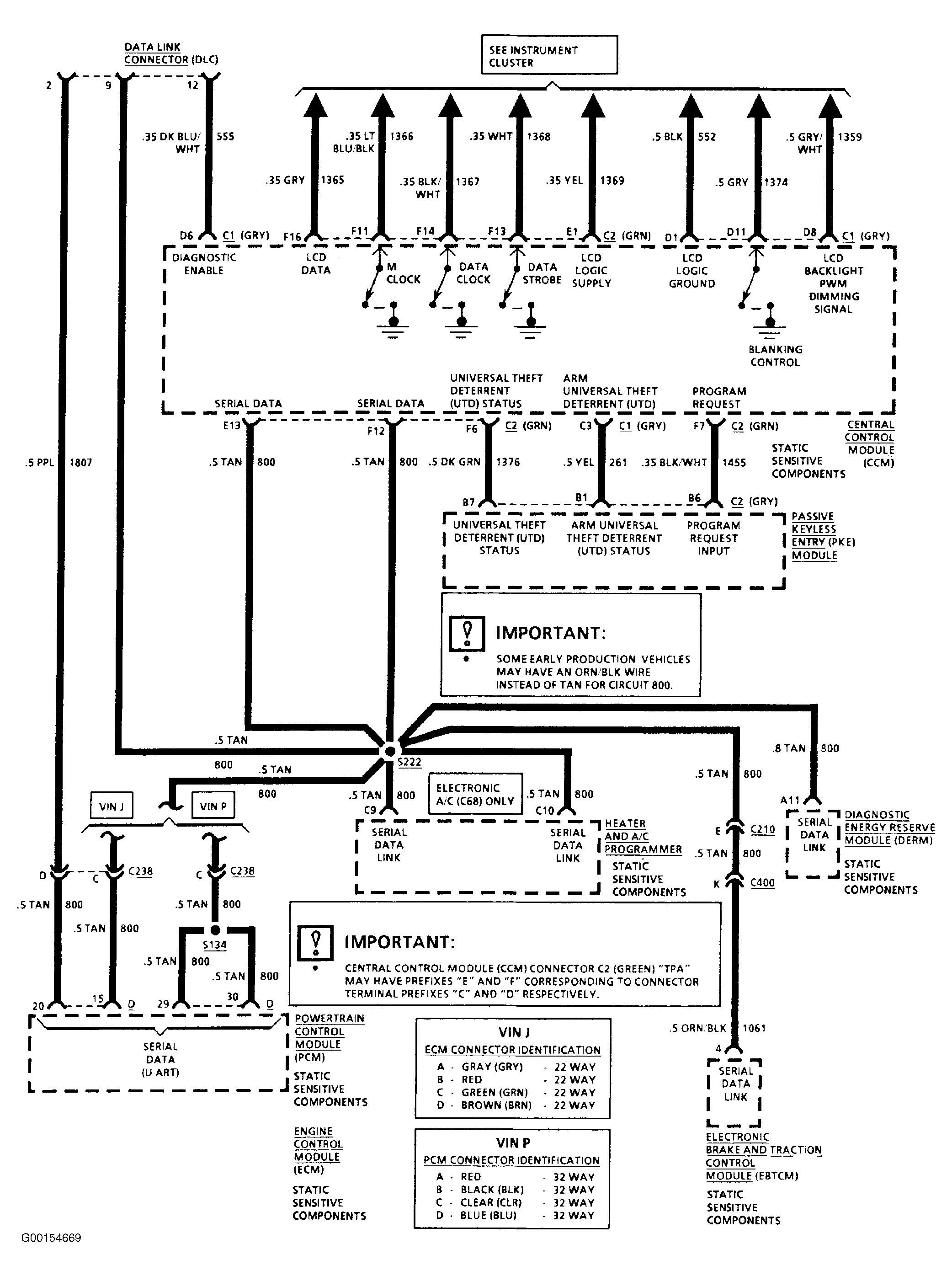

Fig 3: Central Control Module Wiring Diagram - 1994 Corvette (3 Of 6)
G00154669Courtesy of GENERAL MOTORS CORP.

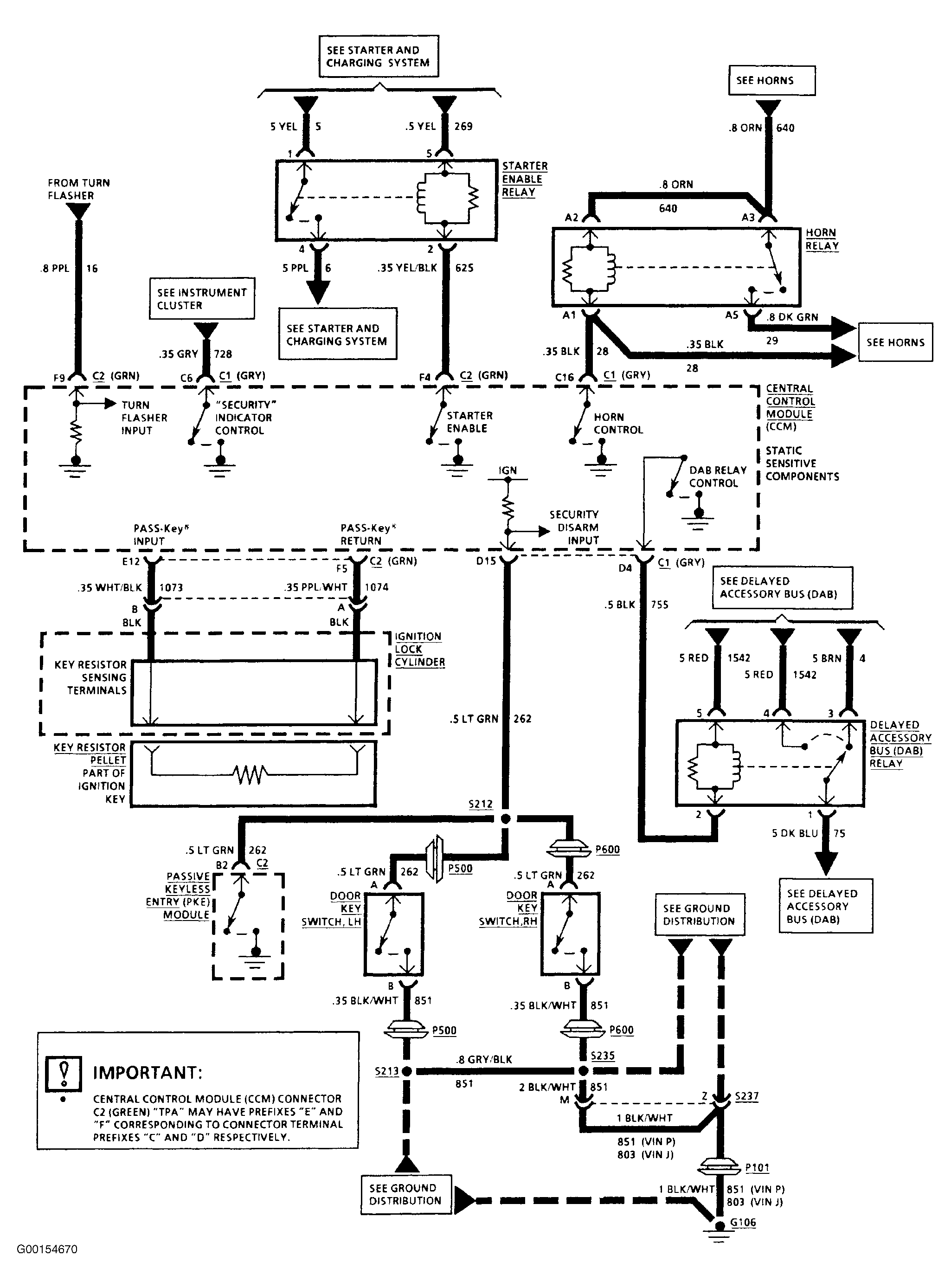

Fig 4: Central Control Module Wiring Diagram - 1994 Corvette (4 Of 6)
G00154670Courtesy of GENERAL MOTORS CORP.

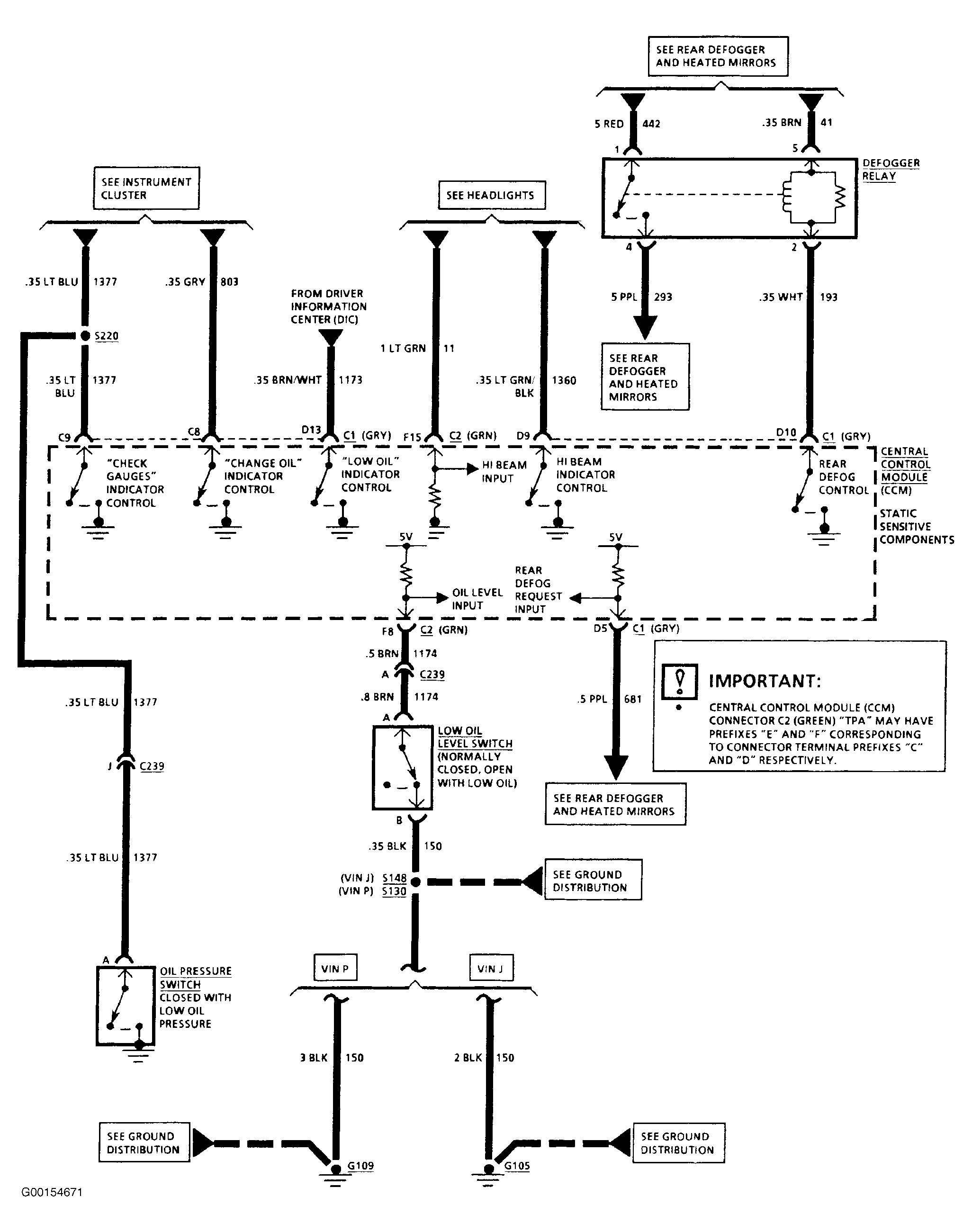

Fig 5: Central Control Module Wiring Diagram - 1994 Corvette (5 Of 6)
G00154671Courtesy of GENERAL MOTORS CORP.

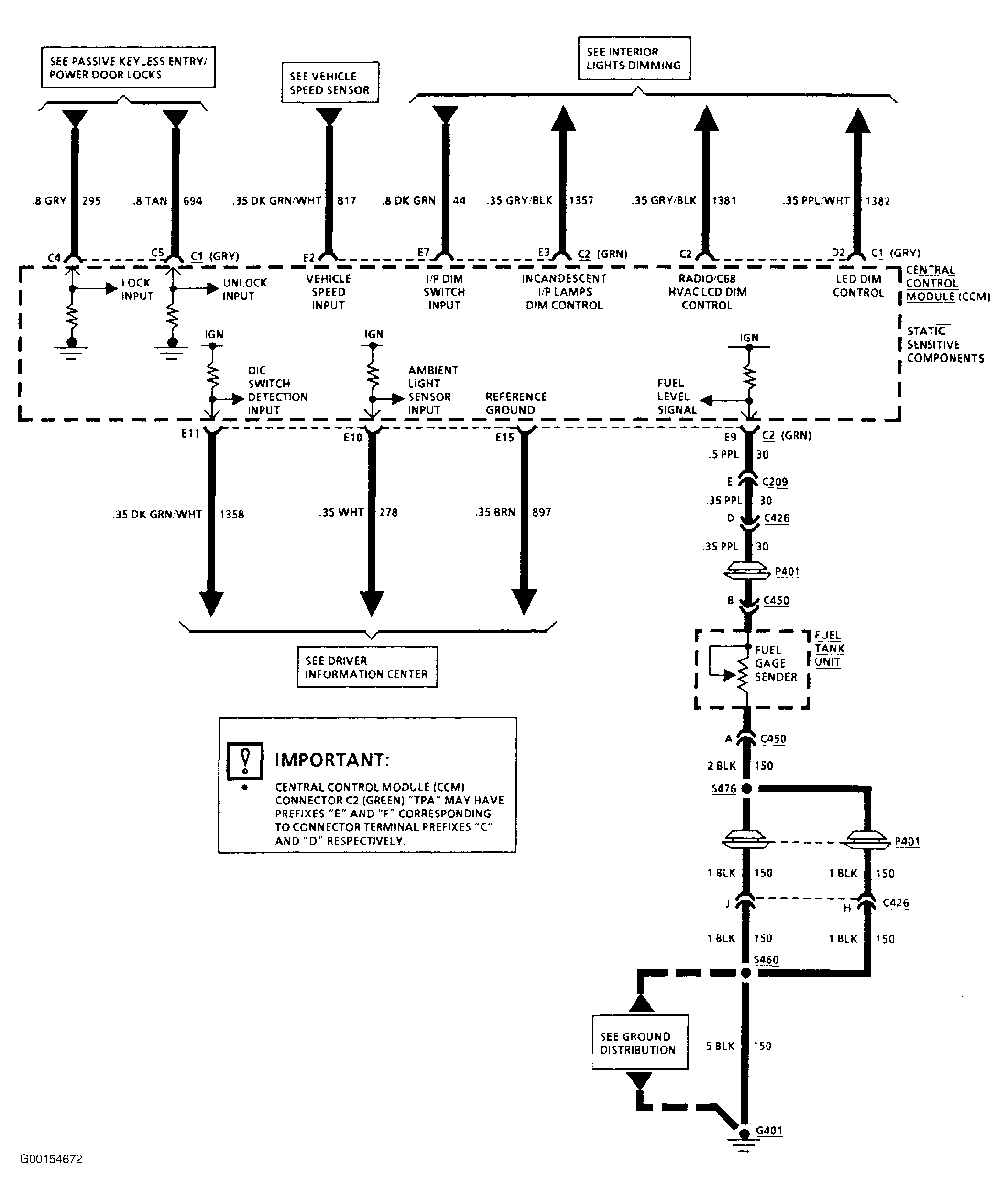

Fig 6: Central Control Module Wiring Diagram - 1994 Corvette (6 Of 6)
G00154672Courtesy of GENERAL MOTORS CORP.

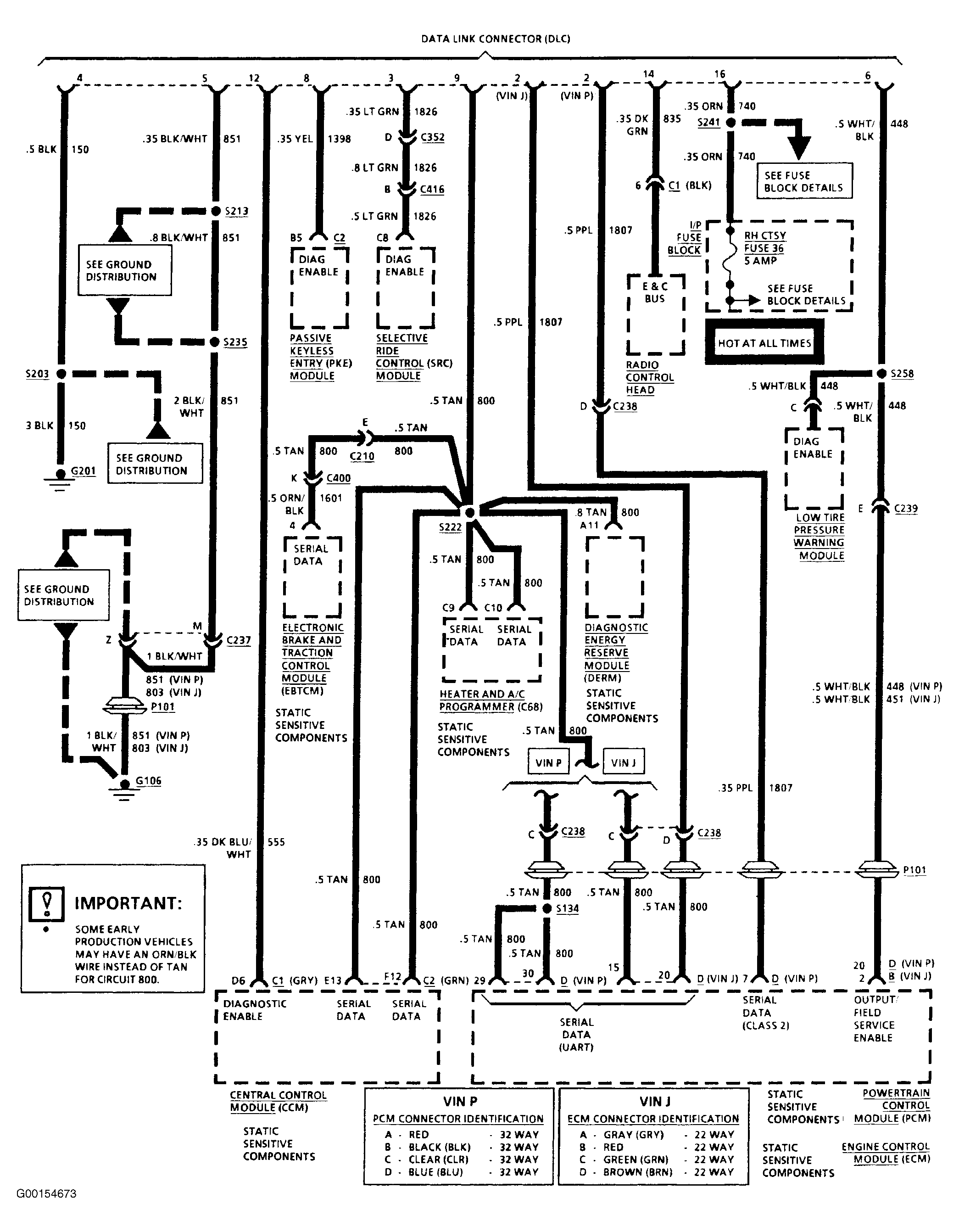

Fig 7: Data Link Communication System Wiring Diagram - 1994 Corvette
G00154673Courtesy of GENERAL MOTORS CORP.

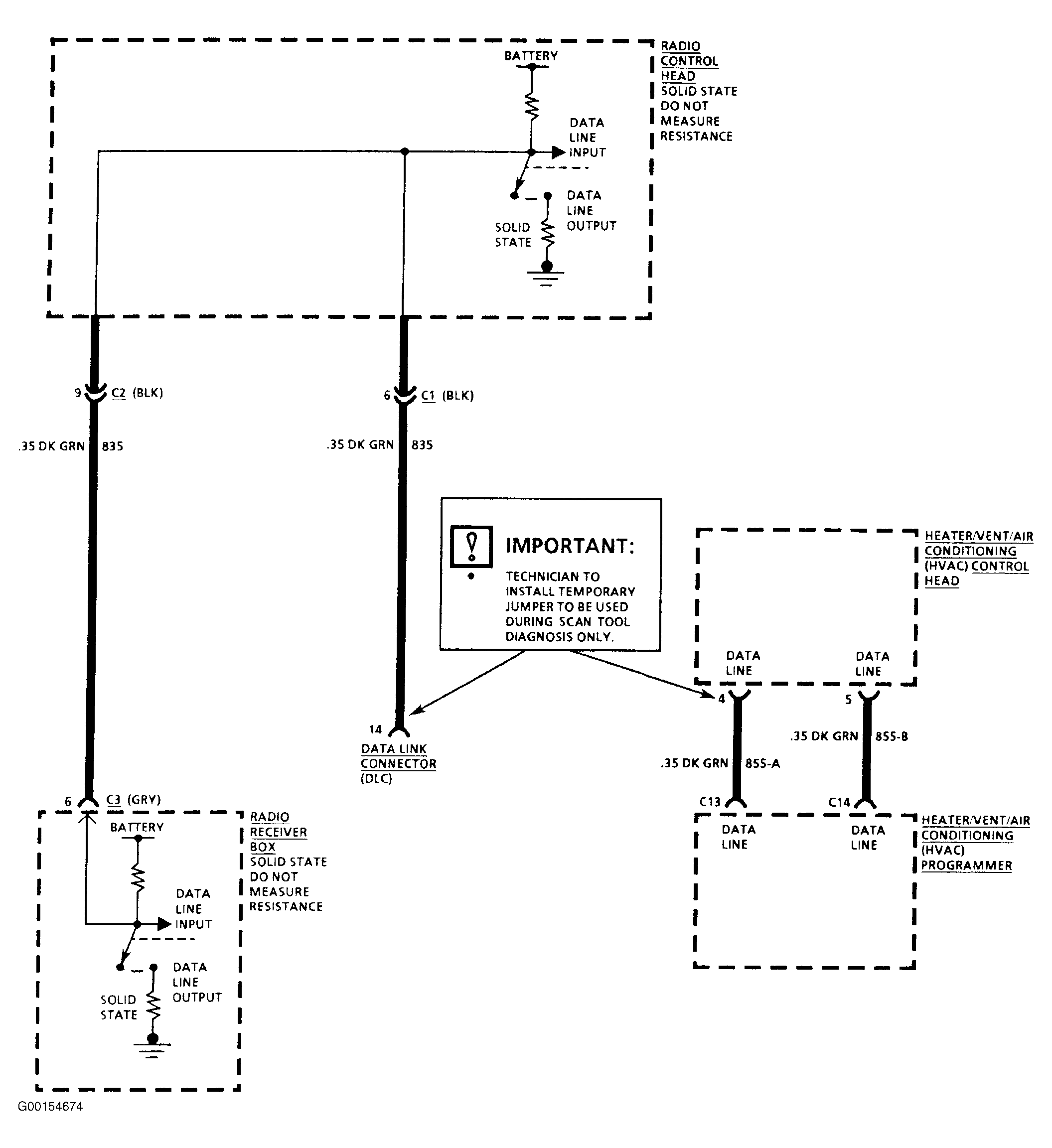

Fig 8: Entertainment & Comfort Data Line Wiring Diagram - 1994 Corvette
G00154674Courtesy of GENERAL MOTORS CORP.
