Diagnostic Aids

Check related harness connectors, including PCM harness. Check for damaged or pushed out terminals.

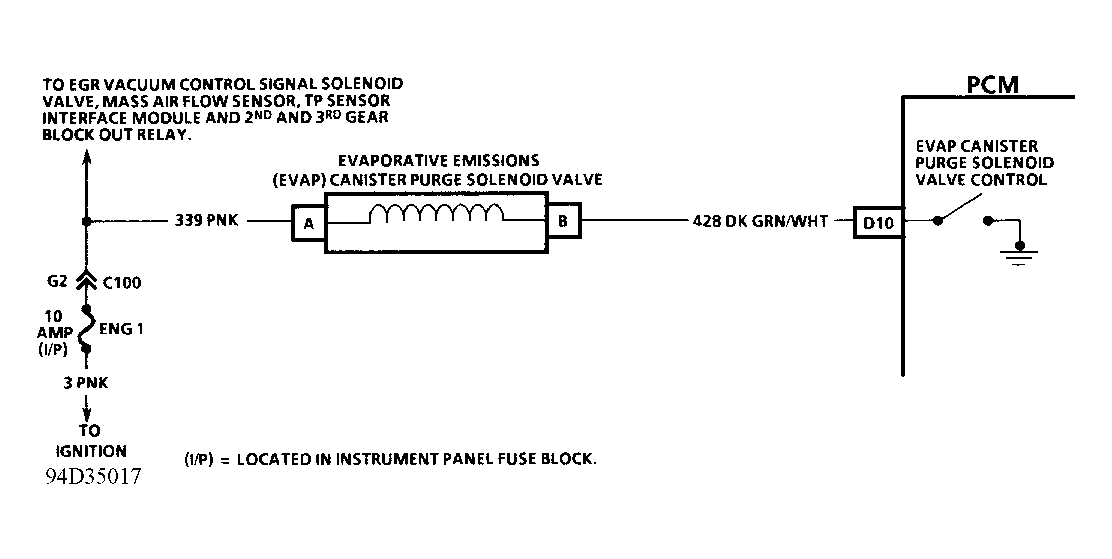

Fig 1: Code 26 Schematic (Corvette) Canister Purge Solenoid
G94D35017

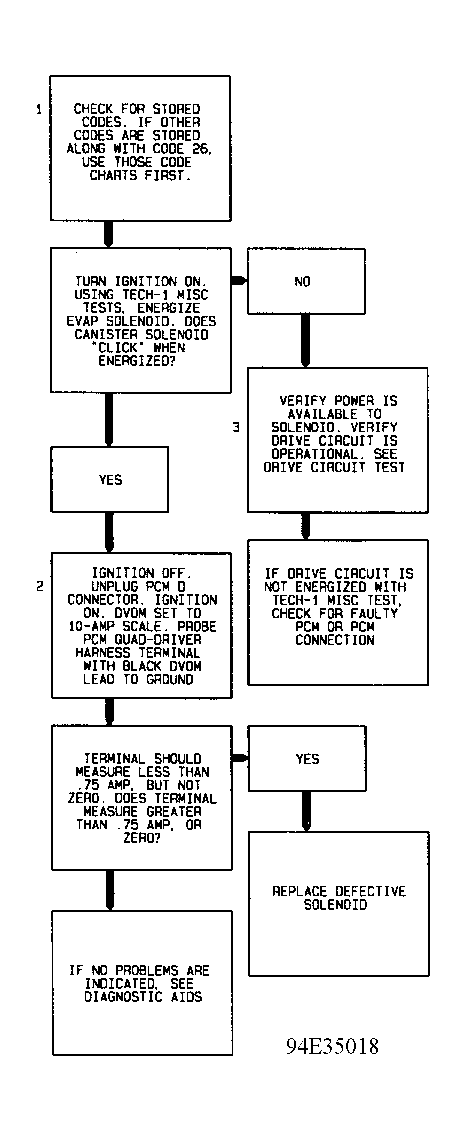

Fig 2: Code 26 Flow Chart (Corvette) Canister Purge Solenoid
G94E35018
