Wiring Diagrams

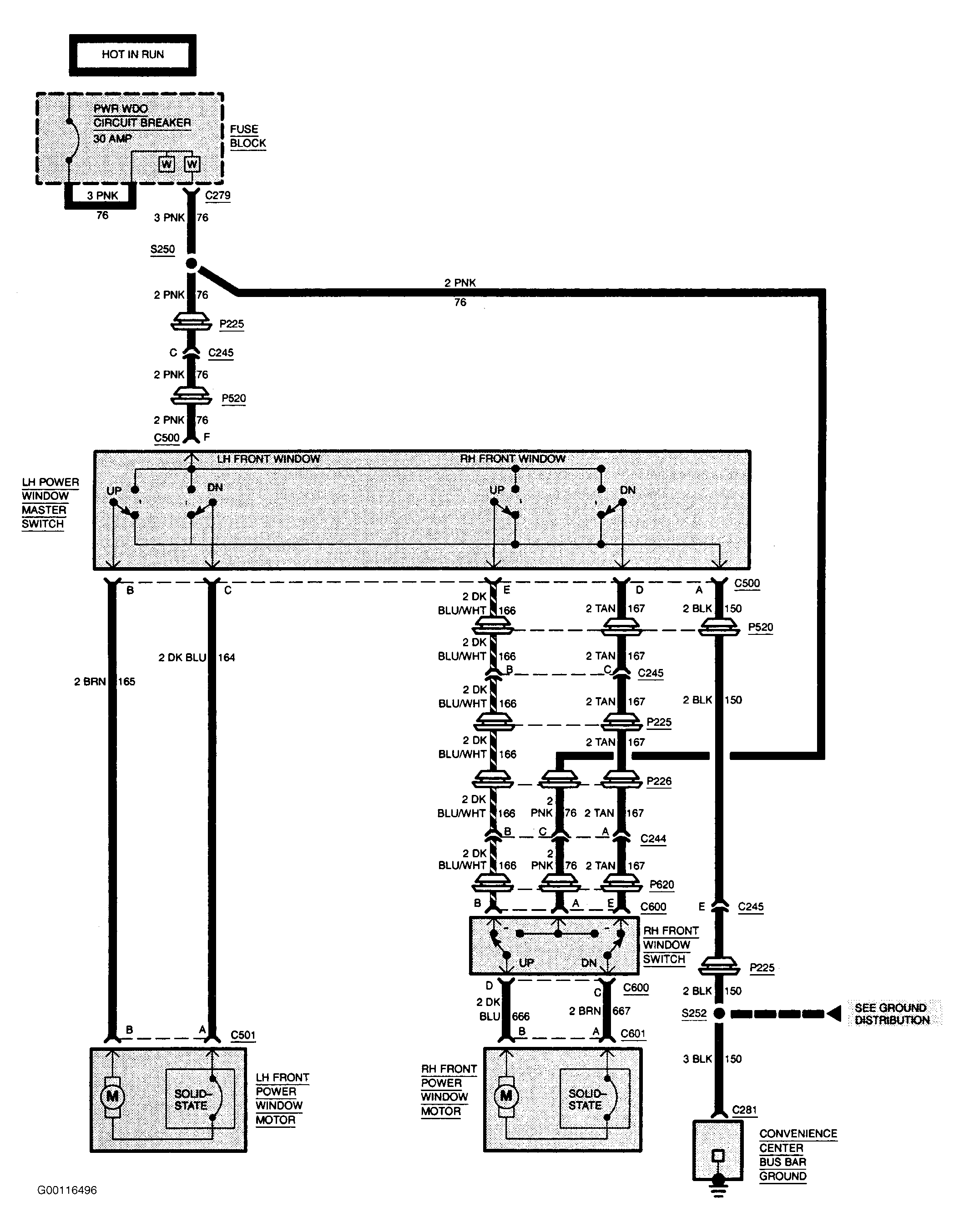

Fig 1: Power Window System Wiring Diagram

G00116496

Courtesy of GENERAL MOTORS CORP.
