2.3L & 3.3L

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 1992 Pontiac Grand Am, 1992 Oldsmobile Achieva, 1992 Buick Skylark, 1991 Pontiac Grand Am, and 1991 Oldsmobile Cutlass Calais. However, it is still accessible from the selected car via links, so may be relevant.
  1. Using a Quick Checker (J-34185) or Digital Volt-Ohmmeter (DVOM), perform the specified tests at cruise control module connector. See Fig 1 and Fig 2 .
  2. If test results are okay, proceed to next step in isolation test chart. If test results are not to specification, proceed to designated test. If all test results are okay, go to SERVO ACTUATION TEST  under TESTING.

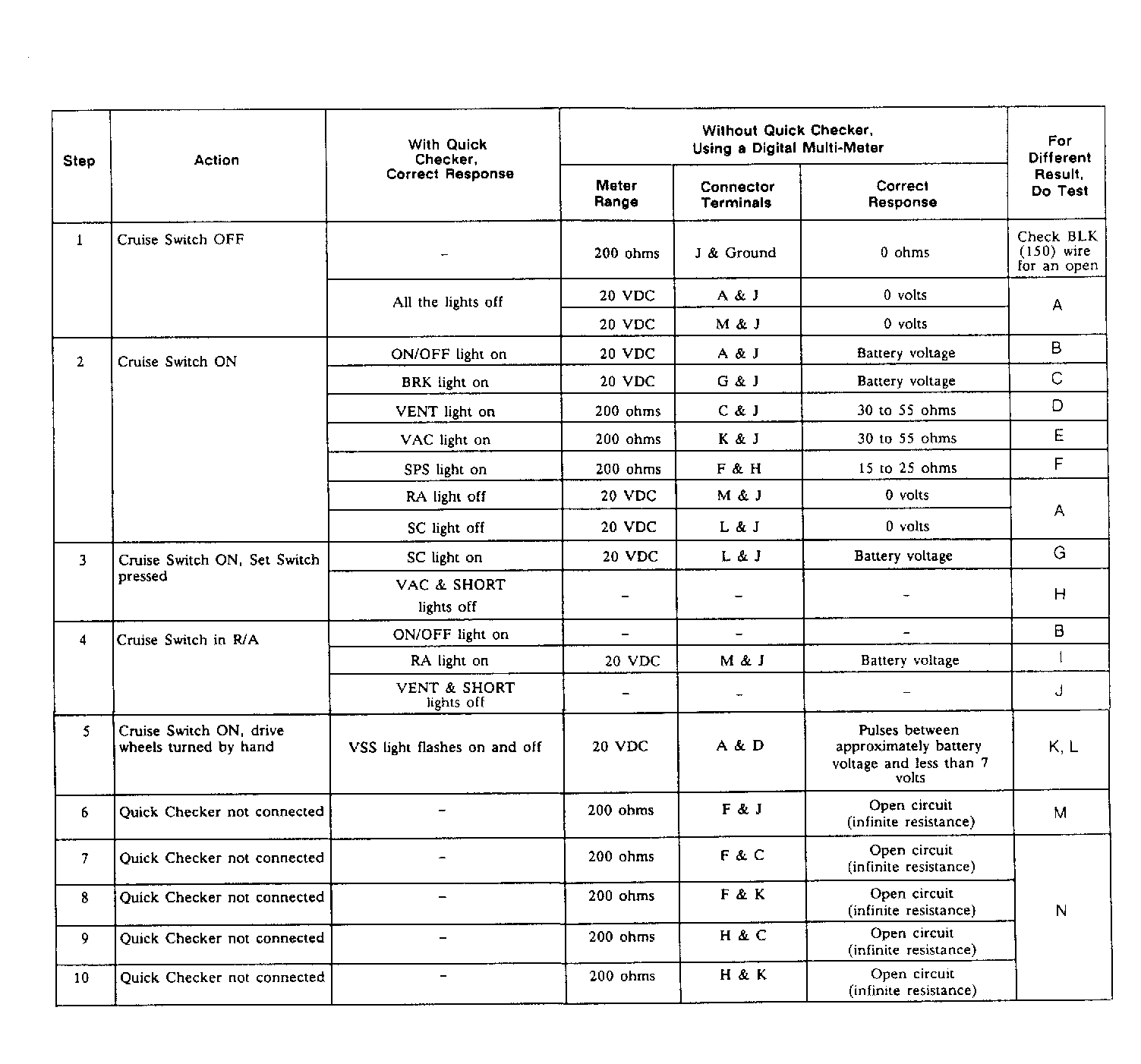

Fig 1: Cruise Control Isolation Test Chart (2.3L & 3.3L)
G92D03707Courtesy of GENERAL MOTORS CORP.
NOTE: Figure 5 is Courtesy of General Motors Corp.
Fig 2: Identifying Cruise Control Module Connector Terminals (2.3L & 3.3L)
G92I03696
