Diagnostic Aids

Code 66 sets when signal voltage falls outside normal sensor range and is not due to a A/C system problem. If problem is intermittent, check for opens or shorts in harness and poor connections. If wiring is okay, replace pressure sensor. If code resets, replace ECM.

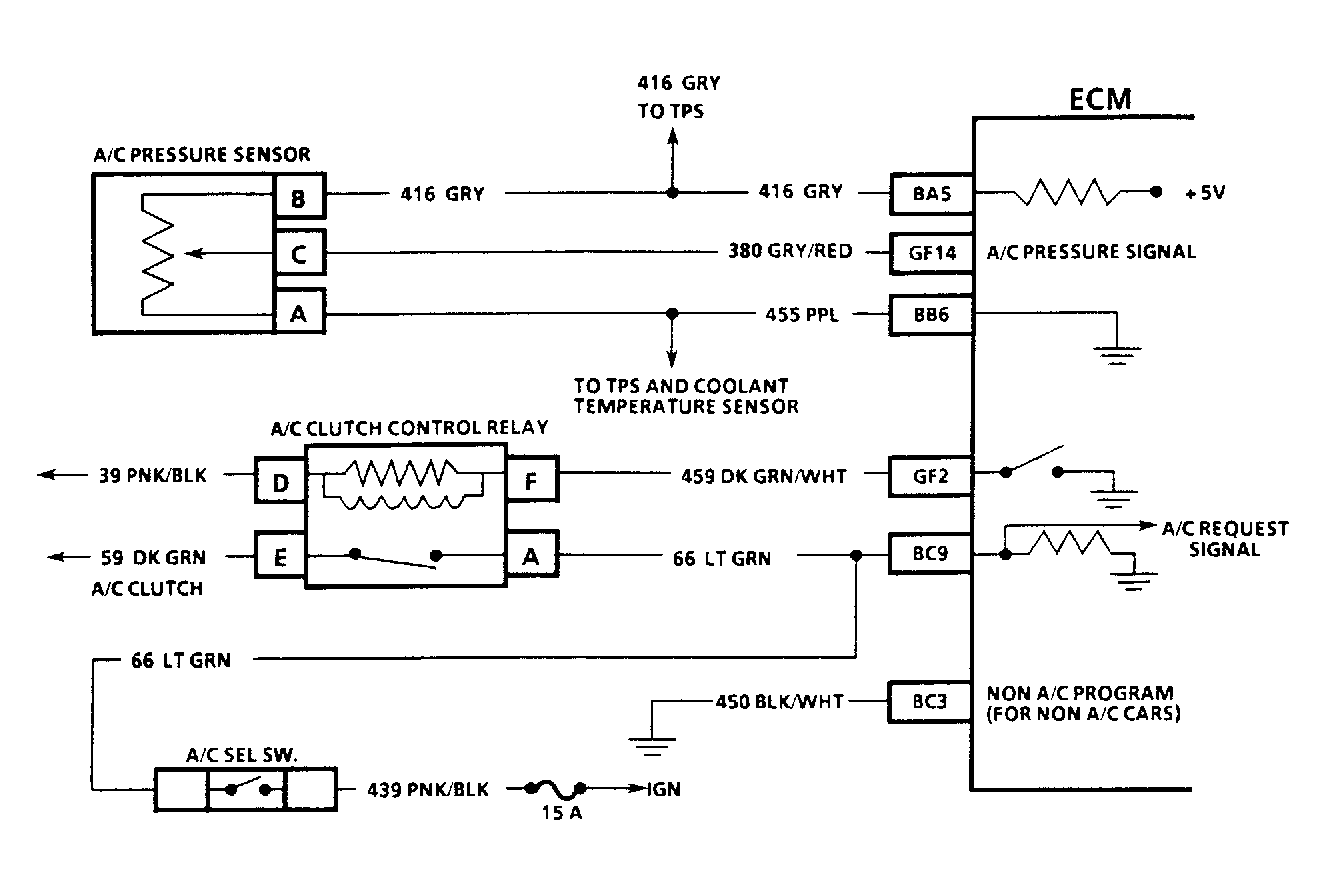

Fig 1: Code 66, Schematic, A/C Pressure Sens, "L" Body

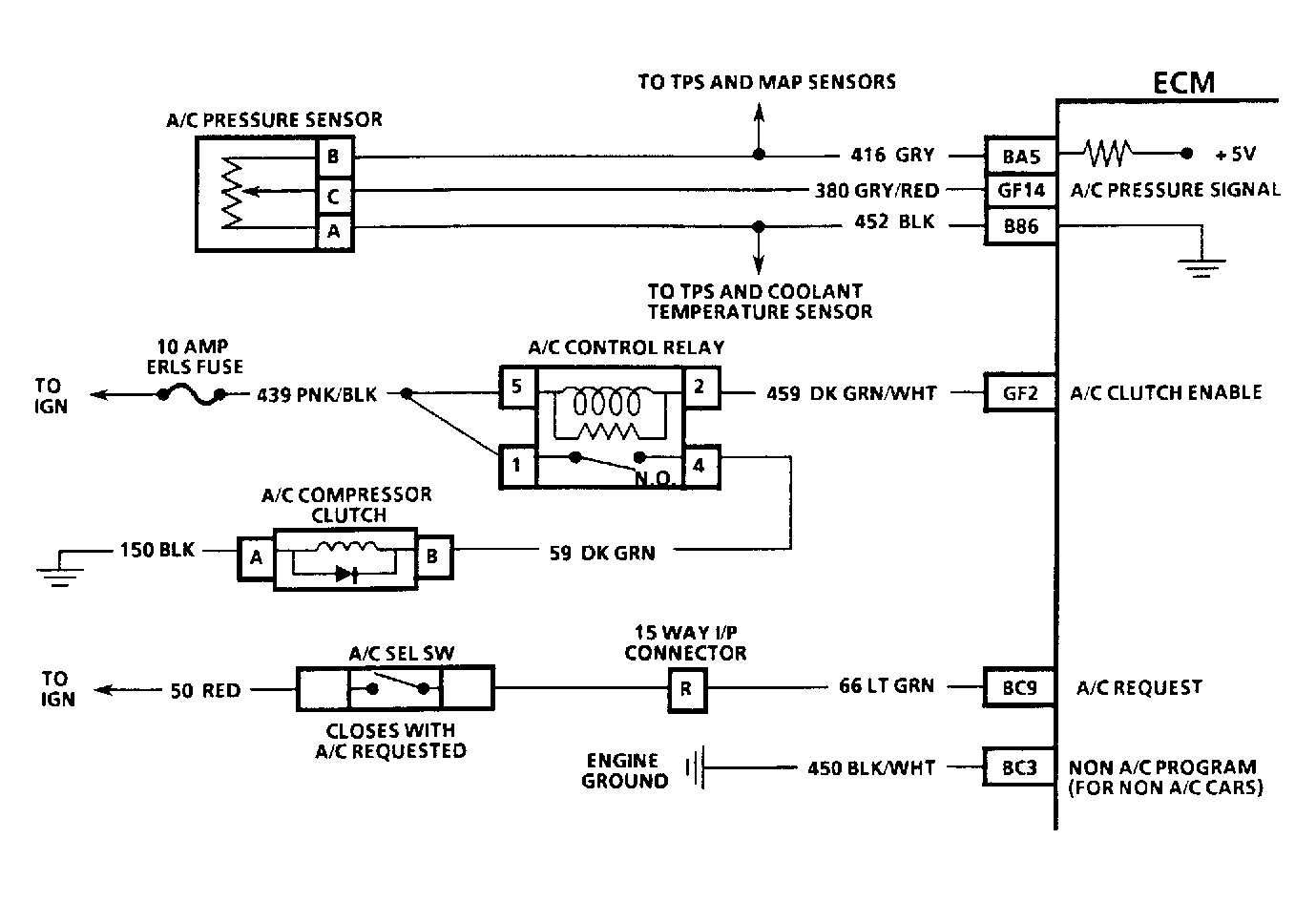

Fig 2: Code 66, Schematic, A/C Pressure Sens, "N" Body

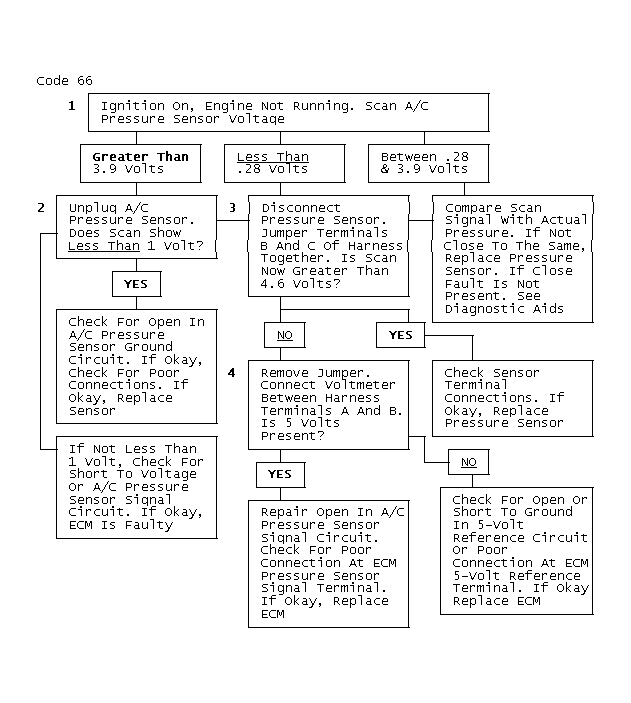

Fig 3: Code 66, Flow Chart, A/C Pressure Sens

Fig 4: Code 66
