Test A: None Of The Power Windows Operate

If none of the power windows operate, see Fig 1 .

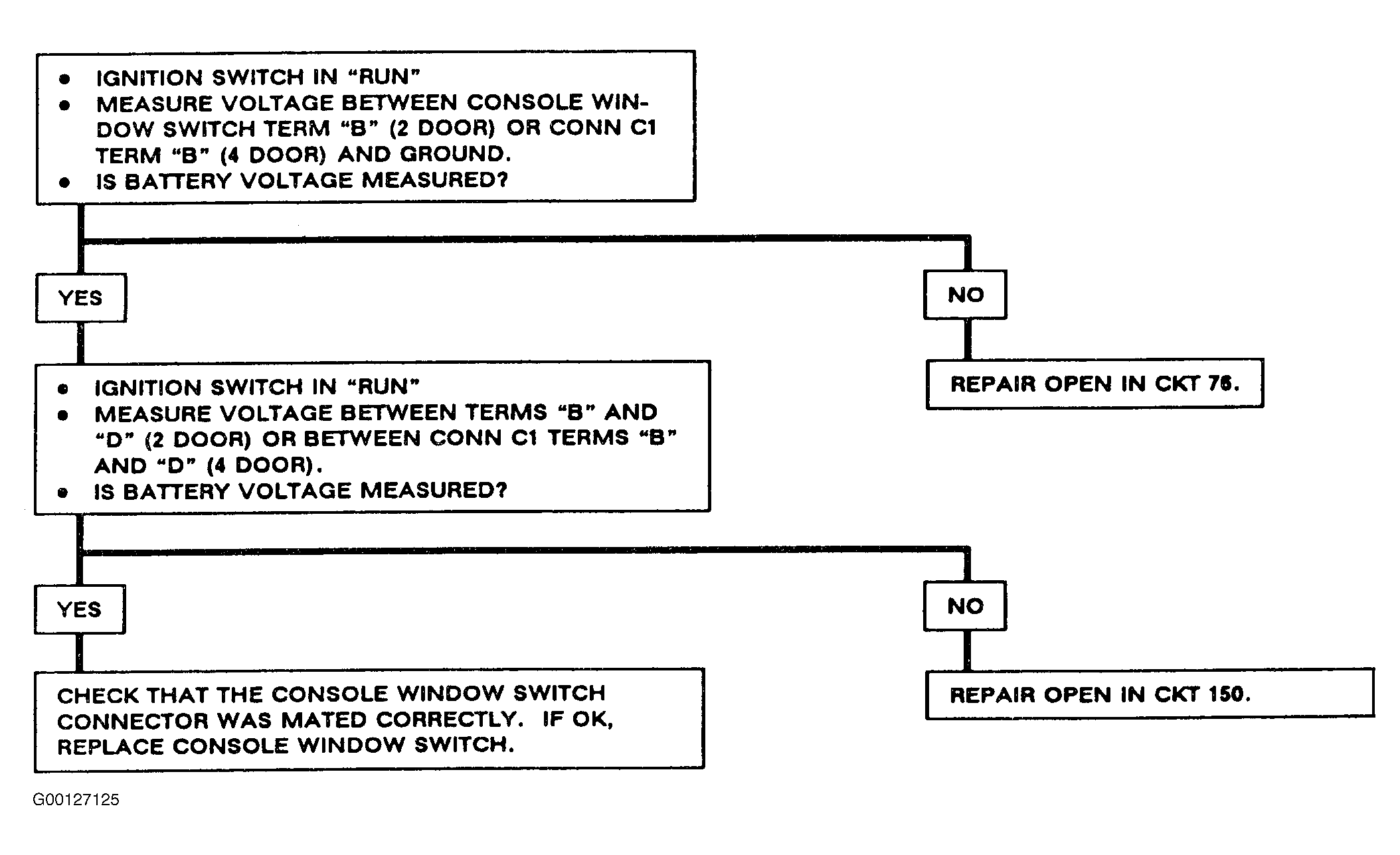

Fig 1: Test A: None Of The Power Windows Operate

G00127125

Courtesy of GENERAL MOTORS CORP.
