Home >> Chevrolet >> 1992 >> Beretta Base, 2.2 4, Standard >> Repair and Diagnosis (Single Page) >> Accessories & Equipment >> Cruise Control Systems >> Testing >> Notes

Cruise Control Systems: Testing: Notes

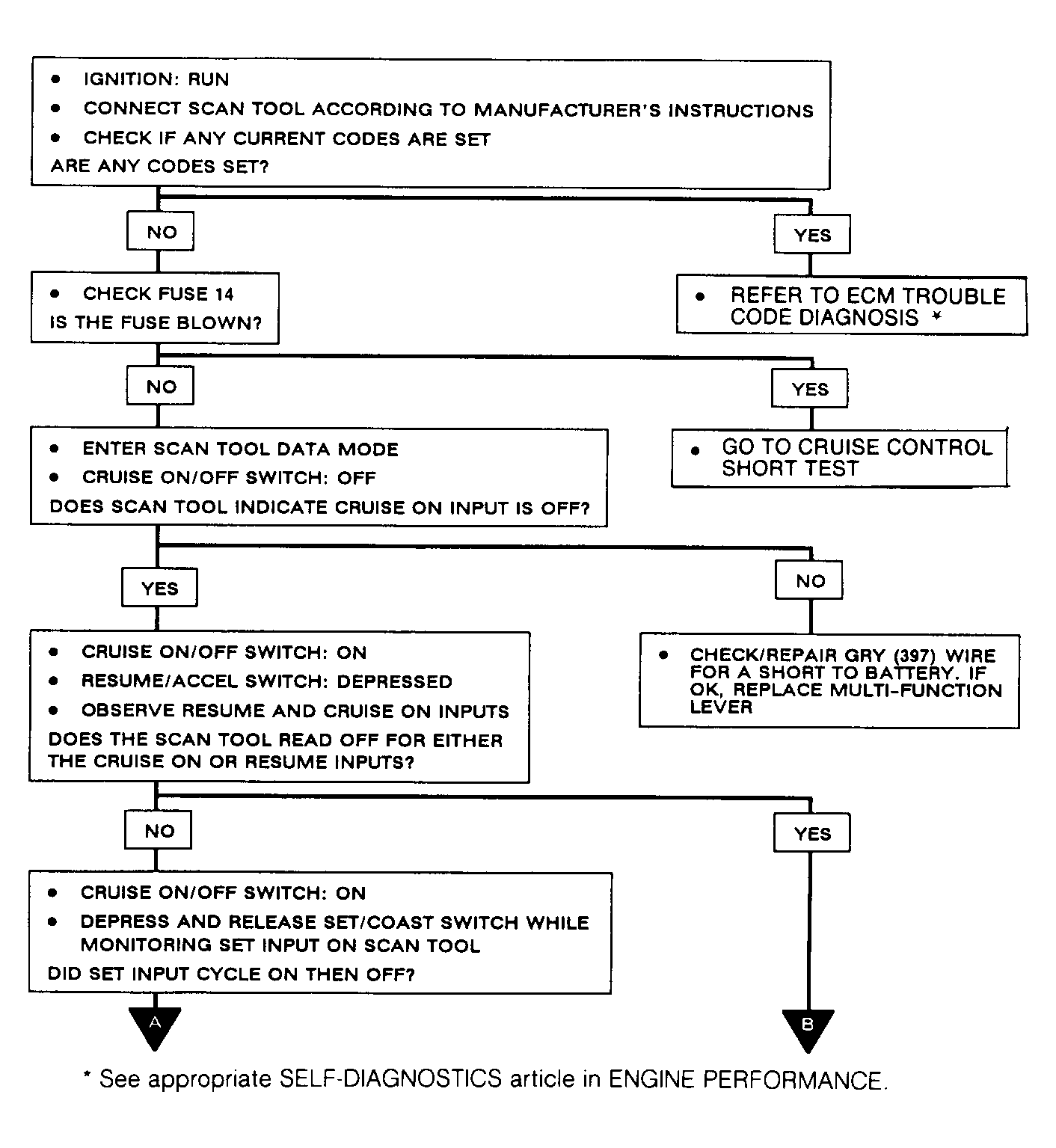

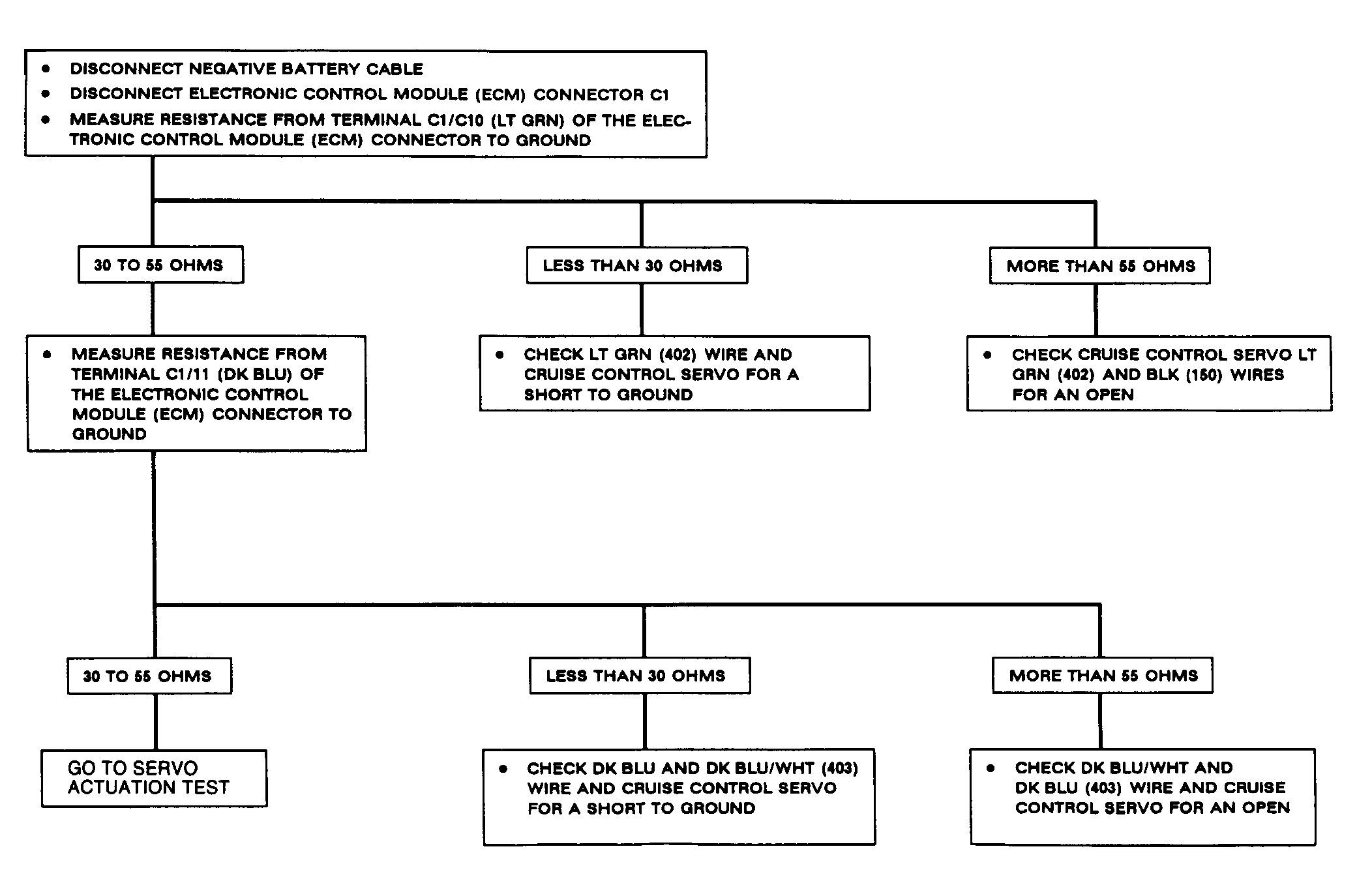

NOTE: For diagnosis and testing of all models, except VIN G, use ISOLATION TEST  procedure. For 1991 VIN G, refer to Figure through Figure , SYSTEM DIAGNOSIS (VIN G)  . Cruise control servo and module connectors are stamped with terminal letters.
