Test D: Left Rear Window Switch Does Not Operate From Left Rear Window Switch Or From Console Window Switch

If left rear window switch does not operate from left rear window switch or from console window switch, see Fig 1 .

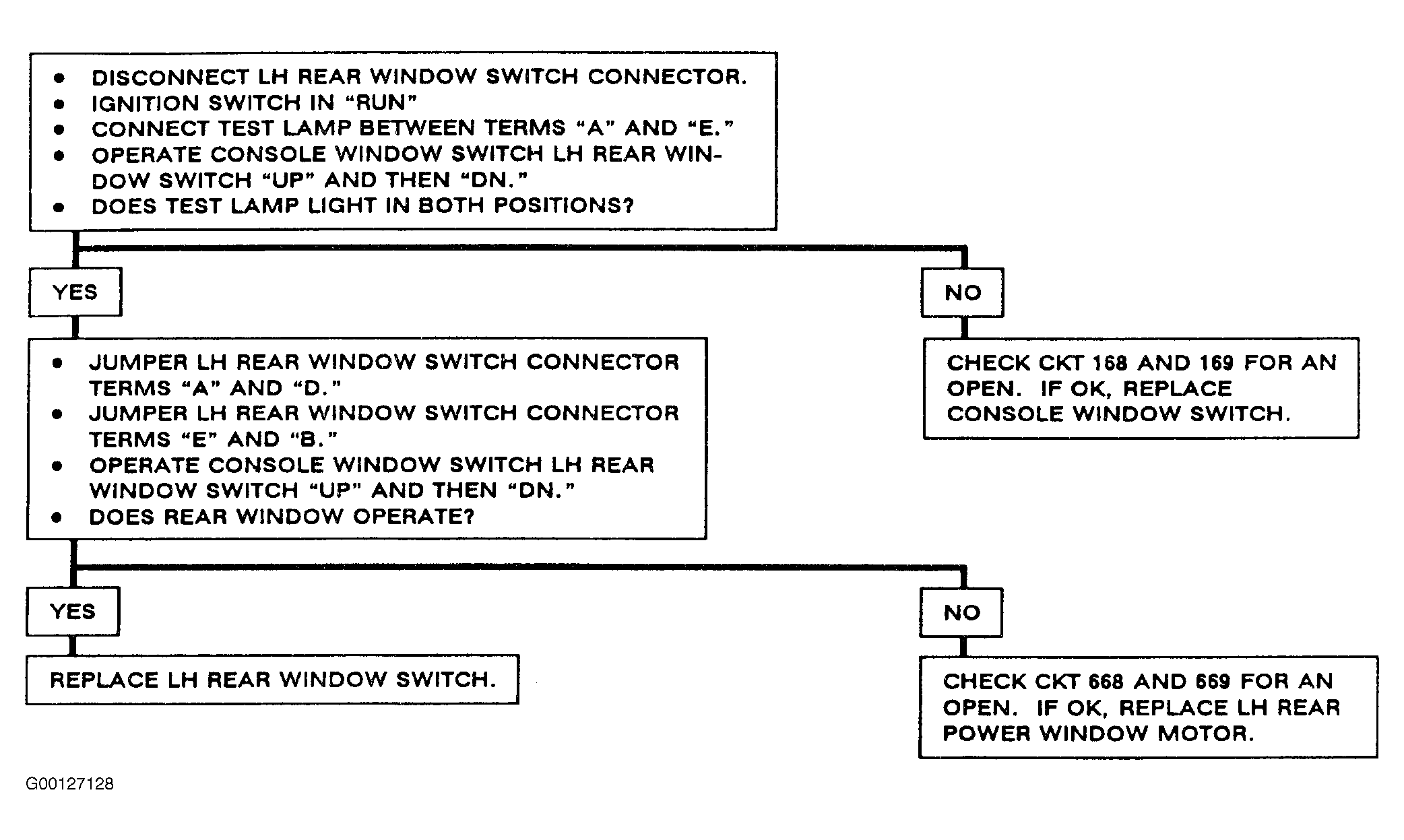

Fig 1: Test D: Left Rear Window Does Not Operate From Left Rear Window Switch Or From Console Window Switch
G00127128Courtesy of GENERAL MOTORS CORP.
