Wiring Diagrams

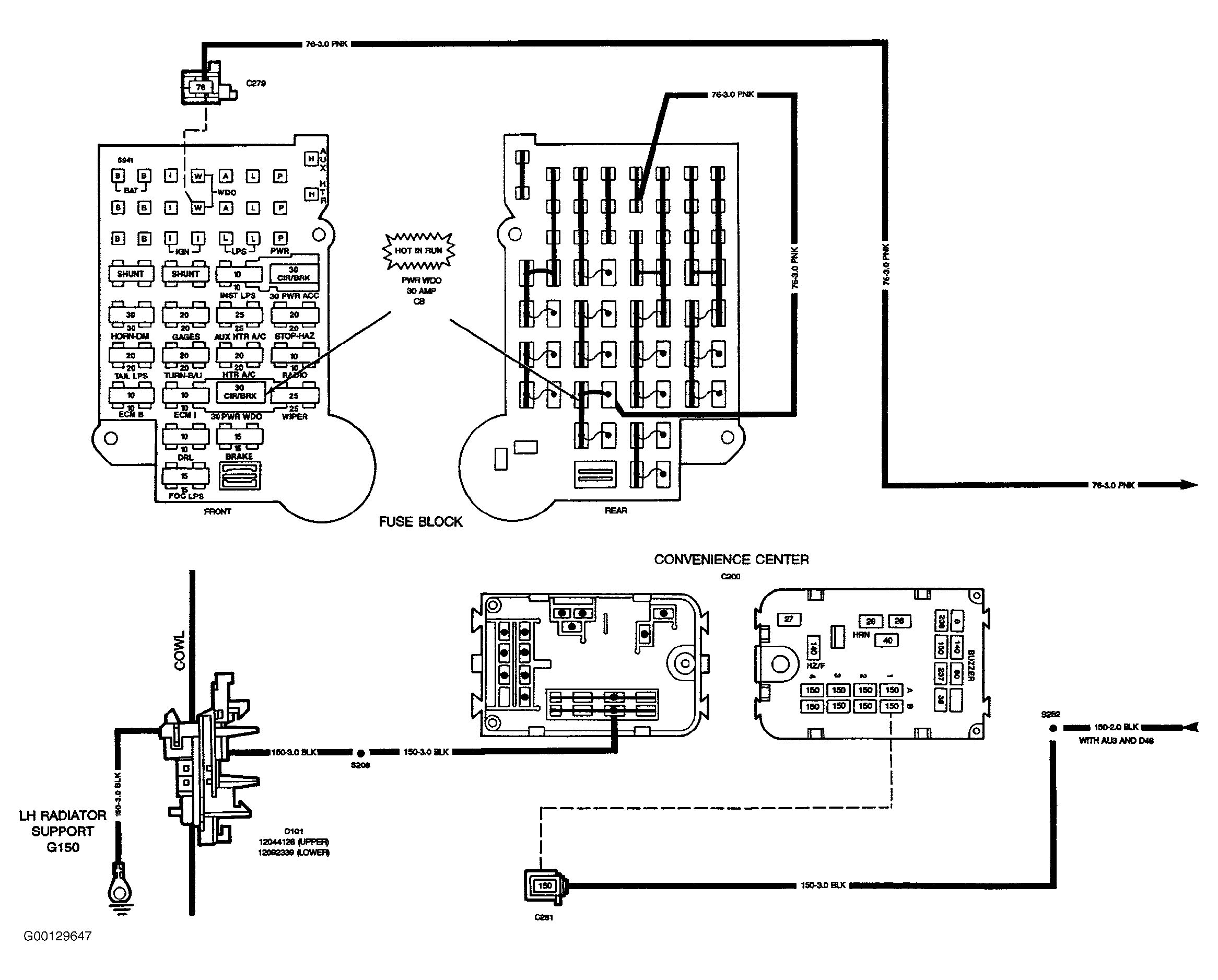

Fig 1: Power Window Wiring Diagram (1 Of 2)

G00129647

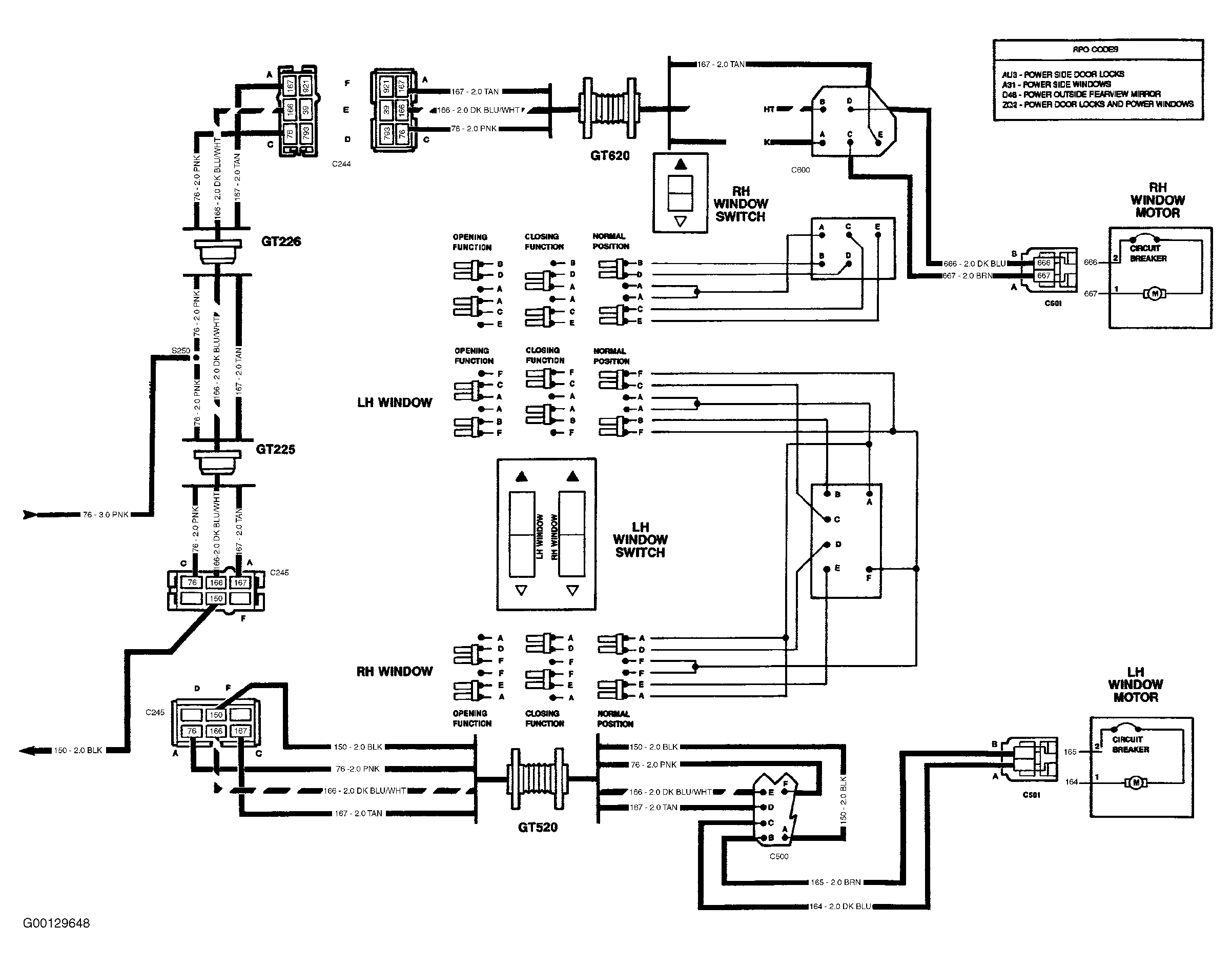

Fig 2: Power Window Wiring Diagram (2 Of 2)

G00129648
