Installation (Front Doors)

  1. Install inside remote handle to module assembly by placing tabs on handle into slots in module and sliding forward.
  2. Install rod to handle.
  3. Install rivet using 3/16 x 1/4 inch peel type rivets.
  4. Install water deflector. See WATER DEFLECTOR  .
  5. Install trim panel.

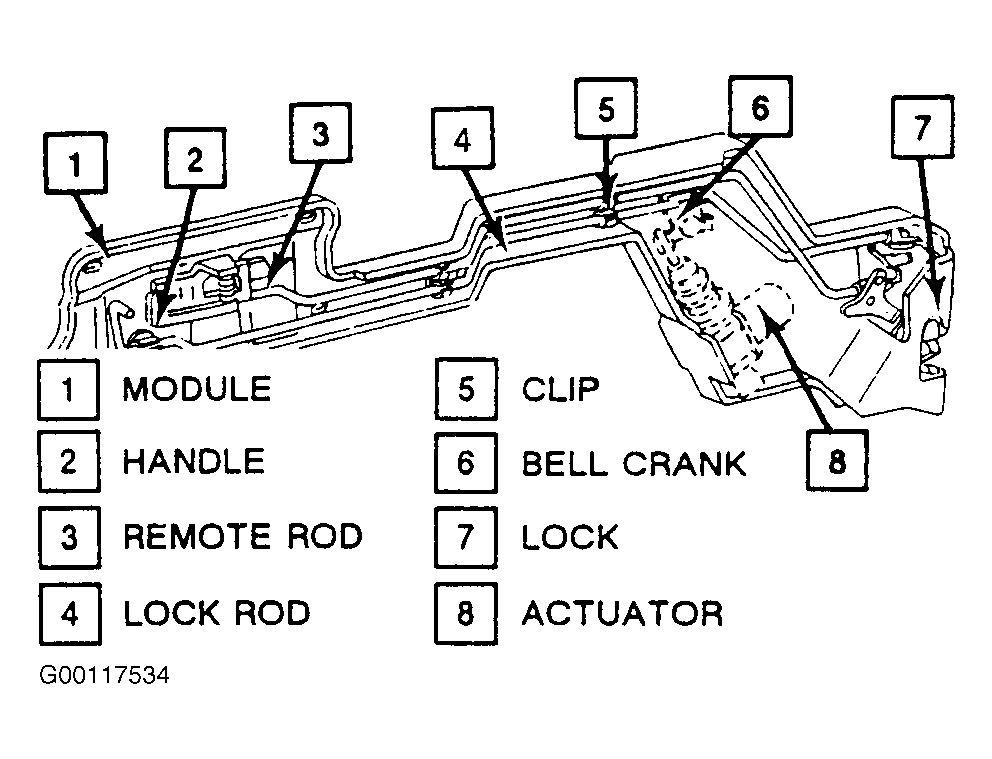

Fig 1: Identifying Front Door Lock Module Assembly(Corsica)
G00117534Courtesy of GENERAL MOTORS CORP.

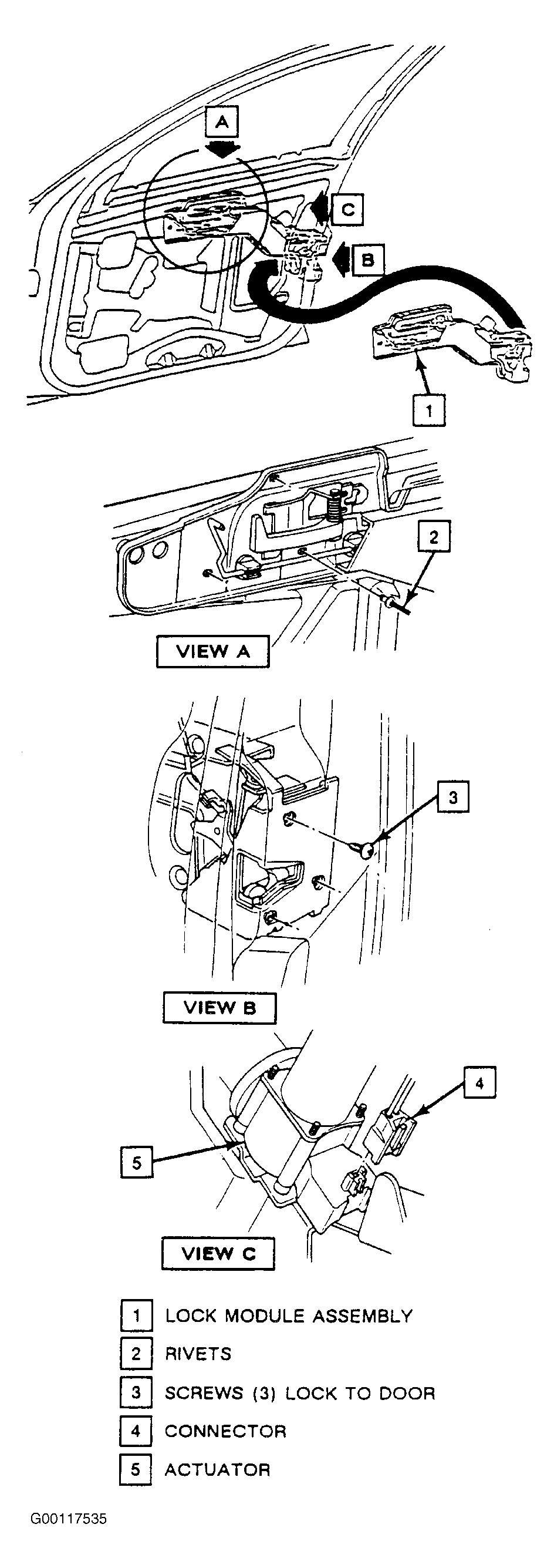

Fig 2: Identifying Door Lock Module (Corsica)
G00117535Courtesy of GENERAL MOTORS CORP.

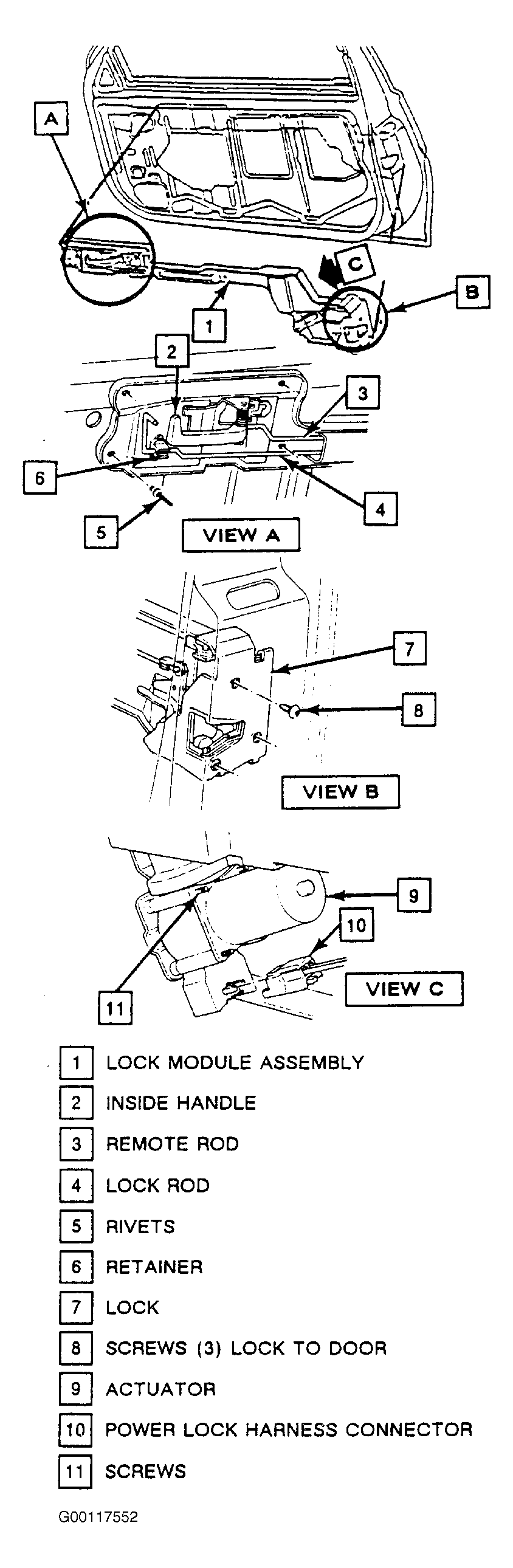

Fig 3: Identifying Door Lock Module Assembly (Beretta)
G00117552Courtesy of GENERAL MOTORS CORP.
