Diagnostic Aids

The "Scan" tester does not have the ability to help diagnose a Code 42 problem. See INTERMITTENTS in the TESTS W/O CODES article in this section.

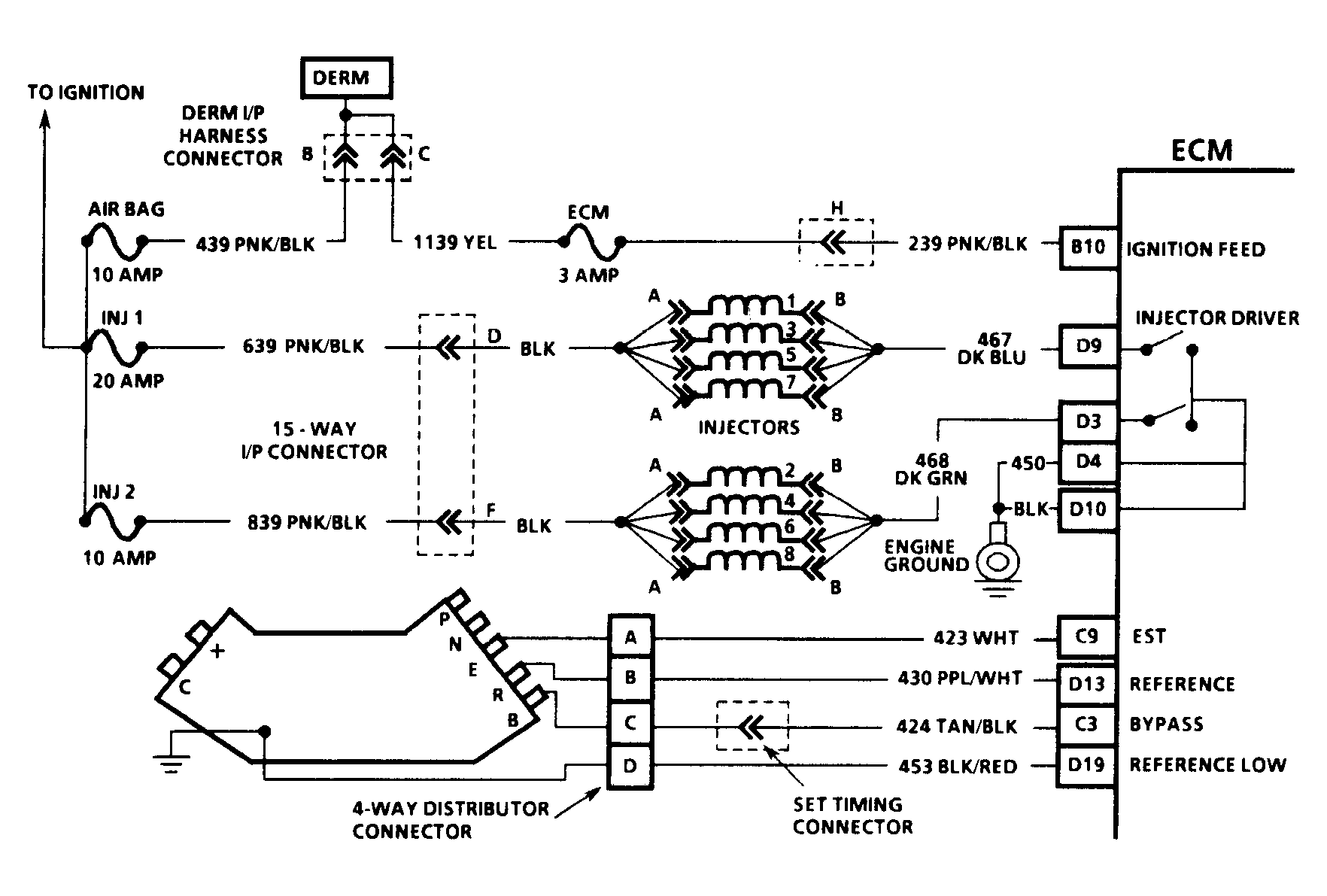

Fig 1: Code 42, Schematic, EST Circuit Open or Grounded

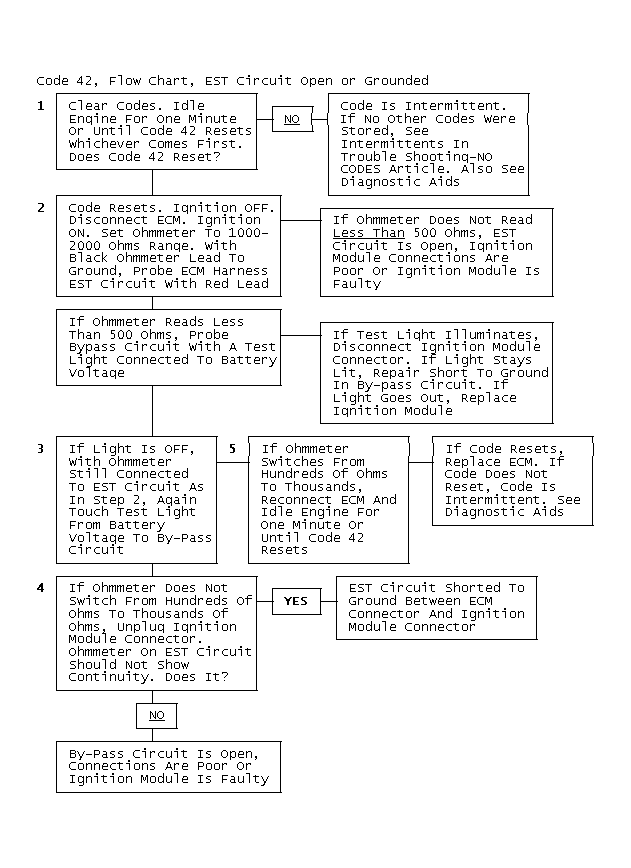

Fig 2: Code 42, Flow Chart, EST Circuit Open or Grounded
