Note on Intermittents

WARNING: This page is about a different car, the 1990 Cadillac Fleetwood and 1990 Cadillac DeVille. However, it is still accessible from the selected car via links, so may be relevant.

If intermittent Code F11 is being set, manipulate related wiring while observing BCM data parameter P.2.7. If failure is induced, reading will jump from its normal value to a reading outside range of 16°F to 408°F (-9°C to 209°C).

Fig 1: Code F11: Circuit Diagram
G90F17272

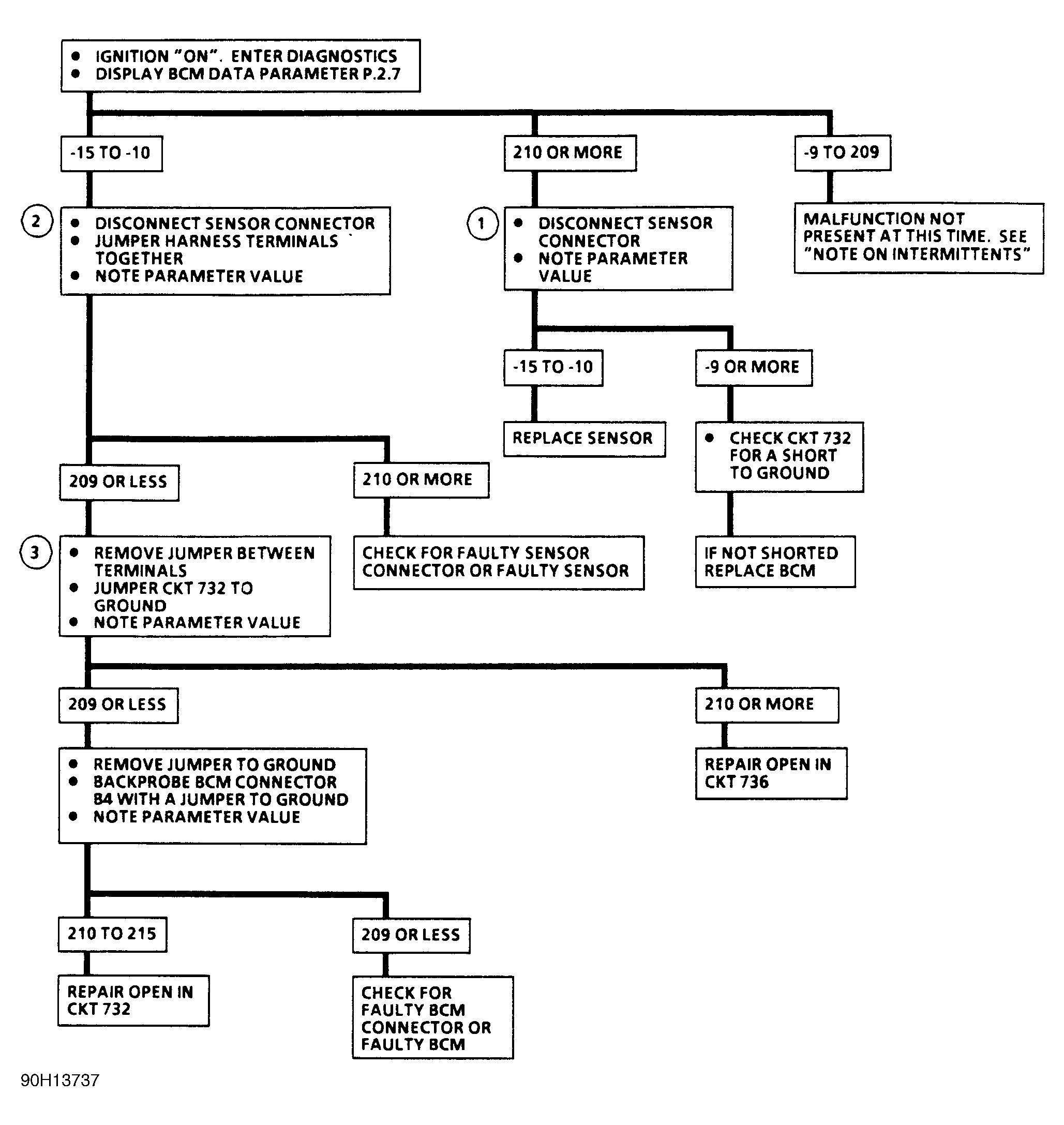

Fig 2: Code F11: Flow Chart
G90H13737
