Sprint Base, 2D Hatchback, Standard
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Feedback Carburetor System
>>
Diagnostic Charts
Diagnostic Charts

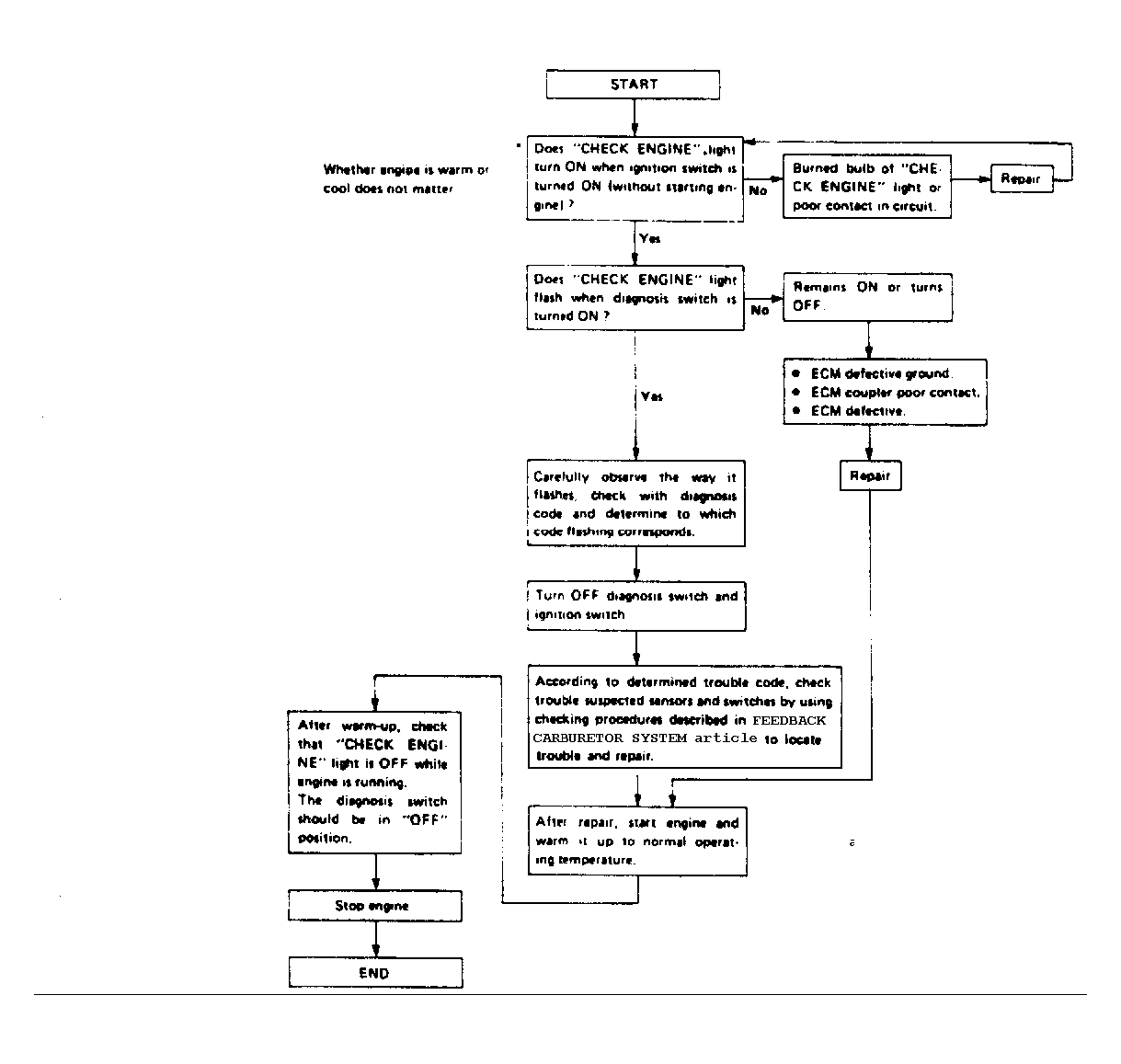

Fig 1: Diagnosis Flow Chart
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
